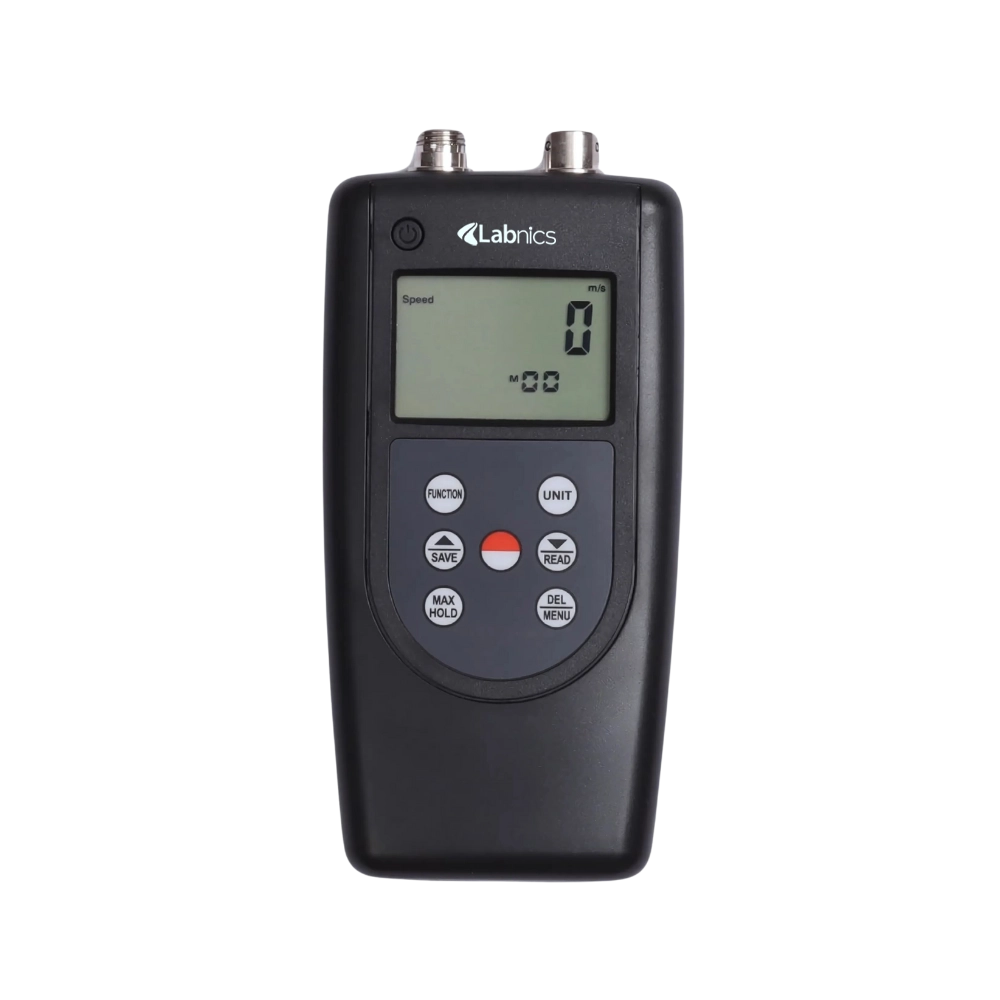

Anemometer NAM-100 measures air velocity from 0.4 to 45.0 m/s, providing accurate readings. It operates effectively within a temperature range of 0℃ to 50℃ for optimal performance. This multifunctional unit offers versatile measurement options to accommodate different needs. It includes a precision thermistor that measures ambient temperature for reliable results. Our unit features a 4-digit LCD for clear and easy data monitoring.
$1,413.00
Specifications
| Measurement Units | Air Velocity: m/s, km/h, ft/min, knots Air Flow: CMM (m³/min); CFM (ft³/min) Beaufort Scale: Force Wave Height: m Temp: ℃ & F |
| Air Velocity Measurement Range | 0.4 to 45.0 m/s |
| Air Velocity Resolution | 0.1 |
| Air Velocity Accuracy | ± (2%n + 0.5 m/s) |
| Air Flow Measurement Range | 0 to 9999 CMM |
| Air Flow Resolution | 0.001 to 1 |
| Air Flow Accuracy | ± (2%n + 0.5 m³/min) |
| Beaufort Scale Measurement Range | 0 to 12 |
| Beaufort Scale Resolution | 0.1 |
| Beaufort Scale Accuracy | ± 0.5 |
| Wave Height Measurement Range | 0 to 14 m |
| Wave Height Resolution | 0.1 |
| Wave Height Accuracy | ± 0.1 |
| Air Temperature Measurement Range | -10 to 60°C |
| Air Temperature Resolution | 0.1°C |
| Air Temperature Accuracy | 0.5°C |
| Operating Temperature | 32℉ to 122℉ (0℃ to 50℃) |
| Operating Humidity | Max. 80% RH |
| Sampling Rate | Reading per second approx. |
| Sensor Head | 72 mm Diameter |
| Sensors | Air velocity/flow sensor: Conventional angled vane arms with low-friction ball bearing Temperature sensor: Precision thermistor |
| Automatic Power Off | 0 to 9 minutes set by users |
| Data Output | RS 232 C serial interface |
| Display | 0.5 |
| Power | 4 × 1.5AAA batteries |
| Dimensions | 156 × 67 × 28 mm (6.1 × 2.6 × 1.1 |
| Weight | 260g (including batteries & probe) |
Features
Applications

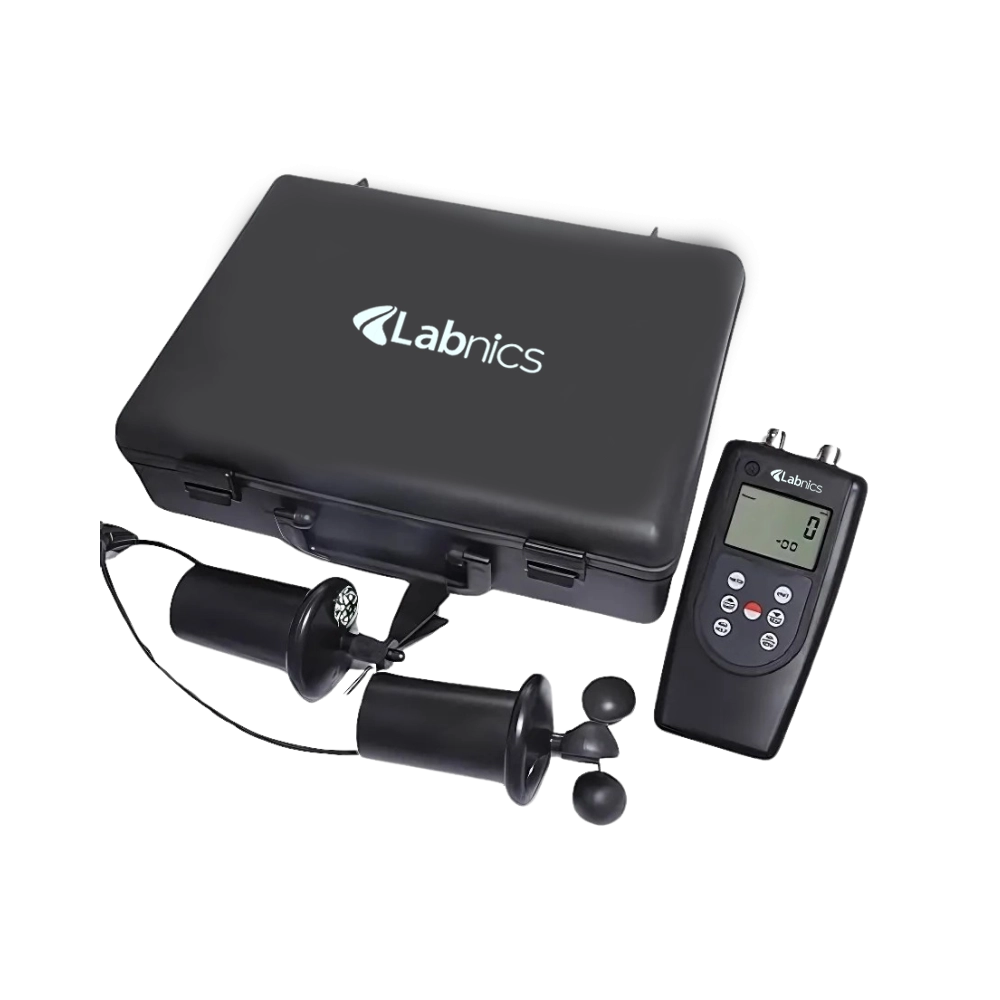

Standard Accessories
Operational Manual Carrying case Sensor probe
Optional Accessories
Cable + Software for RS232C
Ask Expert
FAQ for Anemometer NAM-100
1: hat makes the Anemometer NAM-100 ideal for accurate airflow measurement?
The Anemometer NAM-100 features a low-friction ball-bearing design and a precision thermistor, ensuring reliable measurement of air velocity and ambient temperature across a wide range of conditions.
2: Can the Anemometer NAM-100 store previous readings for later analysis?
Yes, the Anemometer NAM-100 can store up to 24 groups of measurement data, making it easier to track, compare, and analyze airflow changes over time.
3: Is the Anemometer NAM-100 suitable for both indoor and outdoor environments?
Our Anemometer NAM-100 operates effectively within a temperature range of 0°C to 50°C, making it suitable for both indoor HVAC assessments and outdoor meteorological studies.
4: What should I do if the Anemometer NAM-100 does not power on?
First, check if the batteries in the Anemometer NAM-100 are properly installed and have sufficient charge. Ensure the battery compartment is clean and the contacts are not corroded. If the device still doesn’t power on, try replacing the batteries and inspect it for any visible signs of damage.
5: Does the Anemometer NAM-100 have a power-saving feature?
Yes, the Anemometer NAM-100 features an automatic power-off function that conserves battery life by shutting down the device after a period of inactivity, ensuring efficient energy usage during extended field operations.
Labnics Anemometer measures various air-related parameters for comprehensive environmental analysis. They offer versatile measurement options for diverse needs. They are designed with an automatic power-off function to save energy and extend battery life. Our Anemometer feature a low-friction design that enhances accuracy and efficiency in performance. They include a digital display with a clear LCD, ensuring easy and accurate data reading.
