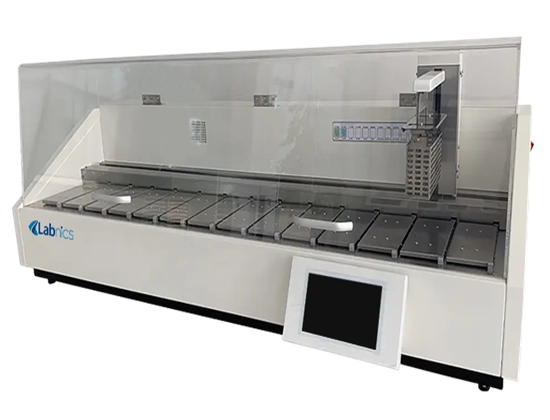

Automated Tissue Processor NATP-100

Automated Tissue Processor NATP-100 is a benchtop linear closed tissue processor, a compact instrument designed with latest technology for complete automatic dehydration and infiltration of biological samples, up to final paraffin bath. All the reagents and paraffin containers are closed to prevent evaporation. Ion filter prevent solvent, odors and pollution. It can be programmed for immediate or delayed start; immersion time can be set from 1 min to 99 hours and 59 minutes.

---

$7,875.00

Buy Now Catalog

Specifications

Programmable infiltration time for station	From 1 min. to 99 h 59 min.
Paraffin temperature range	From 50°C to 75°C increments 1°C
Agitation (Basket shaking）	4 times every 20 min.
Total samples capacity	150 (75 each basket)
Station capacity	1500ml
Delayed start	99h 99 min.
Drain time	0 sec. to 99 sec.
Nominal supply voltage	220 V / 50 Hz 110 V / 60 Hz
Maximum power draw	1000 V/A
Dimensions	140×50×55 cm
Gross weight	142 Kg

Features

• Number of Stations: 14 Number of Reagent Stations: 10 Number of Paraffin Stations: 4 Number of storable programs: 6 Temperatures are regulated via an electronic thermostat with a microprocessor. User can set up to 6 different programs. Reagent and paraffin containers are closed to prevent evaporation

Applications

• Automated Tissue Processor is used to automate the staining of peripheral blood and other hematologic smears across cytology, histology, immunology, microbiology, biotechnology, fisheries, research and medical institutes, pharmaceuticals, etc.

Standard Accessories

1 Power wire 2 pcs fuse

Optional Accessories

UPS
