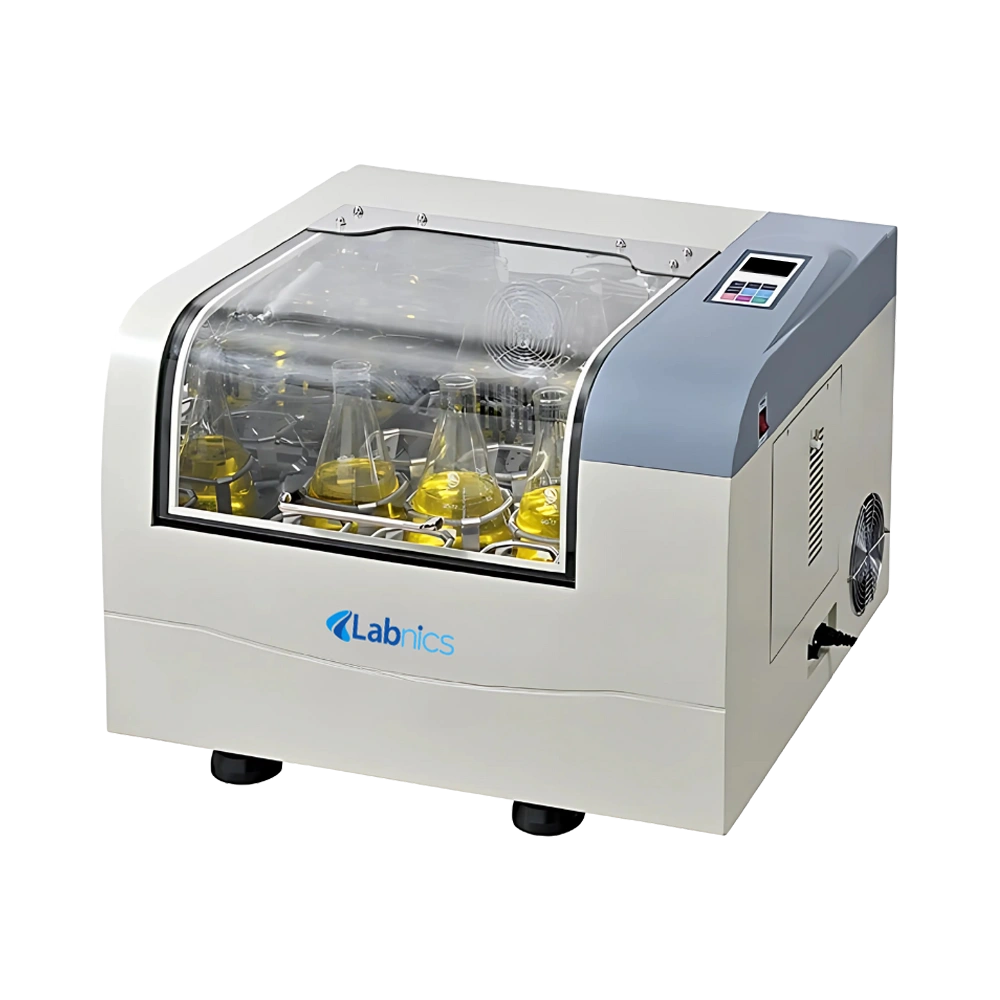

Benchtop Incubator Shaker NBIS-504 provides an internal capacity of 83 liters with a usable height of 340 mm. It delivers both rotary and reciprocating motion with adjustable speeds from 30 to 300 rpm. This unit maintains temperature control with high precision of ±0.1°C. It employs forced circulation convection for uniform temperature distribution. Our shaker includes a large LCD display for clear and convenient multi-parameter monitoring.
| Door opening method |
Door upward |
| Capacity |
83 liters |
| Internal usable height |
340 mm |
| Opening height |
990 mm |
| Maximum loading capacity |
2000ml×4
1000ml×6
500ml×9
250ml×16 |
| Temperature range |
4 to 60°C (Ambient temp-15°C, minimum- 4°C) |
| Temperature accuracy |
±0.1°C |
| Temperature uniformity |
≤±1.0°C at 37°C |
| Ambient temperature range |
5 to 35°C |
| Temperature editing |
Repeat/Pace/8-segment curve editing |
| Rotation way |
Rotary/ reciprocating switchable |
| Rotation speed |
30 to 300 rpm (600 rpm) |
| Rotation accuracy |
±1 rpm |
| Throw |
0 to 50mm (stepless adjustable) |
| Timing range |
0 to 999.59H |
| Display |
LCD |
| Control |
P.I.D microcomputer |
| Circulation |
Forced circulation convection |
| Drive mode |
Single-axis balanced drive |
| Tray material/Flask clamp/Chamber material |
Stainless steel type 304 |
| Bearings |
Original imported double row bearings |
| Compressor |
Variable frequency compressor |
| Clamp types |
Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate, etc |
| Heating power |
400W |
| Motor power |
80W |
| Whole machine power |
706W |
| Power supply |
220V±10%, 50/60Hz |
| Tray size |
400×380mm |
| Internal dimension |
490×470×360mm |
| External dimension |
778×685×600mm |
| Net weight |
83 kg |
FAQ for Benchtop Incubator Shaker NBIS-504
1: Is the shaking uniform throughout the chamber?
The Benchtop Incubator Shaker uses forced circulation convection and a single-axis balanced drive, which delivers consistent and uniform shaking performance. Low vibration and noise levels protect samples while maintaining stability.
2: What safety features are included in the Benchtop Incubator Shaker NBIS-504?
Our Benchtop Incubator Shaker includes personnel protection through leakage and overcurrent detection, cutting off power automatically if electrical abnormalities occur. It also features sample protection with a sensitive speed monitoring system to prevent damage in case of uncontrolled rotation.
3: How should the glass door be maintained?
Our Benchtop Incubator Shaker should be cleaned carefully with a soft cloth and non-abrasive cleaner to prevent scratches. Regular inspection ensures the door maintains good thermal insulation and clear visibility of samples.
4: Are there maintenance precautions for safety systems?
It is recommended to test leakage and overcurrent protection periodically. Ensuring that speed monitoring and alarm systems are functional helps maintain both operator and sample safety.
5: What should be done if the Benchtop Incubator Shaker NBIS-504 is not used for a long time?
Our Benchtop Incubator Shaker should be cleaned thoroughly, unplugged, and stored in a dry, dust-free environment. Leaving the door slightly ajar can prevent moisture buildup inside the chamber.
