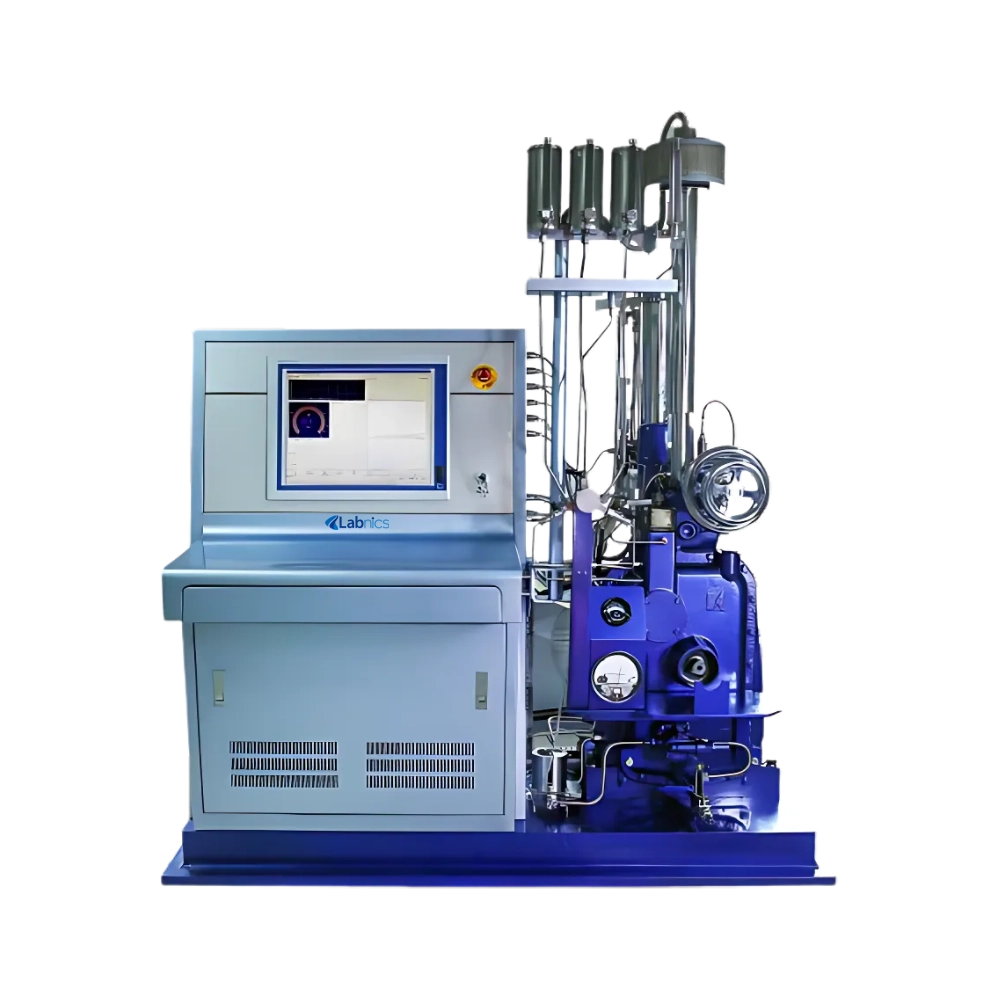

Cetane Analyzer NCEA-100 measures cetane numbers from 0 to 100, providing accurate analysis of diesel fuel ignition quality. It is equipped with a two-stage filtration lubrication system, including circulating cooling and auxiliary oil preheating. Our unit incorporates a large-capacity air purification system for optimal air intake. It utilizes advanced photoelectric measurement technology to detect and adjust fuel flow automatically. This analyzer features a negative pressure sensor for real-time monitoring of engine operation pressure.
$252,900.00
Specifications
| Cetane Number Range | 0 to 100 (Typical: 30 to 65) |
| Operating Temperature | 15℃ to 35℃ |
| Operating Humidity | 20% to 80% RH |
| Cast Iron Cylinder Bore Diameter | 82.55 mm (3.250 inch) |
| Piston Stroke | 114.3 mm (4.50 inch) |
| Compression Ratio Range | Adjustable 8:1 to 36:1 |
| Cylinder Displacement | 0.61 L (37.33 in³) |
| Cylinder Jacket Coolant Temperature | 100℃ ± 2℃ (212℉ ± 3℉) |
| Water Circulator | Powerful upper exhaust-cooled water circulator |
| Water Tank Capacity | ≥ 60 liters |
| Cooled Water Outlet Pressure | 0.2 to 0.4 MPa |
| Water Circulator Temperature Range | 15°C to 25°C |
| Engine Speed | 900 rpm ± 9 rpm |
| Injection Timing | 13° ± 0.2° BTDC |
| Injection Pressure | 10.3 MPa ± 0.34 MPa (1500 psi ± 50 psi) |
| Injection Flow Rate | 13 ml/min ± 0.2 ml/min |
| Injector Coolant Temperature | 38℃ ± 3℃ (100℉ ± 5℉) |
| Valve Clearance (Hot) | 0.2 mm ± 0.025 mm (0.008 in. ± 0.001 in.) |
| Intake Air Temperature | 66℃ ± 0.5℃ (150℉ ± 1℉) |
| Lubricating Oil Temperature | 57℃ ± 8℃ (135℉ ± 15℉) |
| Lubricating Oil Pressure | 172 kPa to 207 kPa (25 psi to 30 psi) |
| Basic Compression Pressure | 3275 kPa ± 138 kPa (475 psi ± 20 psi) |
| Crankcase Internal Pressure | 0.25 to 1.5 kPa less than atmospheric pressure |
| Fuel Head Height | 635 mm ± 25 mm (25 in. ± 1 in.) |
| Power | 380V, 50Hz |
| Dimensions (W×D×H) | 1550 × 900 × 1720 mm |
| Weight | 1200 kg |
Features
Applications
Ask Expert
Labnics Cetane Analyzer features a high-capacity air purification system to ensure optimal airflow and efficiency. They provide real-time monitoring of essential parameters for accurate and continuous analysis. Our analyzers are equipped with muffler systems to minimize operational noise. They include automatic data collection and monitoring for reliable analysis. These units feature a digital screen display for clear and easy monitoring of data.
