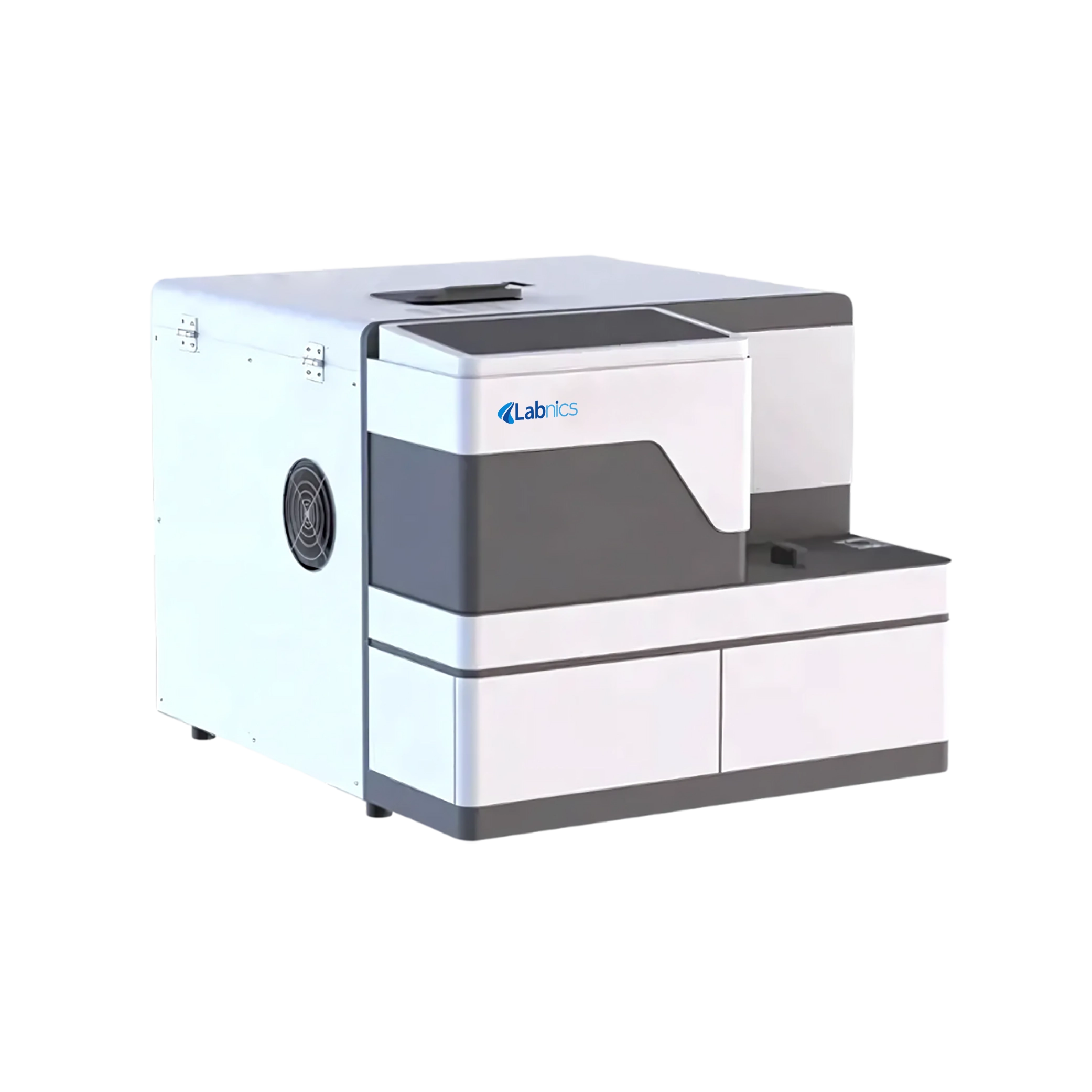

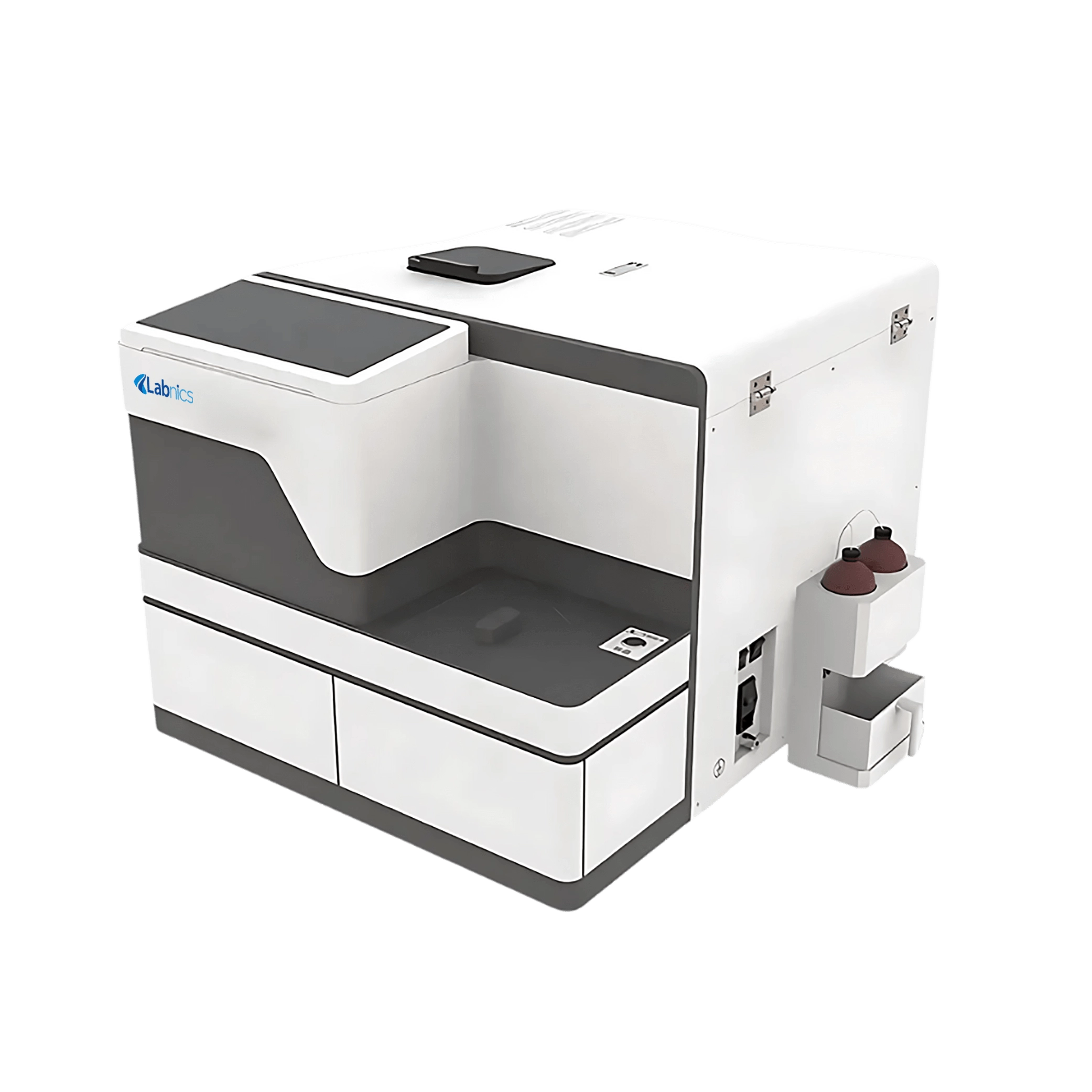

Chemiluminescence Immunoassay Analyzer NCIA-100 offers a sample capacity of 10 to 200 µl and 60 sample positions. It utilizes magnetic particle separation for faster and more efficient reactions. This unit features built-in sample barcode scanning for accurate identification and tracking. It has a compact and lightweight design for easy placement and operation. Our immunoassay analyzer includes a temperature-controlled reagent tray for stable performance.
$21,000.00
Specifications
| Throughput | 180 tests/hour |
| Sample Positions | 60 |
| Reagent Positions | 25 pcs (2 to 8°C refrigeration) |
| Incubation Positions | 58 |
| Time to 1st Result | 18 Minutes |
| Sample Capacity | 10 to 200 µl |
| Detection Precision | Up to 8% CV |
| Modes of operation | Random, Batch and STAT |
| Carry-over Rate | Up to 10⁻⁵ |
| Correlation Coefficient | R up to 0.99 |
| Calibration Stability | 28 Days |
| Calibration Type | 6/7-point calibration |
| Software System | Windows 7/8/10, 32 or 64 bit |
| Communication Protocol | HL7 |
| Power Supply | AC220V 50/60Hz (Standard), AC110V 60Hz (Optional) |
| Overall Dimensions | 768 × 771 × 568 mm |
| Package Dimensions | 940 × 840 × 1105 mm |
| Net Weight | 90 kg |
| Gross Weight | 150 kg |
Features
Applications
Standard Accessories
TSH × 1 box
Substrate solution ×1 bottle
Cleaning solution × 1 bottle
Reaction tube × 1 bag
Sample cup × 1 bag
1M hydrochloric acid × 1 bottle
Optional Accessories
Printer
Ask Expert
Labnics Chemiluminescence Immunoassay Analyzers feature a user-friendly interface with intuitive software for easy operation. They utilize chemiluminescent reactions for enhanced sensitivity and specificity. These units provide automated sample processing for improved workflow efficiency. They have a compact and lightweight design for easy handling and portability. Our immunoassay analyzers offer multiple detection modes for precise and efficient sample testing.
