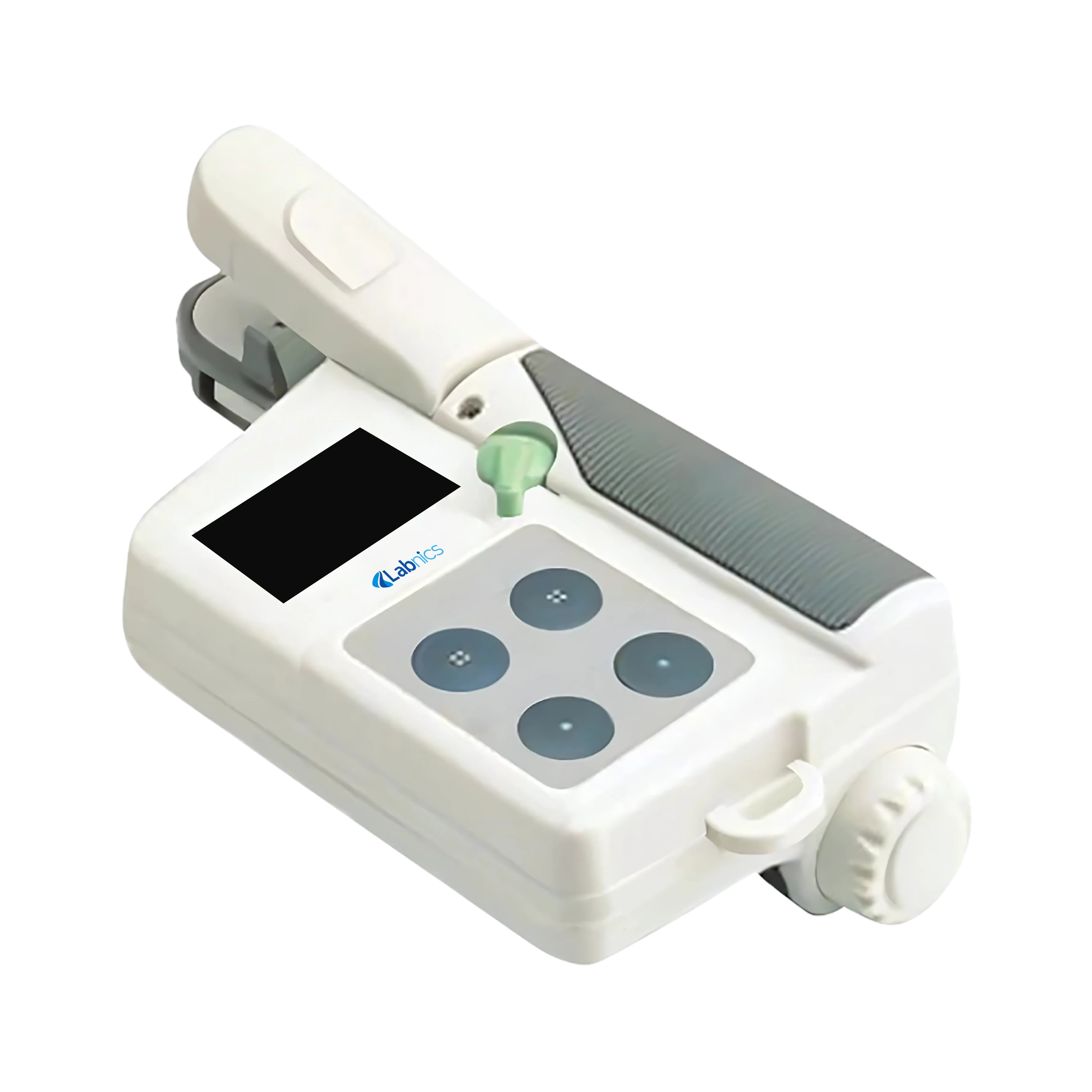

Chlorophyll Meter NCLM-200 features a measurement area of 2 × 3 mm with a maximum sample thickness capacity of 1.2 mm. It is equipped with a digital LCD display that provides clear and easy-to-read results. This unit offers a quick measurement response for efficient measurements. It uses battery power to enable continuous operation in the field. Our chlorophyll meter has a data storage capacity for convenient record keeping.
$3,888.00
Specifications
| Measurement Method | Optical density difference at two wavelengths |
| Measurement Area | 2 × 3 mm |
| Maximum Sample Thickness | 1.2 mm |
| Sample Insertion Depth | 12 mm |
| Accuracy | ±1.0 SPAD units |
| Repeatability | ±0.3 SPAD units |
| Reproducibility | ±0.5 SPAD units |
| Temperature Drift | ±0.04 SPAD units/°C |
| Minimum Measurement Interval | 2 seconds |
| Working Temperature | 0 °C to 50 °C |
| Working Humidity | 0.85 |
| Storage Temperature | -20 °C to 55 °C |
| Storage Humidity | 0.85 |
| Light Source | 2 LED elements |
| Sensor | Silicon photodiode |
| Display Range | -9.9 to 199.9 SPAD units |
| Display | LCD screen, 4 decimal places, trend chart |
| Data | 30 sets |
| Battery Life | Over 20000 measurements |
| Power Supply | 2 × AA batteries, 1.5 V each |
| Dimension (W × L × H) | 78 × 164 × 49 mm |
| Packaging Dimension (W × L × H) | 160 × 250 × 120 mm |
| Net Weight | 200 g |
| Gross Weight | 1 kg |
Features
Applications
Ask Expert
Chlorophyll Meters offer real-time analysis of leaf chlorophyll content with reliable precision. These instruments use optical, absorbance, or fluorescence-based sensing depending on the model. Our meters are equipped with dual-wavelength LED sources and integrated digital processors. They operate on rechargeable batteries and support multi-point data storage. This technology is widely adopted in agriculture, environmental science, and plant research.
