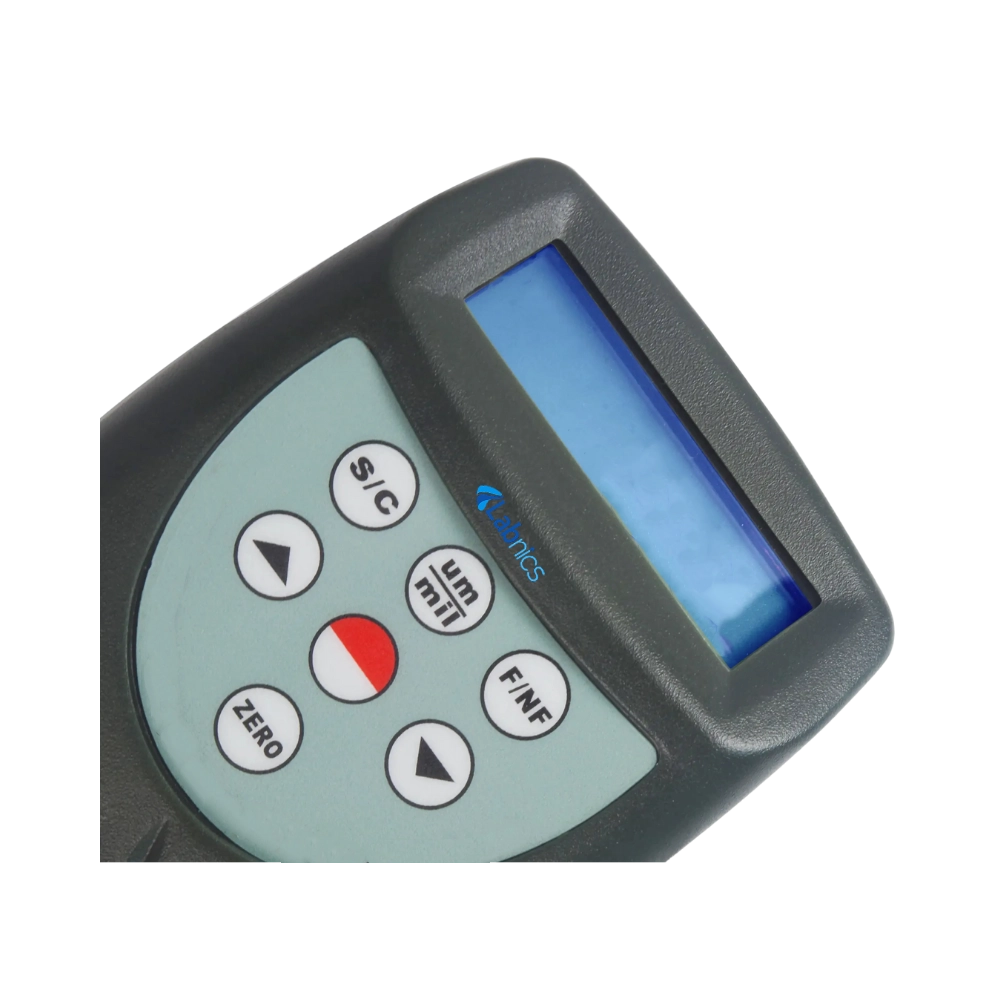

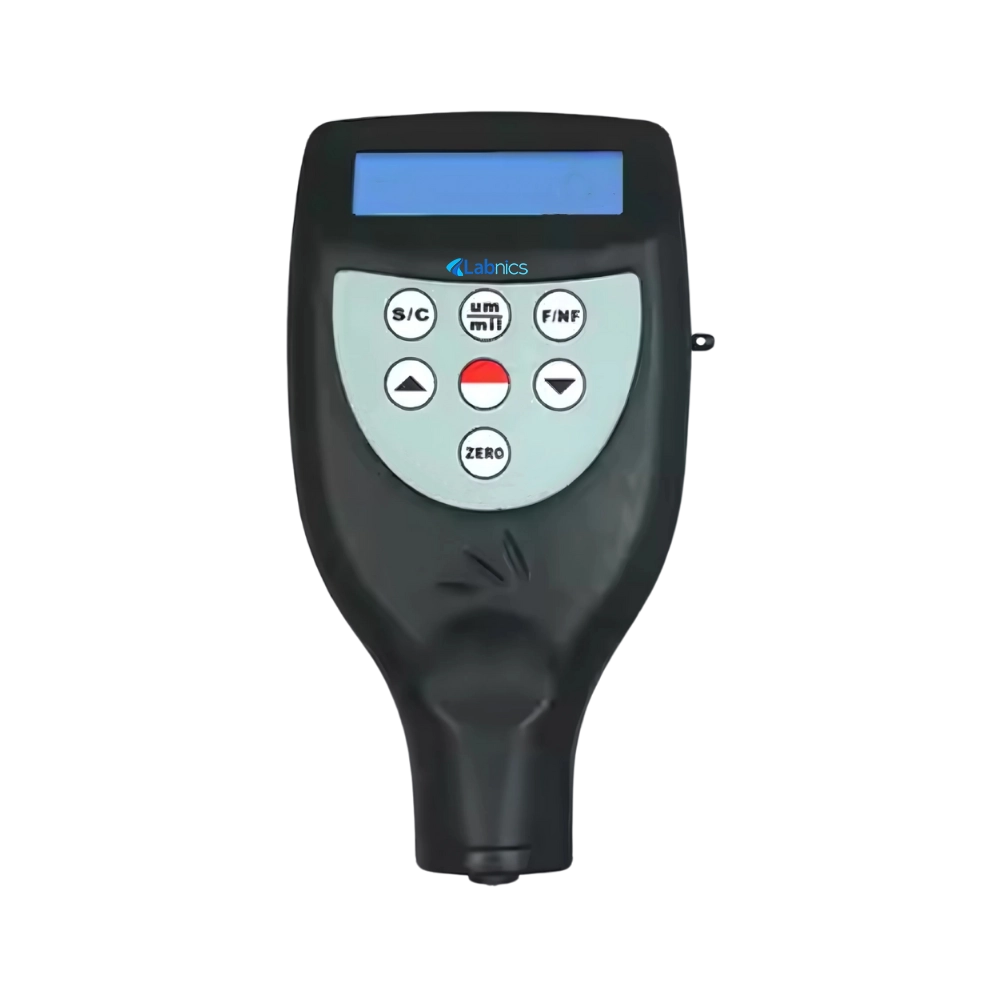

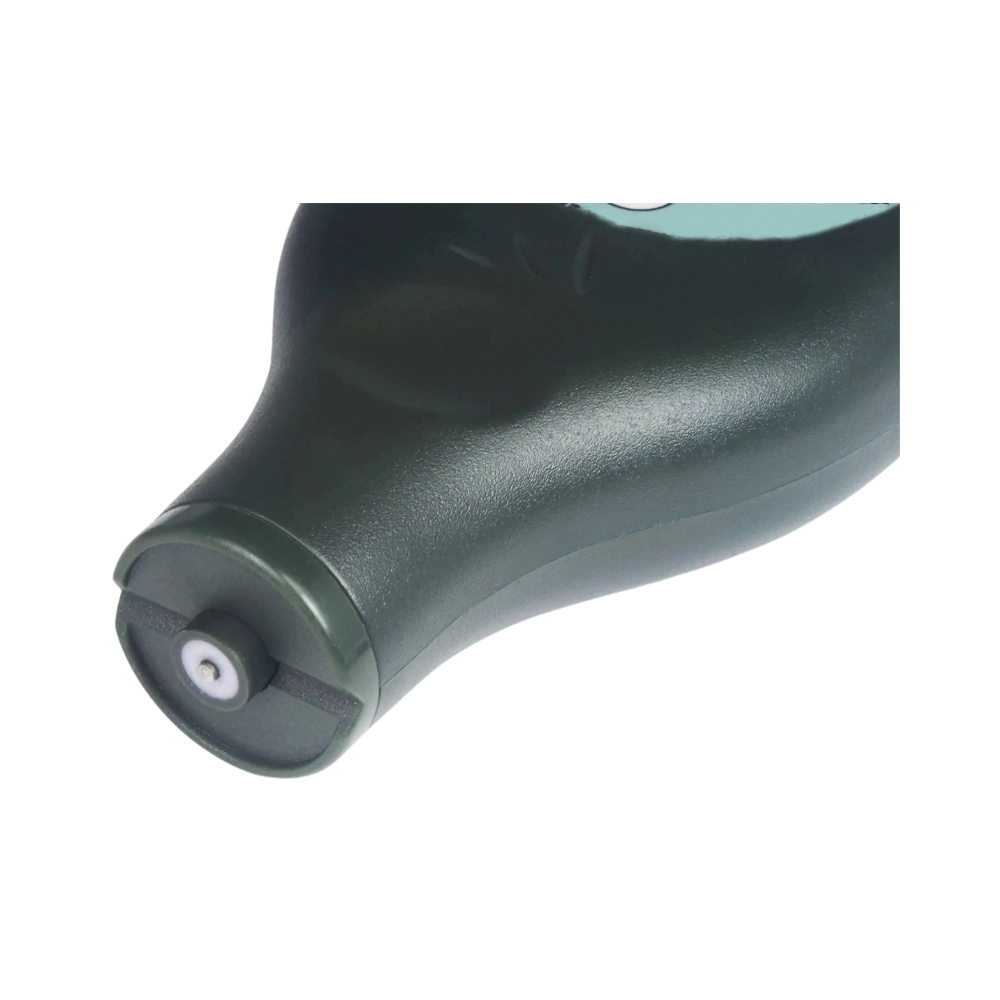

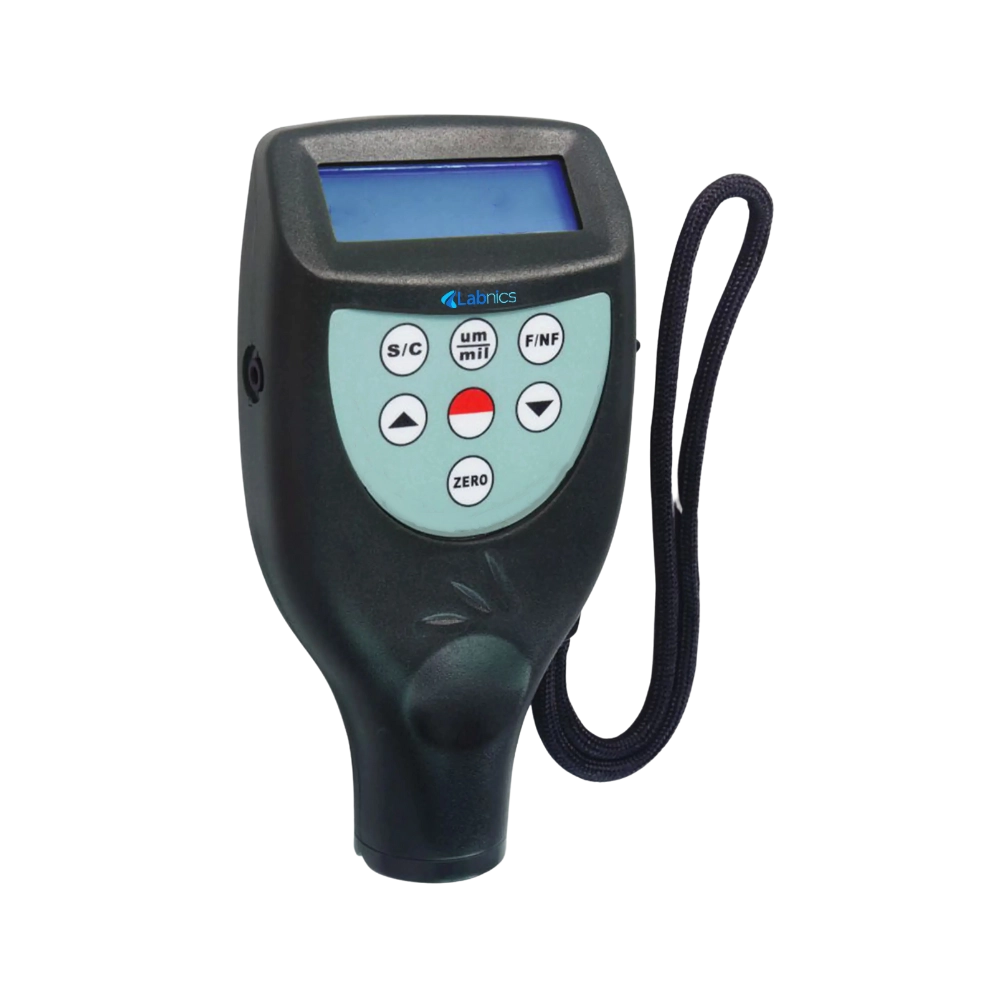

Coating Thickness Gauge NCTG-102 operates within a temperature range of 0 to 50°C and ensures an accuracy of ±1 to 3%n. It includes manual or automatic power-off functionality. This device offers Bluetooth data output options for efficient wireless connectivity. This offers a built-in probe for convenient and direct measurements. Our coating gauge features a digital display for clear and precise readings.
$1,350.00
Specifications
| Measuring Range | 0 to 1250 μm / 0 to 50 mil |
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Operating Principle | F Magnetic Induction |
| Minimum Radius Workpiece | 1.5 mm (convex)/ 25 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Metric / Imperial | Convertible |
| Operating Temperature | 0 to 50°C |
| Humidity | <80% RH |
| Battery Indicator | Low Battery Indicator |

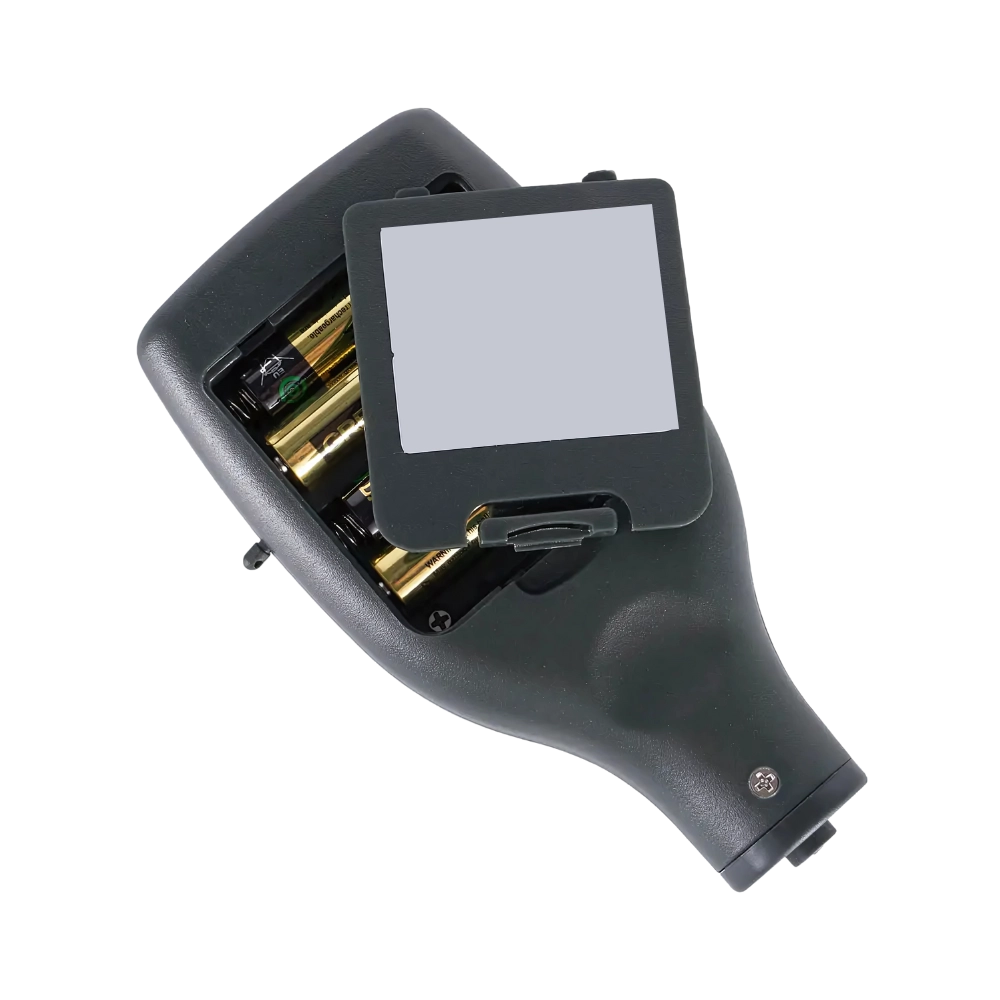

| Power Supply | 4 × 1.5V AAA (UM-4) Battery |
| Dimensions | 126 × 65 × 27 mm |
| Weight | 81 g |
Features
Applications
Standard Accessories
F type probe × 1 pc
F Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
Ask Expert
FAQ for Coating Thickness Gauge NCTG-102
1: Is the Coating Thickness Gauge suitable for curved or uneven surfaces?
Yes, the Coating Thickness Gauge can be used on slightly curved surfaces. However, for best accuracy, ensure stable probe contact and use probes designed for non-flat surfaces if available.
2: How does the Coating Thickness Gauge detect the substrate material automatically?
This Coating Thickness Gauge features automatic substrate recognition, which helps it identify whether the base is magnetic or non-magnetic.
3: Does the Coating Thickness Gauge NCTG-102 support both metric and imperial units?
Yes, the Coating Thickness Gauge allows users to switch between metric and imperial measurement systems, offering flexibility for different regional or industrial standards.
4: How can I transfer measurement data to a computer?
The Coating Thickness Gauge includes an RS-232 interface for direct PC connection and also provides a Bluetooth data output option for wireless data transmission.
5: Does the Coating Thickness Gauge NCTG-102 require frequent recalibration?
Recalibration is not frequently required, as the device automatically stores calibration values. However, recalibration is recommended when switching substrates or after extensive use for continued accuracy.
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
