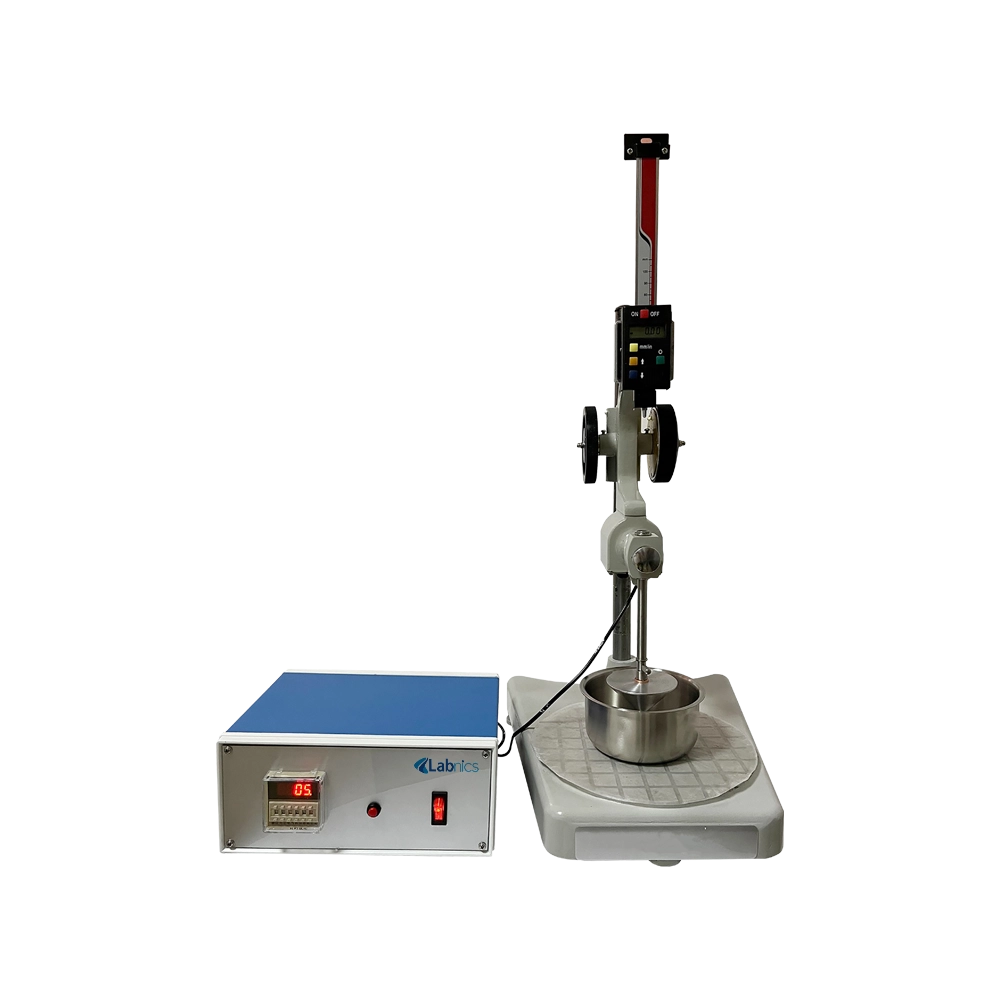

Cone Penetrometer NCP-100

Cone Penetrometer NCP-100 measures a maximum depth greater than 620 cone penetration units for reliable testing. It includes a timer for accurate tracking and measurement of test duration. This penetrometer features an electromagnetic release button for precise and controlled cone operation. Our unit is equipped with a locking screw to ensure stability during operation. It includes an LCD digital display for clear and precise measurement readings.

---

$4,400.00

Buy Now Catalog

Specifications

Maximum depth measurement	> 620 cone penetration
Timer setting range	0 to 99seconds ± 0.1seconds
Operating Environment	Indoor use, no corrosive gases
Ambient temperature	≤ 30°C
Display	LCD digital display Accuracy 0.01mm (0.1cone penetration)
Cone penetration indicator battery	LR44H button battery
Power	220V±22V, 50Hz±1Hz
Dimensions	500 × 450 × 350 mm
Weight	25kg

Features

• Cone Penetration Indicator
• Level adjustment screw
• Coarse and Fine adjustment handwheel
• Manual release button
• Level bubble ensures proper alignment
• Complies with ISO 2137:1985 standard

Applications

• Cone Penetrometer is used to measure the penetration of greases, petroleum products, and other materials. It finds application in soil testing, food processing, and material evaluation.

Standard Accessories

Instrument base × 1set

---

Column and upper part of the Instrument × 1set

---

Time controller × 1set

---

Time controller power cord × 1

---

Standard cone (102.5g) × 1

---

Standard taper rod (47.5g) × 1

---

Stainless steel grease cup (with lid) × 1

---

Thermometer (0 to 100℃) × 1 stick

Optional Accessories

Tamper
