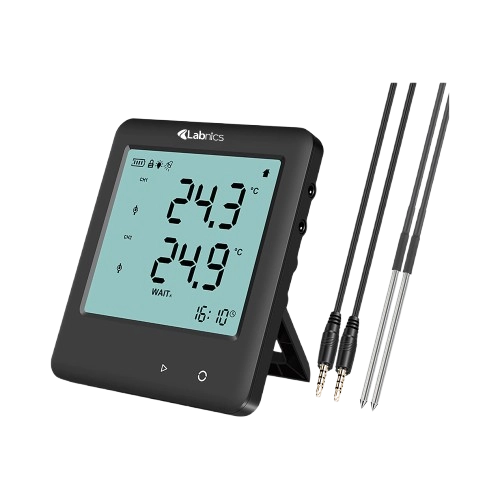

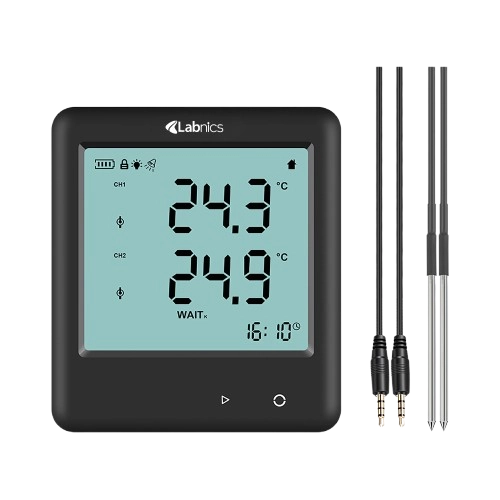

Temperature Data Logger NTDL-201

Temperature Data Logger NTDL-201

Temperature Data Logger NTDL-201 offers a temperature range of -200°C to +250°C for various measurements. It utilizes a platinum resistance probe for precise temperature readings. This unit features touch-sensitive buttons, providing a modern and user-friendly interface for ease of use. It provides long standby time for extended, efficient operation. Our data logger includes a low battery protection system that alerts users when the battery level is low.


$1,088.00

Catalog

Specifications

Temperature range -200°C to +250°C
Temperature accuracy With 1/3B PT1000: ±0.5°C (-100°C to +100°C); ±1°C (others)
With A PT1000: ±0.7°C (-100°C to +100°C); ±1°C (others)
Temperature resolution 0.1°C
Operating temperature -30°C to +65°C
Storage temperature -30°C to +65°C (No battery)
Probe type External
Standard probe measuring range -40°C to +200°C
Standard probe type 1/3B PT1000
Unit °C, °F
Response time(t90) 5 mins
LCD refresh interval 5 secs
Display refresh interval 5 secs
Storage 25920 or 500000 measurement data
Display Dot matrix LCD
Bluetooth and APP Not supported
Protection class IP20
Battery life About 1 year
Power supply 3 pcs 1.5V AAA alkaline battery
USB 5V/2A
Material ABS
Dimension 108×96×20mm
Weight About 120g (No battery)

Features

  • Extended battery life
  • Flexible probe options
  • Real-time monitoring
  • Multi-format data export
  • Backlit display
  • Exceed-limit alarm
  • Durable ABS body

Applications

  • Temperature Data Logger NTDL-201 is used to monitor temperature fluctuations for maintaining optimal conditions and ensuring quality control. It is applied in agricultural greenhouses, museums, laboratories, hospitals, production and transportation facilities, quality inspection areas, warehouses, and home or office environments.

Ask Expert

FAQ for Temperature Data Logger NTDL-201

1: How accurate is the Temperature Data Logger NTDL-201 in measuring temperature?

The Temperature Data Logger uses a platinum resistance probe for enhanced precision. It provides highly accurate readings, ensuring reliable temperature measurements across its entire range.

2: Does the Temperature Data Logger NTDL-201 have any real-time monitoring capabilities?

Yes, the data logger provides real-time temperature monitoring with quick updates and a backlit display for easy visibility in any lighting conditions.

3: What happens if the battery runs low?

The Temperature Data Logger includes a low battery protection system that alerts you when the battery is low, preventing any loss of data and ensuring continuous performance.

4: Can I transfer data from the Temperature Data Logger NTDL-201 to my computer?

Yes, it supports data transfer via USB and is compatible with multiple file formats, such as txt, csv, xls, and dlg, making it easy to export and analyze your temperature data on a PC.

5: Can the Temperature Data Logger handle extreme environments?

Yes, it is designed to operate in a wide range of temperatures, from -30°C to +65°C, making it suitable for use in harsh environments such as warehouses, laboratories, and industrial areas.

6: Do data loggers require regular maintenance?

Periodic maintenance is essential for ensuring accurate readings and prolonging the life of the data logger. Routine tasks such as cleaning, calibration checks, and battery replacement help maintain optimal performance. Regular upkeep ensures the device operates reliably and efficiently over time.

7: How much data can the Data Logger store?

The data loggers offer high storage capacity, allowing them to hold thousands of readings internally. This ensures long-term data recording without frequent downloads. Some models also support external memory for extended logging needs.

8: Do these Data Logger support external sensors or probes?

Yes, several data logger models are compatible with both internal sensors and external probes. This allows users to adapt the device to different environments and measurement requirements with ease.

9: Are these Data Loggers suitable for harsh environments?

Absolutely. These data loggers are built with rugged, durable designs to handle tough environments. They perform reliably in extreme temperatures, high humidity, and outdoor conditions.
