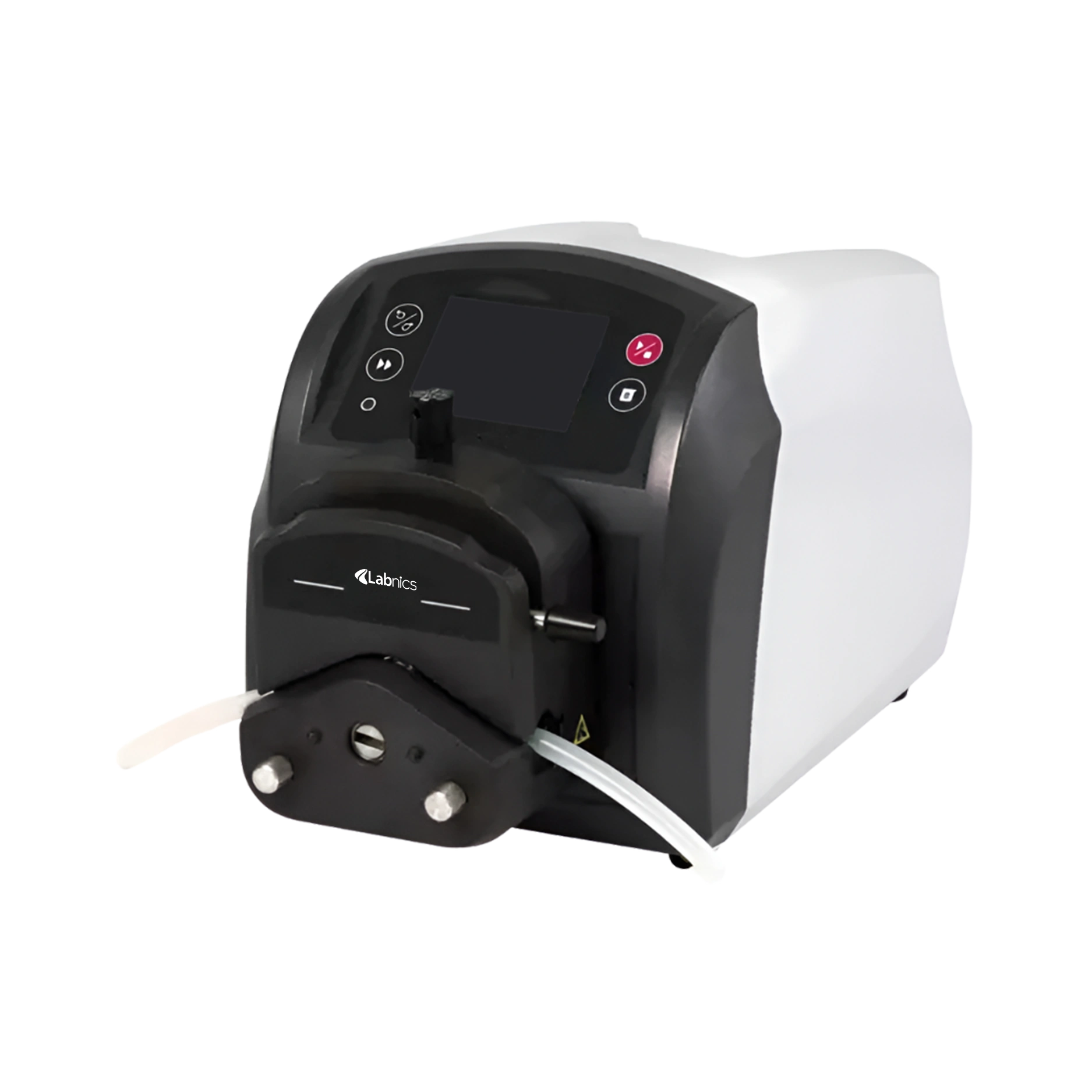

Dispensing Peristaltic Pump NDPP-101

Dispensing Peristaltic Pump NDPP-101 delivers a flow range of 0.005 to 3000 ml/min with 0.1 rpm resolution for precise fluid control. This pump includes programmable dispensing with adjustable delay for smooth performance. Our unit features the MODBUS protocol for easy integration. It supports both digital and analog external control for flexible operation. It offers reliable and efficient performance in harsh environments.

---

$1,663.00

Buy Now Catalog

Specifications

Flow range	0.005 to 3000mL/min
Speed range	0.1 to 600 rpm
Speed resolution	0.1 rpm
Speed accuracy	<±0.2%
Working environment	Temperature 0 to 40℃
Relative humidity	<80%
Delayed startup time	0.1 to 999.9 S/Min/H
Delay stop time	0.1 to 999.9 S/Min/H
Dispensing time	0.1 to 99.99 S/Min/H, time unit adjustable
Dispensing number	1 to 999, 0 Infinite cycle
Dispensing interval	0.1 to 999 S/Min/H
IP grade	IP31
Communication interface	RS485 communication interface, MODBUS protocol is available
External control interface	External control input level 5V, 12V (standard), 24V (optional), External control analog 0-5V (standard), 0-10V, 4-20mA (optional)
Power consumption	<50W
Power supply	AC 100 to 240V，50Hz/60Hz
Dimension (L×W×H）	258×180×197mm
Weight	3.9 kg

Features

• Double-deck isolation design
• Wide input voltage range
• ABS plastic housing
• Keypad for operating
• Super mute design.

Applications

• Dispensing Peristaltic Pump NDPP-101 ensures accurate fluid transfer and dispensing in automated processes. It is used in laboratories, pharmaceutics, and the food industry.
