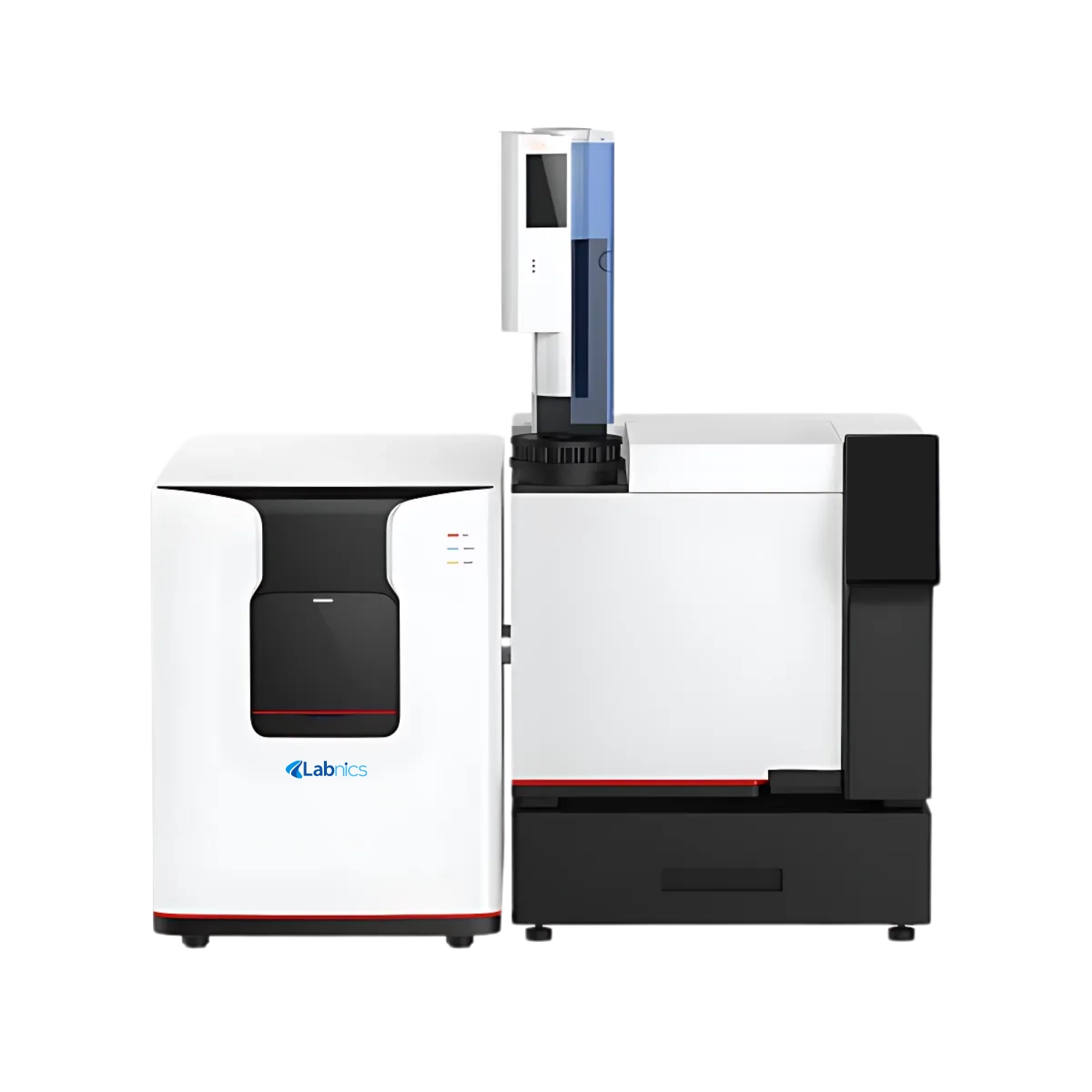

Triple Quadrupole GC-MS-MS NGCMS-100 operates optimally with a temperature range of 18 to 25 ℃. This unit supports advanced ion filtering with a 90° ion deflection system to reduce background noise. It is equipped with a dual turbomolecular vacuum system, which ensures long-term performance. Our system utilizes a non-cold point interface for efficient sample transfer. It has a hexapole collision cell that enhances ion separation and supports high-throughput MRM analysis.
$135,563.00
Specifications
| Working Ambient temperature | 18 to 25 ℃ |
| Working Humidity | 20 to 60% RH |
| Pumping speed | 65 m3/h |
| GC Sample volume | 0.1 μl to 250 μl |
| GC Sampling Accuracy | ± 0.01% |
| GC Sampling precision | RSD < 0.5% |
| GC Flow rate | 0 to 500 ml/min (N2), 0 to 1000 ml/min (He, H2) |
| GC Inlet temperature | 450 °C |
| GC Temperature control accuracy | ± 0.1 ℃ |
| GC Pressure range | 0 to 100 psi |
| GC Pressure control accuracy | ± 0.001 Psi |
| GC Heating rate | Up to 120 °C / min, typically 50 °C / min |
| MS Mass Analyzer | Triple quadrupole mass analyzer |
| MS Mass number range | 5 to 1100 amu |
| MS EI Ion source temperature | 150 °C to 350 °C |
| GC-MS interface temperature | 50 to 400 °C |
| MS Scan rate | up to 20,000 amu/s |
| MS Stability | < ± 0.1 amu / 24 hrs. |
| MS EI source ionization energy | 10 eV to 300 eV |
| MS Resolution | 0.4 to 3 amu (adjustable) |
| MS Detector | Pulse counting detectors |
| MS Sensitivity | MRM mode: 100 fg /µL OFN of 1µL, ≥ 15000:1 |
| MS Vacuum | Mechanical pump and dual inlet turbo molecular pump |
| Power supply | 220 ± 20 V AC, 10A, 50 Hz |
| Dimensions (L × W × H) | 1170 × 860 × 860mm |
| Weight | 140 Kg |
Features
Applications
Standard Accessories
Host machine for MS part
GC Customized host (inert injection port)
Overseas version MS accessory kit
Overseas version GC accessory kit
Adjustable operating table (617 × 508 × 180mm)
Vacuum mechanical pump
Optional Accessories
Liquid automatic sampler
Vial sample tray
Tuning solvent (OFN)
European standard adapter plug
European standard three-core power cord & length 2m
Capillary column
Ask Expert
FAQ for Triple Quadrupole GC-MS-MS NGCMS-100
1: What kind of analyses can the Triple Quadrupole GC-MS-MS NGCMS-100 perform?
It supports qualitative and quantitative analysis of trace-level compounds like pesticides, drug residues, and pollutants in complex matrices.
2: How is sample transfer efficiency maintained in Triple Quadrupole GC-MS-MS?
A non-cold point heat tracing interface maintains a consistent elevated temperature throughout the sample transfer pathway, eliminating cold spots where condensation or sample degradation might occur.
3: What type of collision cell is used in Triple Quadrupole GC-MS-MS NGCMS-100?
A hexapole axial acceleration collision cell is used to improve ion separation and reduce interference.
4: Does the Triple Quadrupole GC-MS-MS NGCMS-100 include data processing software?
Yes, it comes with Windows-based workstation software that includes automatic quantification, spectral database search, and offline processing.
5: What maintenance features does the Triple Quadrupole GC-MS-MS offer?
Triple Quadrupole GC-MS-MS offers user-friendly maintenance features, including cleanable pre- and post-quadrupoles, which help eliminate organic deposits and extend system life.
6: What types of samples can be analyzed using GC-MS-MS?
GC-MS/MS is suitable for volatile and semi-volatile organic compounds in liquid, solid, or gaseous samples.
7: Why is GC-MS-MS preferred for detecting trace-level compounds?
It is preferred because it offers high sensitivity, low detection limits, and the ability to eliminate matrix interferences, making it ideal for trace analysis.
8: Is GC-MS-MS easy to operate?
GC-MS-MS systems are user-friendly, featuring automated processes and intuitive software that simplify operation and enhance overall efficiency, even for complex analyses.
9: Can GC-MS-MS be used for quantitative analysis?
Yes, GC-MS-MS is widely used for both qualitative and quantitative analysis due to its precision and accuracy.
Gas Chromatography Tandem Mass Spectrometry offers sensitivity for detecting trace compounds. They offer high selectivity by isolating specific compounds through advanced fragmentation and ion filtering. These units ensure accurate quantification even in complex sample matrices. They are compatible with automation for high-throughput workflows. Our GC-MS-MS provides reliable and consistent analytical performance, ensuring accurate results.
