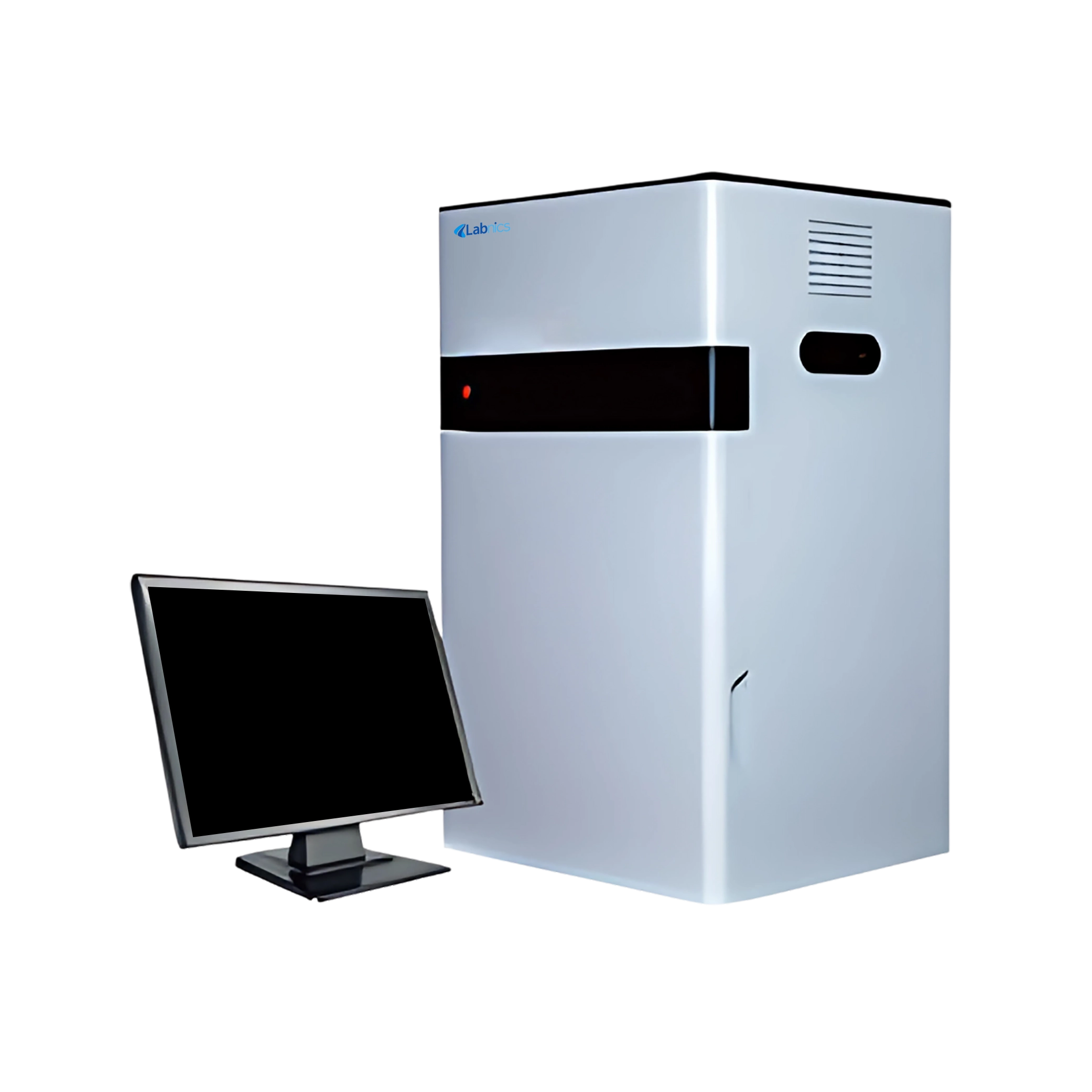

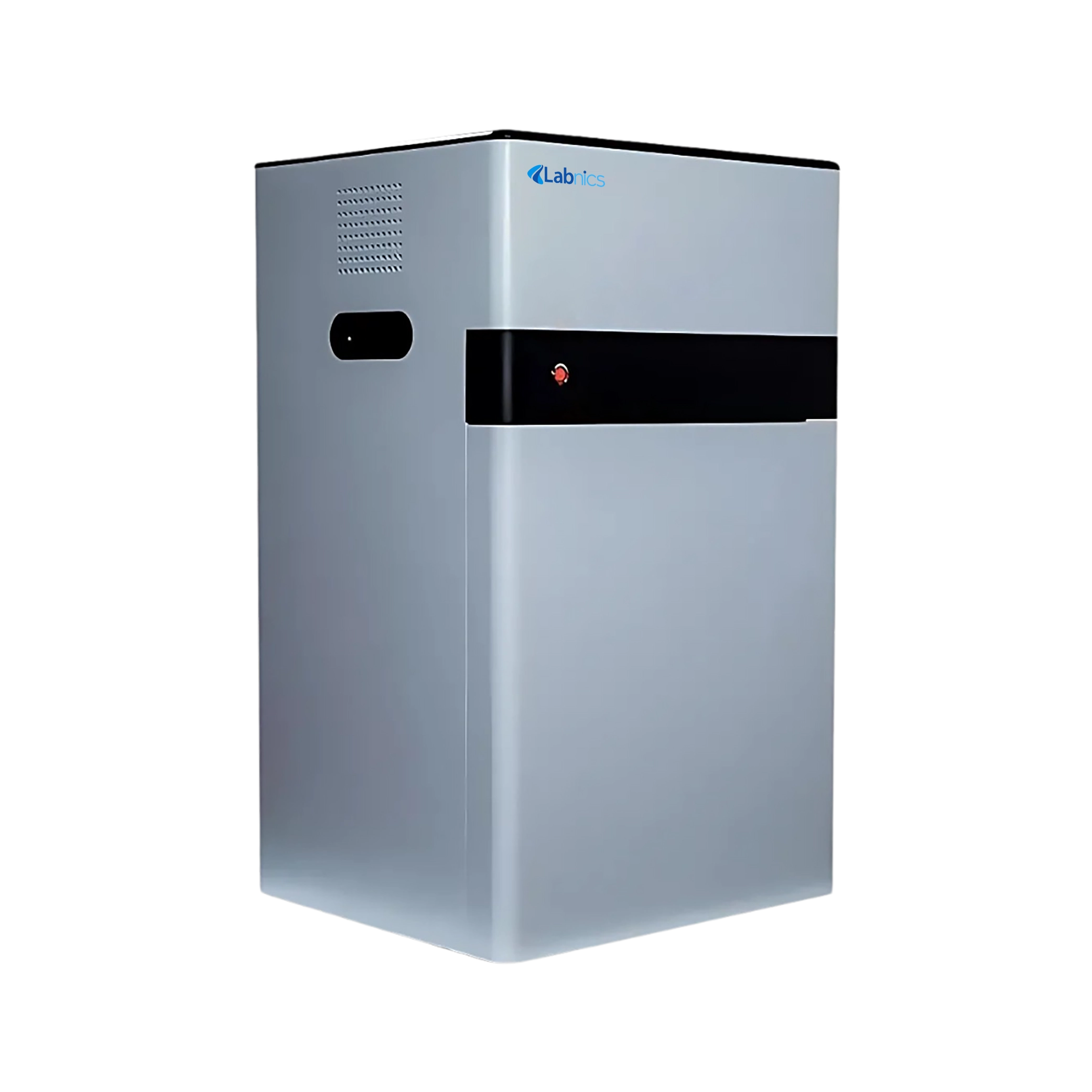

Gel Documentation System NGDS-200 features a scientific monochrome digital camera designed for high-resolution imaging. It includes a standard filter system compatible with various commonly used stains. This unit integrates a UV protection device to enhance user safety. It offers an EPI-light source system with two built-in white LEDs as standard. Our system comes with a darkroom with no light leakage to ensure optimal conditions for capturing sensitive gel images.
$4,425.00
Specifications
| Camera | Scientific monochrome digital camera |
| Resolution | 5 Megapixels, 2592×1944, 600DPI |
| Pixel density | 16-bit (65536 grey scales) |
| Quantum efficiency | 75% |
| Readout noise | 5.1e- RMS |
| SNR | 70.1db |
| Lens | F1.2 Electronic lens (8 to 48mm, 6× zoom） |
| Filter system | Standard gel doc filter |
| EPI-Light source | EPI-White LED×2 EPI-Blue LED×2 (optional) EPI-UV (302nm, 254nm, 365nm) (optional) |
| UV transmission | Peak wavelength: 302 nm (optional 254nm or 365nm) Area:210×260mm |
| White LED plate area | 190×260mm |
| Power supply | AC100 to 240V 50/60 Hz |
| Darkroom dimension | 430×360×700 mm |
| Product dimension | 360×430×700 mm |
| Package dimension | 500×550×880 mm |
| Net weight | 21kg |
| Gross weight | 26kg |
Features
Applications
Standard Accessories
UV protection device -1pc
White transmission -1pc
Flash disk with Image Acquisition and Analysis software for an unlimited number of users- 1pc
Power cord -1pc
USB Cable 3.0 -1pc
Optional Accessories
Reflectance UV wavelengths: 254 nm
Reflectance UV wavelengths: 365 nm
Ask Expert
FAQ for Gel Documentation System NGDS-200
1: Can I use the Gel Documentation System NGDS-200 for different gel types?
Yes, the system is compatible with various gels, including DNA, RNA, and protein gels, and supports multiple staining methods like EtBr and SYBR Green.
2: How does the automatic focusing feature work?
The Gel Documentation System uses advanced software algorithms to automatically focus on your gel samples, ensuring accurate and consistent results without manual adjustments.
3: What maintenance is required for the Gel Documentation System NGDS-200?
The system requires minimal maintenance. Regular cleaning of the sample tray and lens is recommended to ensure optimal image quality.
4: How does the UV protection mechanism ensure safety?
The UV protection feature shields users from harmful UV exposure during gel imaging by providing a protective layer around the system, ensuring safe operation while using UV light sources.
5: Can I use the Gel Documentation System NGDS-200 for real-time imaging?
While the system is designed for high-quality gel documentation, it also offers fast image acquisition, making it suitable for real-time imaging in certain experimental setups.
6: How durable is the Gel Documentation System NGDS-200?
The Gel Documentation System is built with durability in mind, featuring robust components designed for regular use in research and laboratory environments, ensuring long-term performance.
