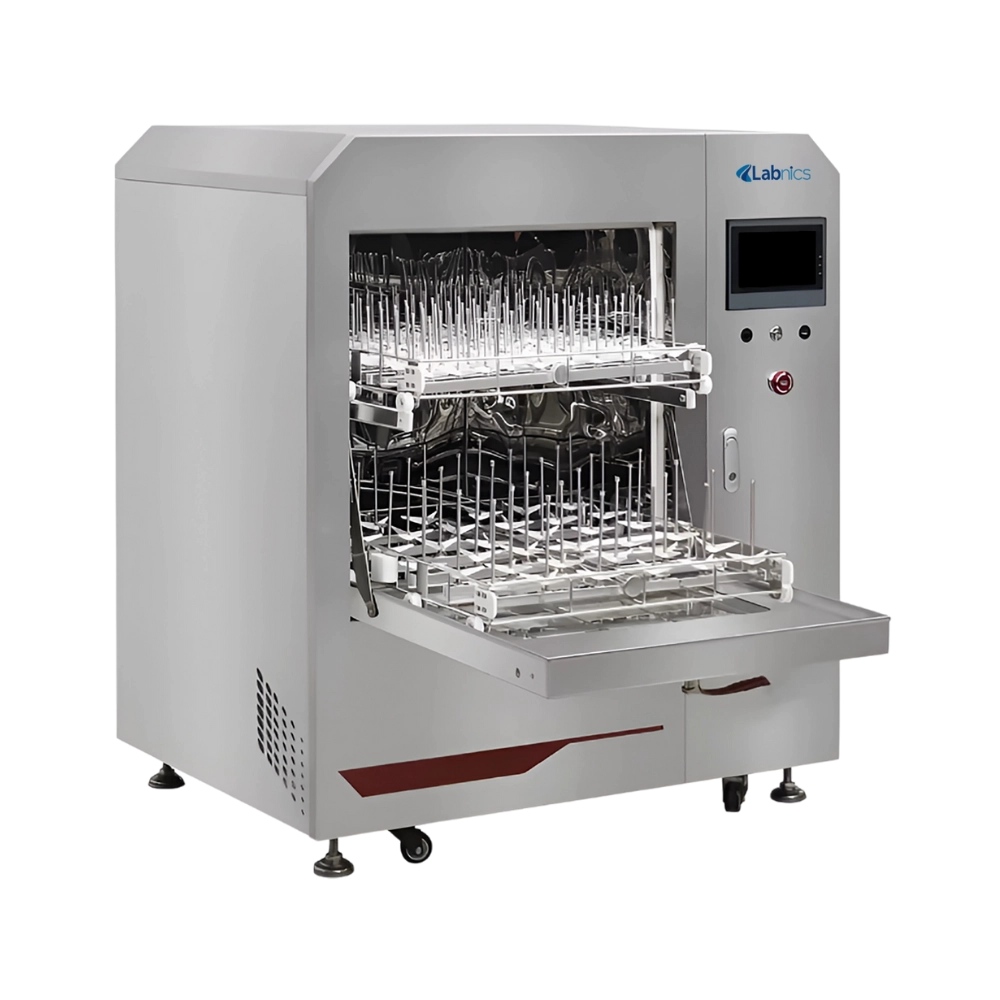

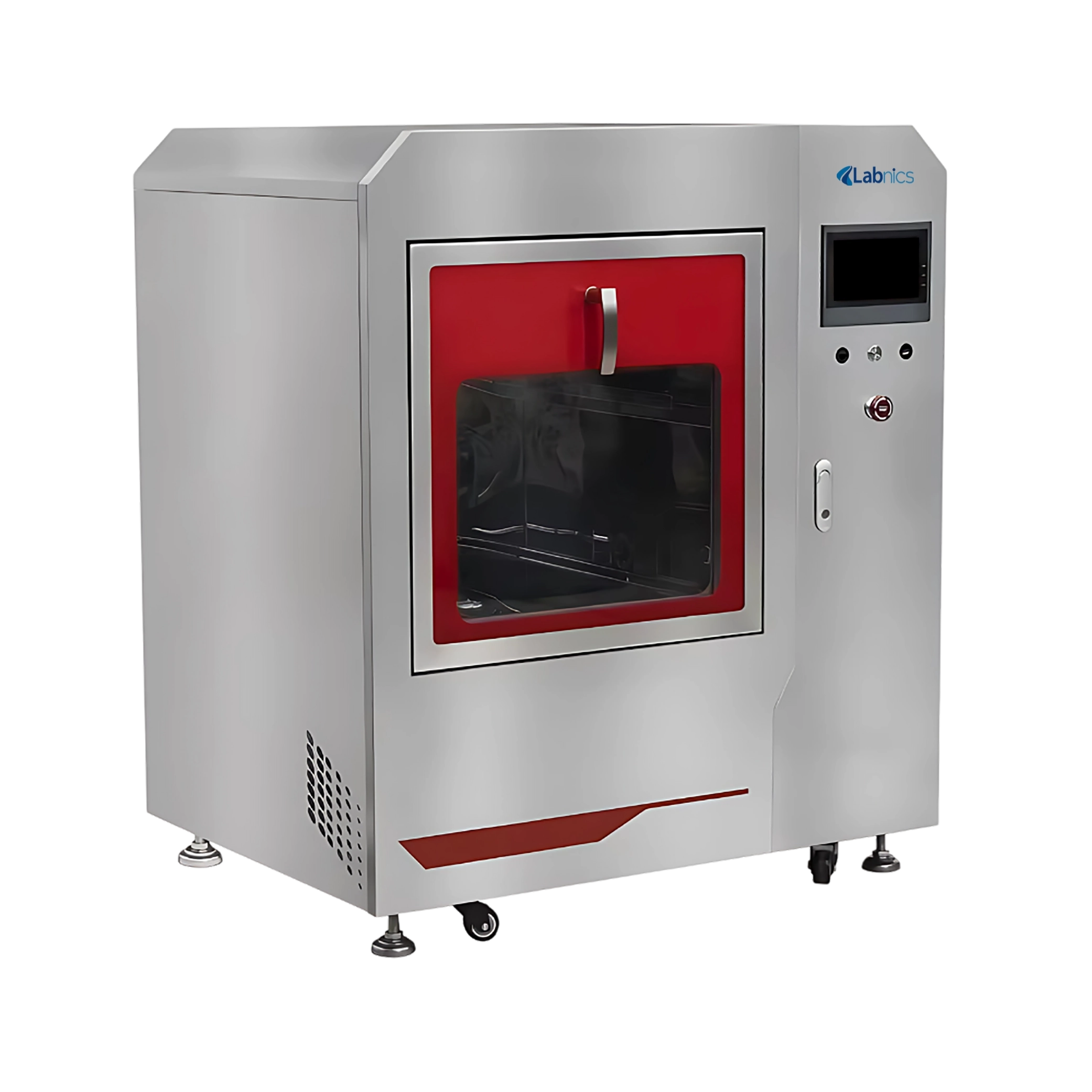

Automatic Glassware Washer NAGW-200 comes with a 200L capacity, suitable for various sizes of laboratory glassware. It ensures efficient water usage with a consumption of 18L per cycle. This unit features a microprocessor-based control system for precise automation. It is crafted with a stainless-steel interior, offering corrosion resistance and long-lasting durability. Our glassware washer includes an electronic security door lock to prevent accidental openings during operation.
$18,600.00
Specifications
| Capacity | 200L |
| Water consumption/cycle | 18L |
| Tank internal temperature | 0 to 99°C |
| Water supply pressure | 0.3 to 1 MPa |
| Washer load level | 2 |
| Peristaltic pump for cleaning agent | 2 independent pumps control the detergent agent and neutralizing agent |
| Cleaning agent level sensor | Yes |
| Washing pump | 800L/min |
| Drying function | Yes |
| Steam condenser | Yes |
| Control system | Microprocessor |
| Display | 7-inch color LCD touchscreen |
| Cleaning program | 12 pre-set programs (editable) + 99 PLC free programming |
| Password protection | 3 levels password |
| Safety emergency button | Yes |
| USB port | Yes |
| Integrated printer | Optional |
| Online monitoring performance of washing | Optional |
| Door | Double-layered glass door |
| Safety door lock | Yes |
| Built-in RO water pump | Yes |
| Noise level | Less than 50 dB |
| Power consumption (water washing) | 0.75kW |
| Power consumption (water heating) | 5kW |
| Power consumption (drying) | 3kW |
| Overall power consumption | 6kW |
| Power supply | 220V to 240V/ 50 to 60Hz |
| Chamber dimension | 600×629×679mm |
| External dimension | 990×740×1145mm |
| Packaging dimension | 1100×900×1345mm |
| Net weight | 193kg |
| Gross weight | 260kg |
