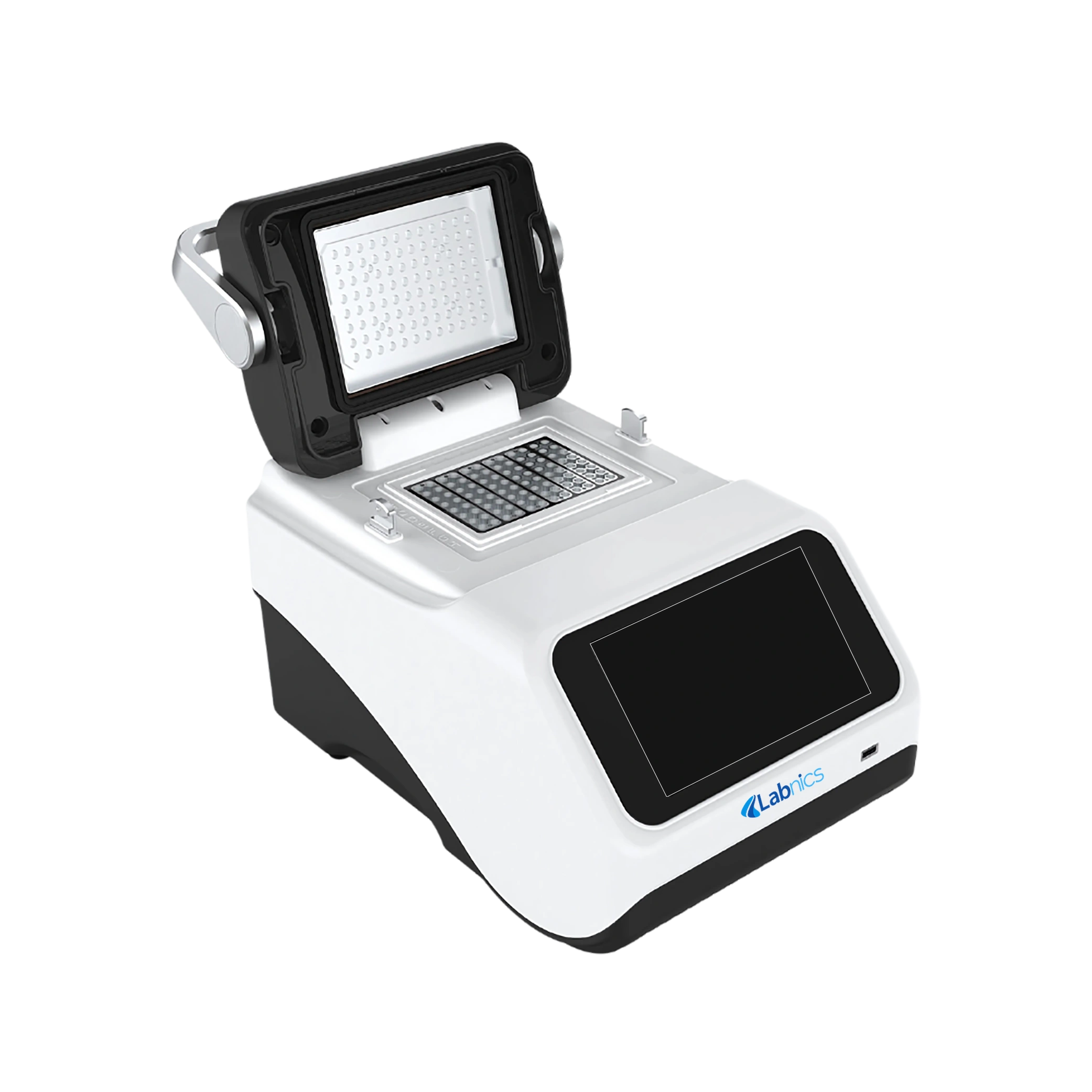

Gradient Thermal Cycler NGTC-600

Gradient Thermal Cycler NGTC-600 offers temperature control from 4°C to 100°C, ensuring reliable performance for thermal cycling. It delivers fast heating and cooling for efficient operation. This cycler provides high temperature accuracy and uniformity across all wells, maintaining consistent results. It features a 7-inch LCD that allows real data monitoring. Our unit also has a large storage capacity for programs, ensuring user-friendly operation.

---

$4,338.00

Buy Now Catalog

Specifications

Volume	10 to 100 μl
Capacity	0.2mL × 96-well PCR Plate
Heating lid temperature	30 to 110°C
Maximum block heating Rate	5ºC/s
Maximum block cooling Rate	4°C/s
Temperature uniformity	<0.5°C
Sample temperature range	4°C to 100°C
Temperature accuracy	±0.25°C (35 ºC to 99.9°C)
Heating and cooling blocks	6
Display resolution	0.1°C
Maximum temperature difference between blocks	25°C
Temperature difference between two adjacent blocks	0.1°C to 5.0°C
Gradient temperature accuracy	±0.25°C (35°C to 99.9°C)
Gradient temperature uniformity	<0.5°C
LCD display	7" LCD touch screen
Time range	1 to 120s
Temperature range	0.1°C to 10.0°C
Maximum number of cycles	999
Program storage capacity	Up to 15,000
Communication interface	USB 2.0
Noise	<45dB
Power supply	100 to 240V, 50 to 60Hz
Maximum power	750 VA
Maximum current	10A
Dimensions (L×W×H)	364×243×244mm
Net weight	8.7kg

Features

• Six independent temperature blocks
• High temperature accuracy
• Space-saving airflow design
• Advanced lid technology
• Rapid thermal cycling

Applications

• Gradient Thermal Cycler NGTC-600 is used to amplify DNA through PCR. It is used in medical diagnostics, molecular biology, forensics, and environmental testing.
