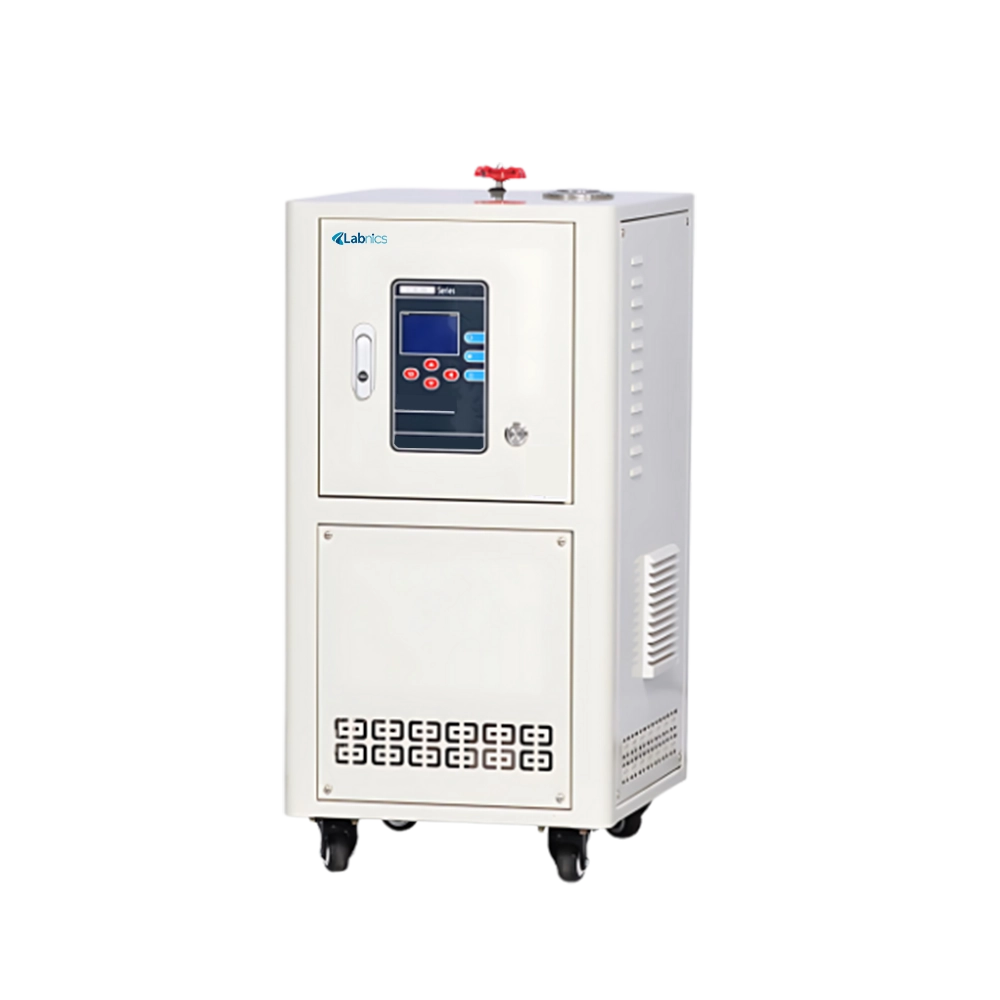

Heating Circulator NHTC-102 offers a 35L capacity, providing ample space for a variety of applications. It utilizes PID temperature control for accurate and stable regulation. Our unit is crafted with high-quality stainless steel, ensuring durability and resistance to corrosion. It includes multiple safety features such as over-temperature, overload, and over-current protection. This circulator is equipped with an exhaust valve to facilitate gas removal, enhancing both safety and reliability.
| Capacity |
35L |
| Temperature range |
RT to 200°C |
| Temperature accuracy |
±0.5°C |
| Ambient temperature |
5 to 30°C |
| Ambient humidity |
45 to 80%RH |
| Circulating pump type |
Vortex pump |
| Circulating pump pressure |
2.5bar |
| Cycle interface |
DN25 |
| Cooling water interface |
DN20 |
| Rated flow |
50L/min |
| Heating method |
Electric heating |
| Cooling method |
Water cooling |
| Temperature sensor |
PT100 |
| Water cooler |
Plate heat exchanger |
| PLC control system |
Siemens S7-200smart |
| PLC protocol |
Modbus RTU protocol RS485 interface (optional RS232 Ethernet) |
| PLC operation panel |
7-inch Siemens color touch screen (optional 10-inch) |
| PLC programming |
5 programs can be edited, each with up to 40 steps |
| PLC control mode |
Material temperature and equipment outlet temperature can be switched automatically |
| PLC data output |
Support U disk data output, can be outputted temperature data in TXT format |
| Display |
LCD |
| Safety protection |
Self-diagnosis
High-pressure switch
Overload relay
Over-temperature alarm |
| Heating power |
15kW |
| Cooling capacity (200°C) |
15kW |
| Cooling capacity (100°C) |
12kW |
| Cooling capacity (65°C) |
5kW |
| Power consumption |
16.5kW |
| Power supply |
220V/380V/480V, 50/60Hz |
| Weight |
100kg |
Stainless steel hose with thermal insulation (3.6 meters/piece),1pc
FAQ for Heating Circulator NHTC-102
1: Is there any specific training required to operate a Heating Circulator NHTC-102?
Not necessarily. Heating Circulator NHTC-102 are user-friendly with intuitive controls, but basic training or reviewing the user manual is recommended for safe and optimal use.
2: What is the difference between a heating circulator and a water bath?
While both heat fluids, a heating circulator provides active circulation for uniform temperature distribution and can connect to external equipment, unlike a standard water bath.
3: Can Heating Circulator NHTC-102 be used for high-viscosity fluids?
Heating Circulator NHTC-102 is designed with stronger pumps capable of handling viscous fluids; always check the pump specifications before use.
4: Is the Heating Circulator NHTC-102 suitable for continuous operation?
Yes. Heating Circulator NHTC-102 is designed for continuous 24/7 operation with efficient thermal control and system protection.
5: What type of bath liquids can be used in Heating Circulator NHTC-102?
Depending on the temperature range, water, silicone oils, and glycol-based fluids are commonly used.
