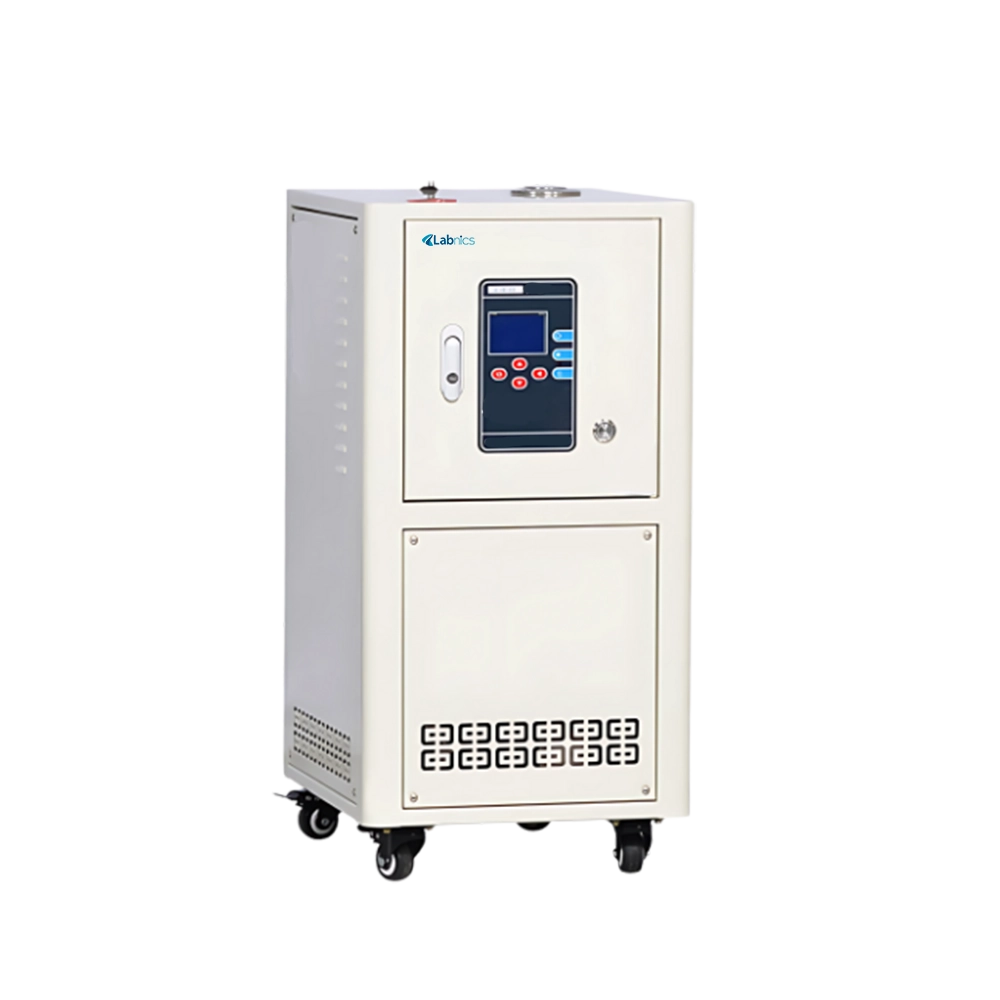

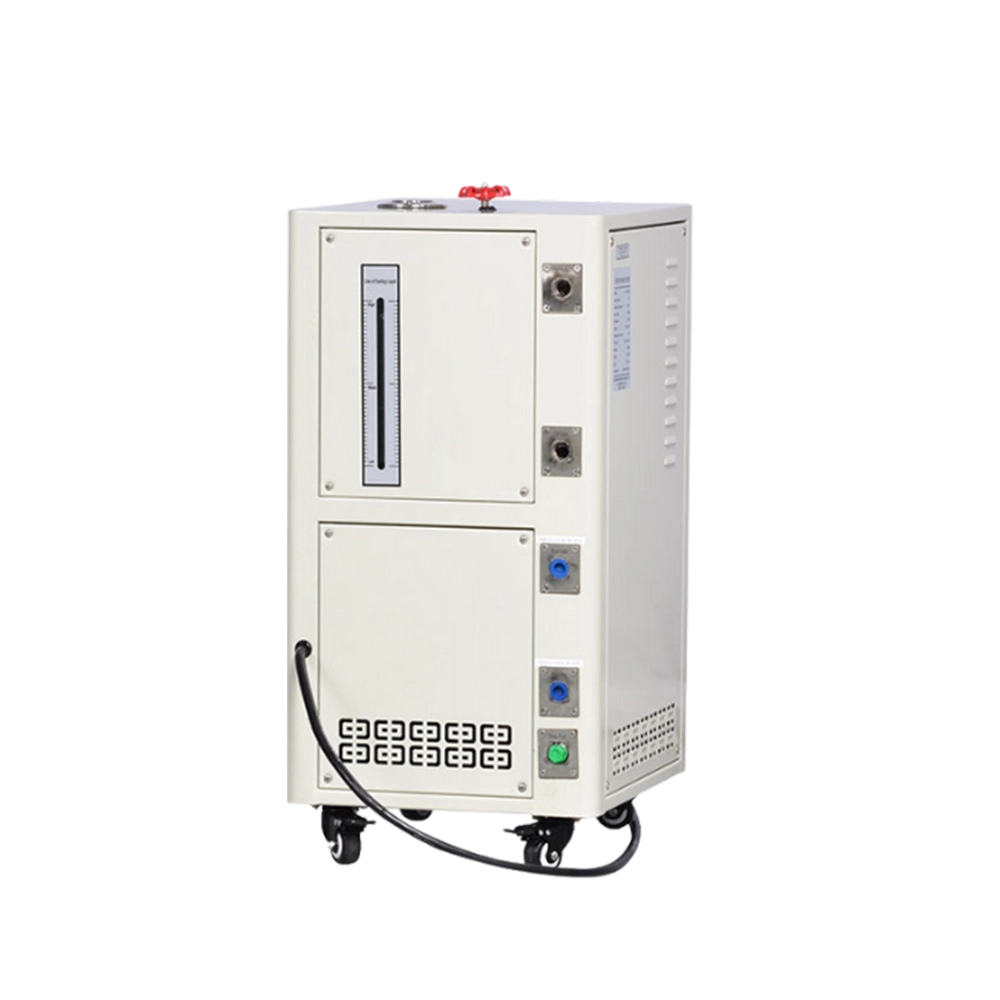

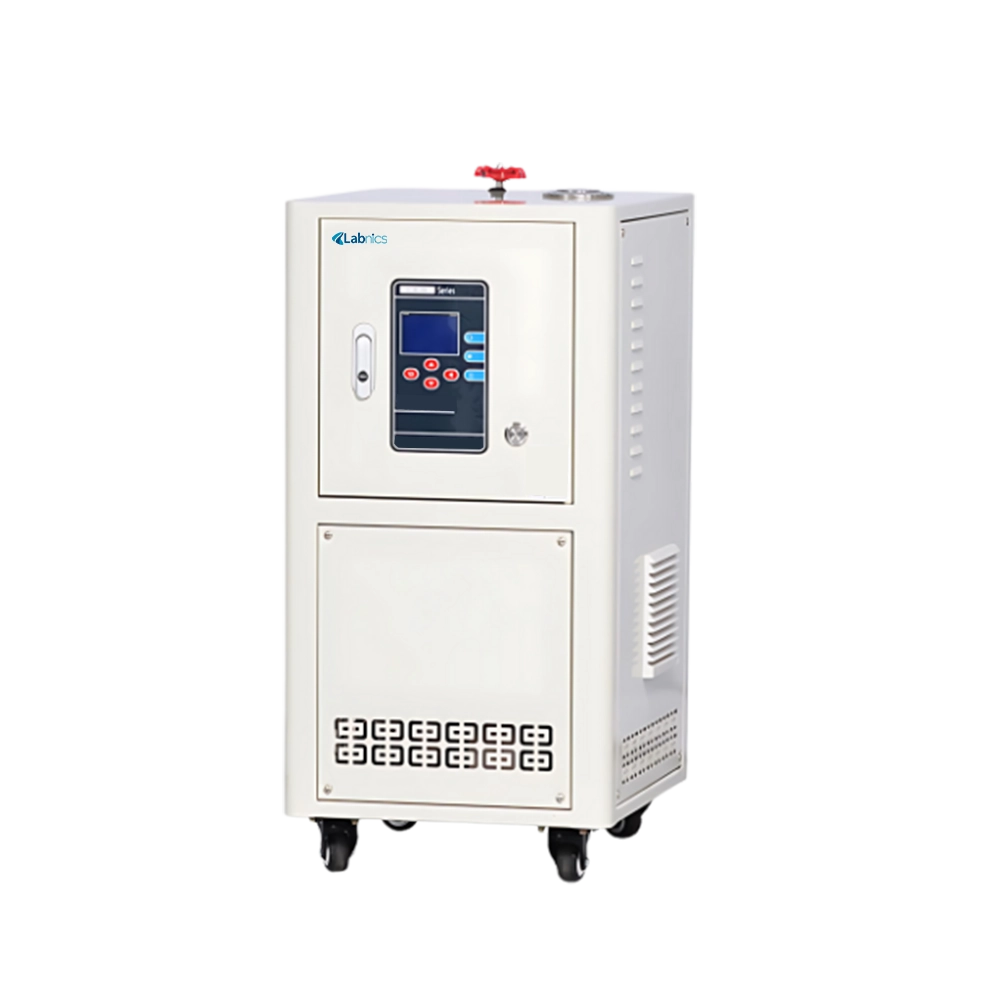

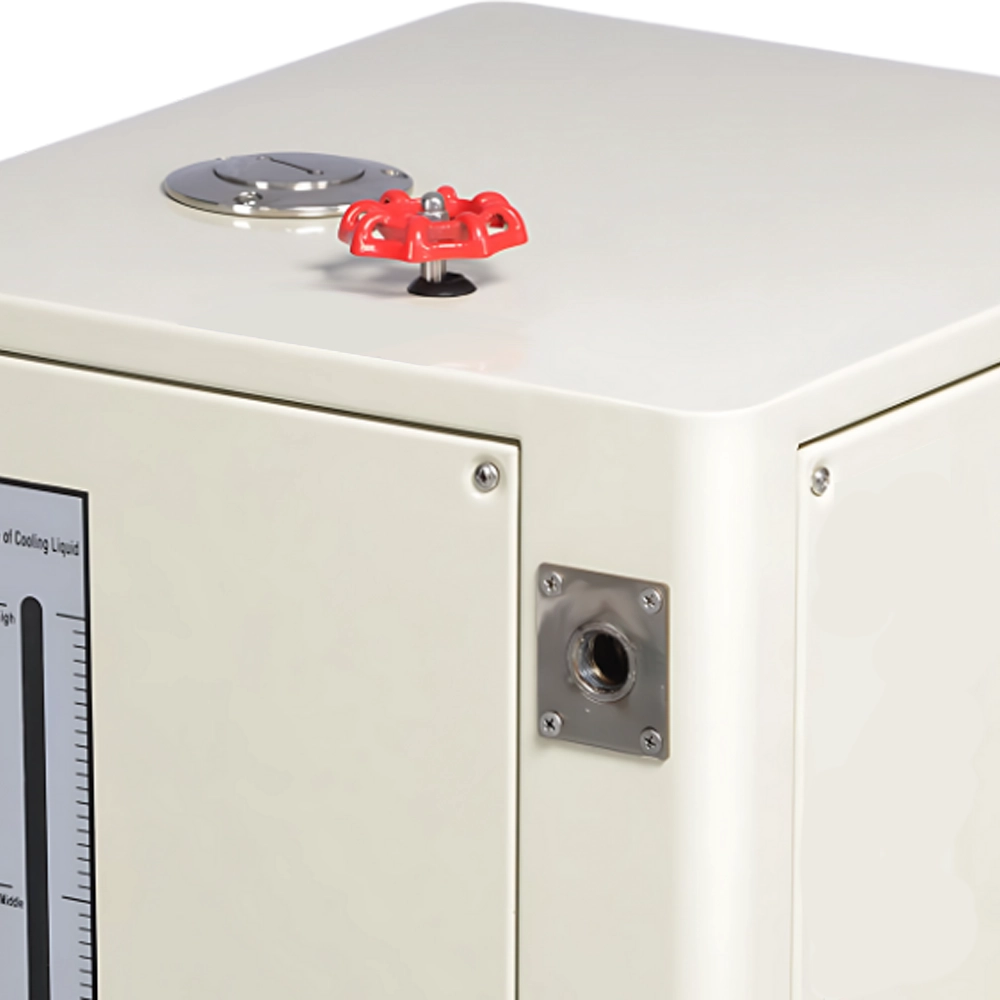

Heating Circulator NHTC-103 is designed with a capacity of 65L to handle large volumes of heat-conducting fluid. It features an oil-based electric heating system in a fully enclosed structure to prevent oil mist volatilization. Our unit allows for fast temperature adjustment by injecting cooling water to adapt to process demands. It includes a visual level indicator for easy monitoring of fluid levels. This circulator is equipped with an exhaust valve to eliminate gas buildup, ensuring smooth operation.
Stainless steel hose with thermal insulation (3.6 meters/piece),1pc
FAQ for Heating Circulator NHTC-103
1: Does the Heating Circulator NHTC-103 support remote monitoring?
Heating Circulator NHTC-103 offer RS232, USB, Ethernet, or Wi-Fi interfaces for remote operation and data logging using computer or mobile software.
2: Can Heating Circulator NHTC-103 be used with external applications?
Yes. They can be connected via external circulation ports to heat reactors, jacketed vessels, viscometers, or calibration baths.
3: What safety features are integrated into Heating Circulator NHTC-103?
Standard safety features include over-temperature cut-off, low liquid level warning, thermal protection, automatic shut-off, and password protection for settings.
4: Is the Heating Circulator NHTC-103 programmable?
Yes. Heating Circulator NHTC-103 support multi-step temperature programming, timer settings, and ramp/soak profiles for complex thermal processes.
5: Can the circulation speed be adjusted in Heating Circulator NHTC-103?
Yes. Heating Circulator NHTC-103 offer variable-speed pumps, allowing users to adjust flow rate based on their specific process requirements.
