Heating Circulator NHTC-108 offers a 3.8L capacity and operates across a temperature range of RT to 300°C. It is crafted with a robust stainless steel circulation system, enhancing both corrosion resistance and long-term reliability. Our unit features a closed circulation system that prevents oil mist, extending the life of the heat transfer fluid. It is designed with a large LCD and touch-button interface, ensuring simple and intuitive operation. This circulator includes casters for easy mobility, allowing convenient relocation.
| Capacity |
3.8L |
| Temperature range |
RT to 300°C |
| Temperature accuracy |
±0.5°C |
| Ambient temperature |
5 to 30°C |
| Ambient humidity |
45 to 80%RH |
| Circulating pump type |
Vortex pump |
| Circulating pump pressure |
2bar |
| Cycle interface |
DN-20 PN-10 flange interface |
| Cooling water interface |
DN15 |
| Rated flow |
35L/min |
| Heating method |
Electric heating |
| Cooling method |
Water cooling |
| Temperature sensor |
PT100 |
| Water cooler |
Plate heat exchanger |
| PLC control system |
Siemens S7-200smart |
| PLC protocol |
Modbus RTU protocol RS485 interface (optional RS232 Ethernet) |
| PLC operation panel |
7-inch Siemens color touch screen (optional 10-inch) |
| PLC programming |
5 programs can be edited, each with up to 40 steps |
| PLC control mode |
Material temperature and equipment outlet temperature can be switched automatically |
| PLC data output |
Support U disk data output, can be outputted temperature data in TXT format |
| Display |
LCD |
| Safety protection |
Self-diagnosis
High-pressure switch
Overload relay
Over-temperature alarm |
| Heating power |
5kW |
| Cooling capacity (300°C) |
5kW |
| Cooling capacity (200°C) |
5kW |
| Cooling capacity (100°C) |
4kW |
| Cooling capacity (65°C) |
1.8kW |
| Power consumption |
6.2kW |
| Power supply |
220V/380V/480V, 50/60Hz, 3P |
| Weight |
95kg |
Stainless steel hose with thermal insulation (3.6 meters/piece),1pc
FAQ for Heating Circulator NHTC-108
1: Does Heating Circulator NHTC-108 have mobile app support?
Heating Circulator NHTC-108 offer Bluetooth or Wi-Fi connectivity, allowing users to monitor and control the system via dedicated mobile apps.
2: How is temperature ramping handled in Heating Circulator NHTC-108?
Heating Circulator NHTC-108 allows programmable ramping, enabling gradual temperature changes to prevent thermal shock or sample degradation.
3: Are noise levels a concern with Heating Circulator NHTC-108?
Heating Circulator NHTC-108 is engineered for quiet operation, with noise-reducing motors and insulated pump compartments, making it suitable for lab environments.
4: Can multiple devices be synchronized with Heating Circulator NHTC-108?
Yes, depending on the pump power and flow capacity, a single unit can be connected to multiple external applications with proper tubing and flow control.
5: What kind of user feedback is displayed during operation?
Heating Circulator NHTC-108 displays real-time temperature, setpoint, pump status, error codes, heating mode, and sometimes even fluid level or elapsed time.

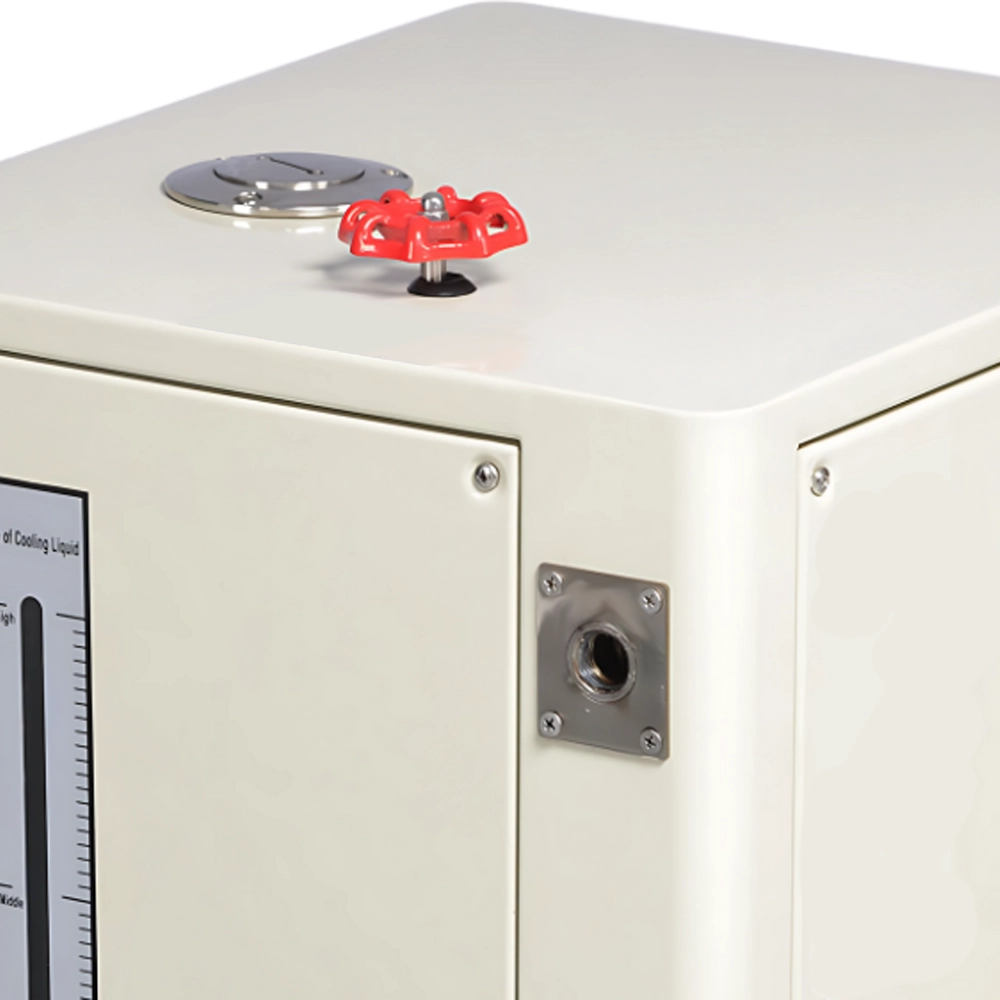

.webp "Heating Circulator NHTC-108")

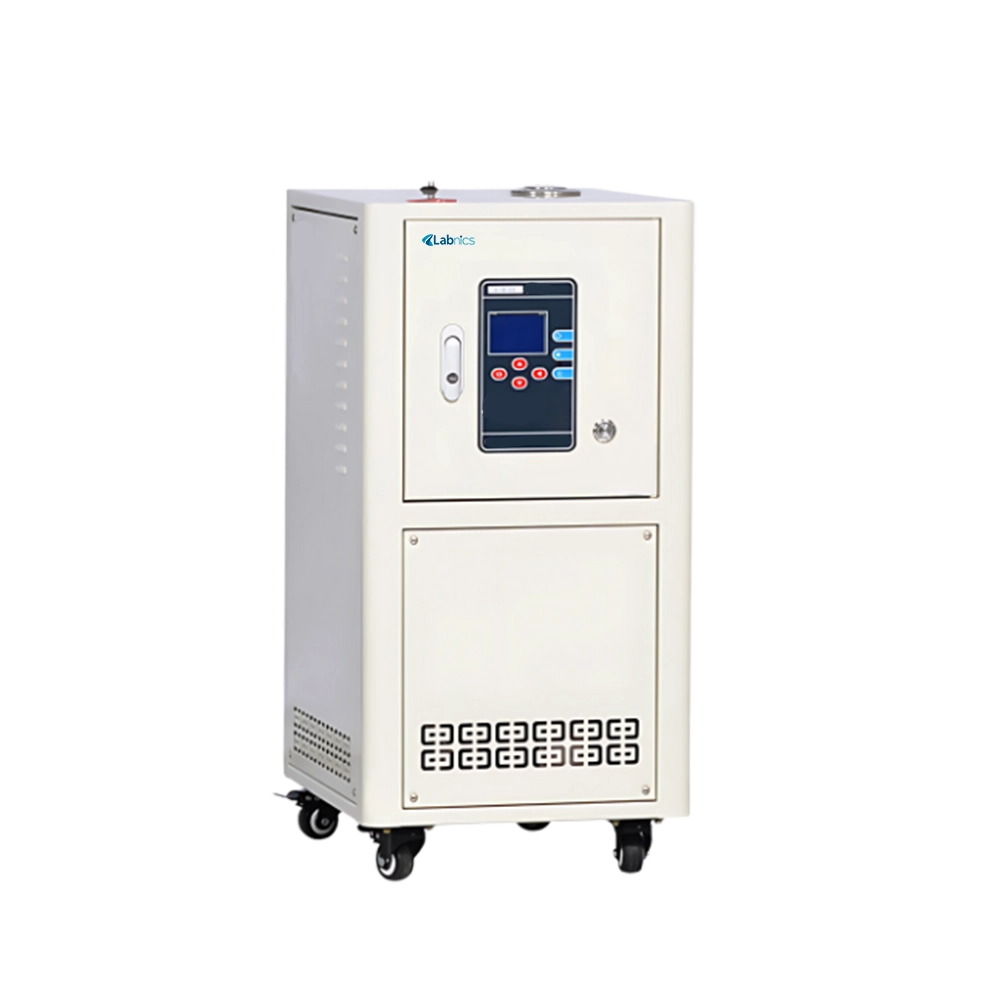

.webp "Heating Circulator NHTC-108")

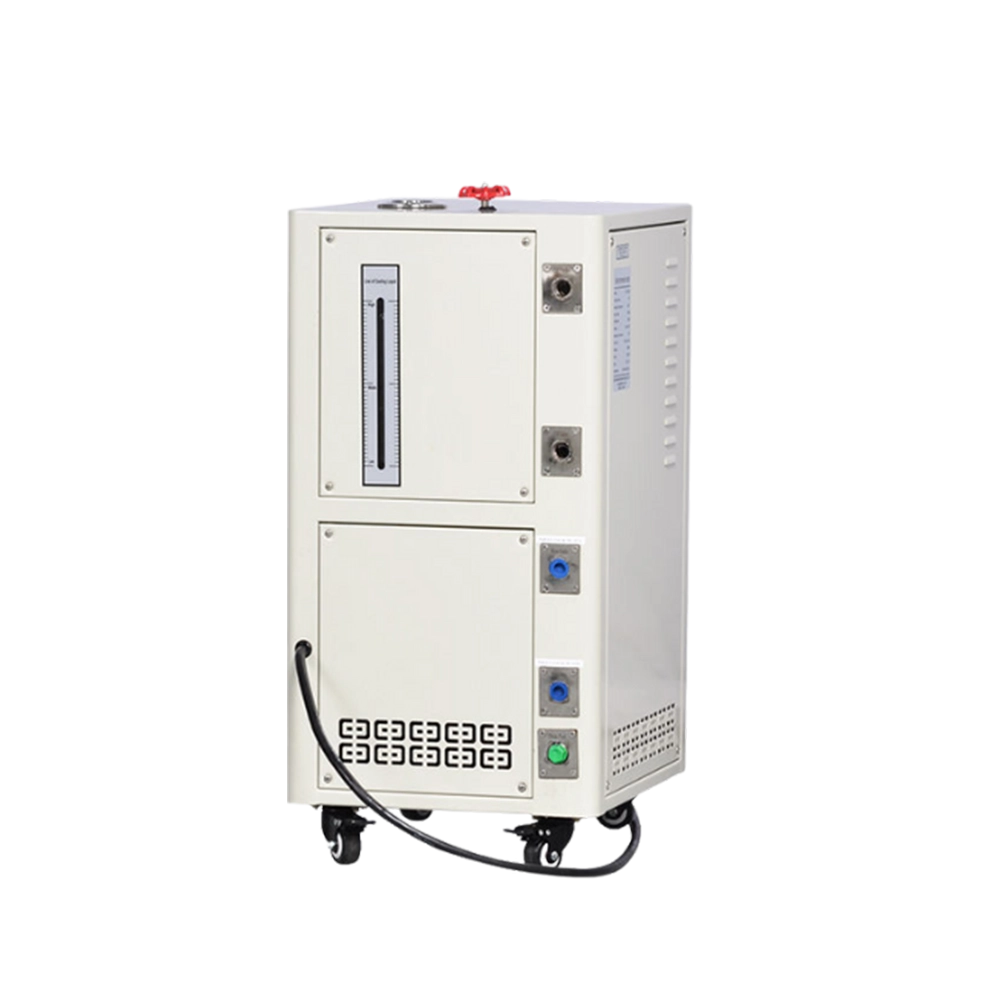

.webp "Heating Circulator NHTC-108")

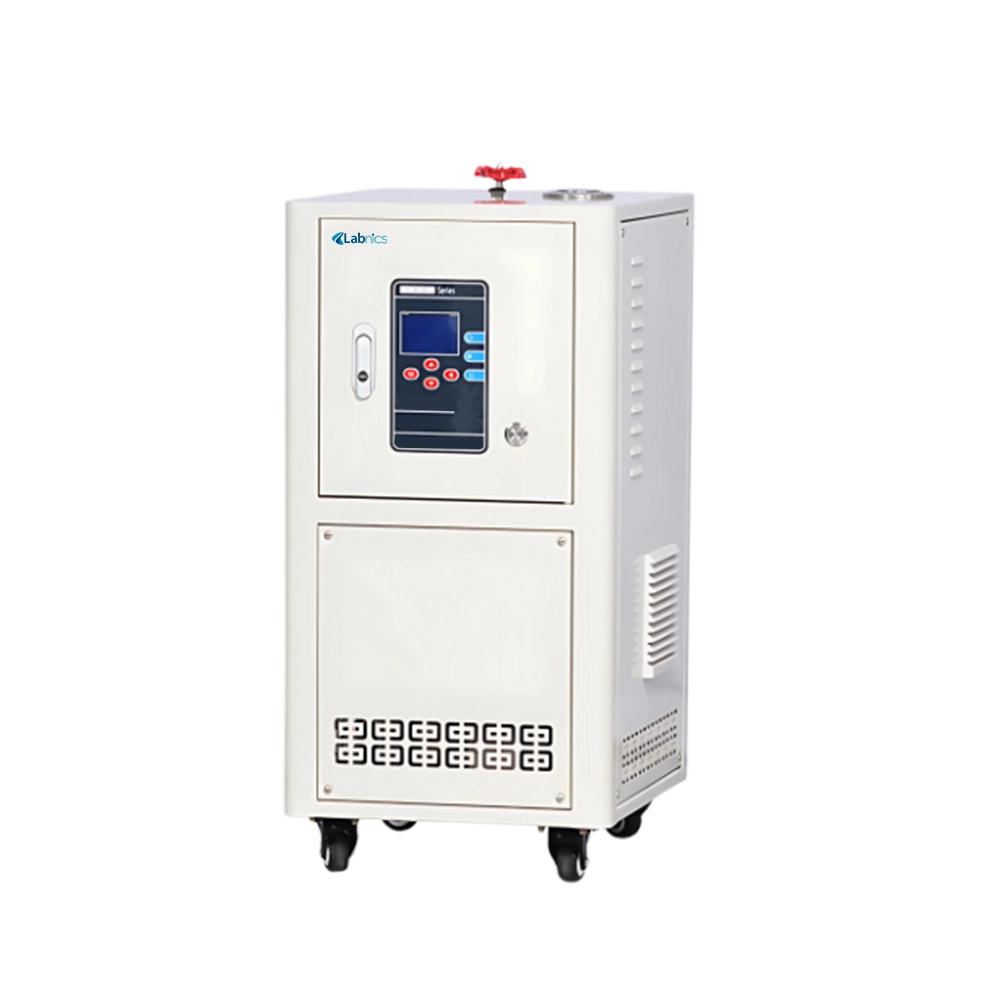

.webp "Heating Circulator NHTC-108")
