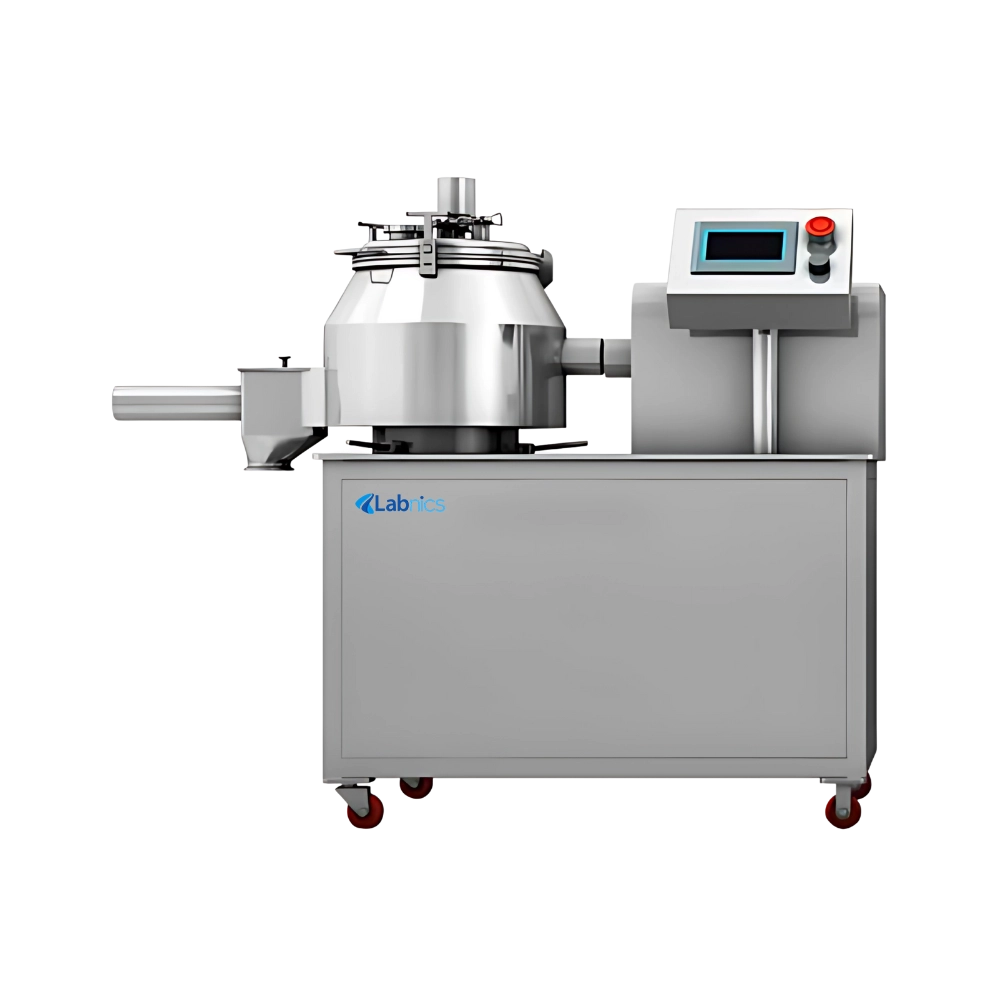

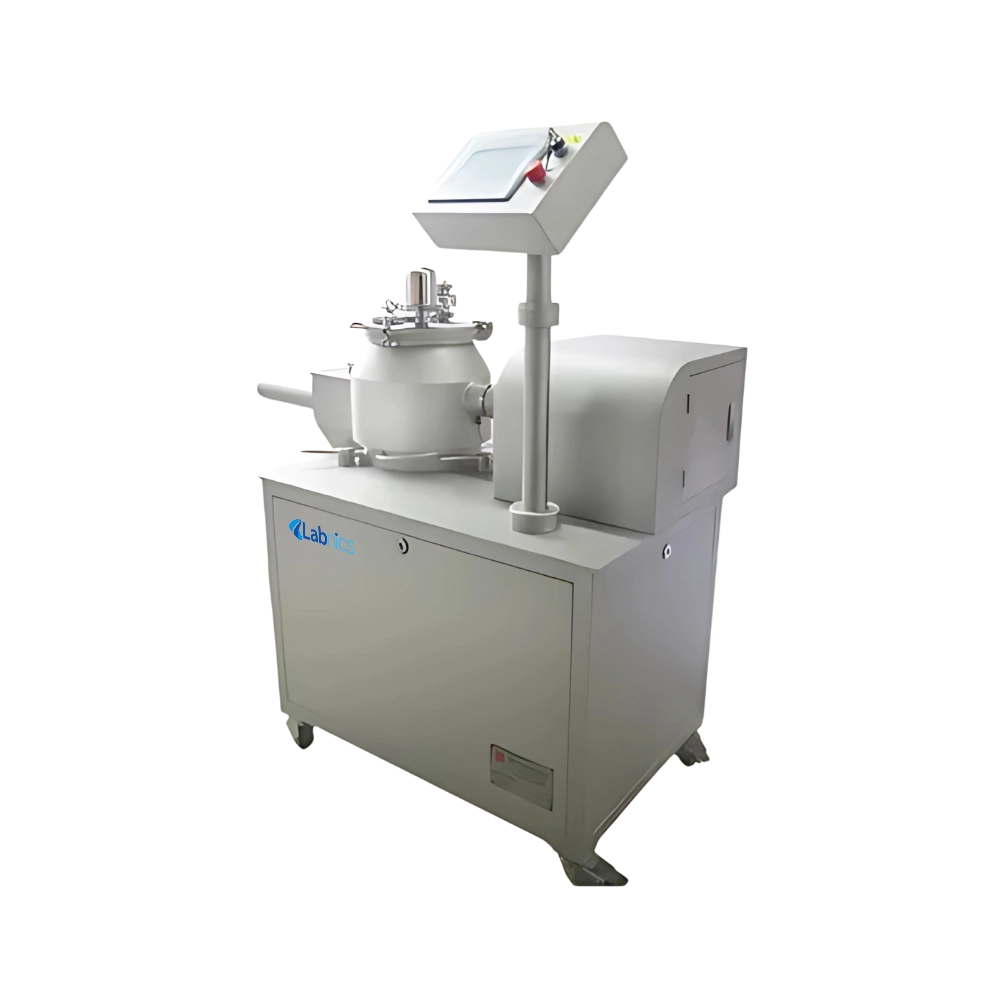

High Speed Mixer Granulator NHMG-100 comes with a 50L granulating pot and supports a 10 to 20kg batch capacity. It features VFD-controlled impeller and chopper motors for precise speed control. Our unit includes a transparent lid and manual discharging for ease of operation and monitoring. This integrates PLC control with multi-level access and recipe management. It is constructed with 316L stainless steel and designed for mobility with wheels and a platform.
$56,000.00
Specifications
| Production Capacity | 10 to 20 kg per batch |
| Mixing motor power | 4 kW |
| Mixing impeller rotation speed | 15 to 220 rpm |
| Granulating motor power | 2.2 kW |
| Granulating chopper speed | 300 to 2800 rpm |
| Compressed air consumption | 0.1 m³/min |
| Compressed air pressure | 0.3 to 0.6 MPa |
| Power Consumption | 6.2kw |
| Power Supply | 380V, 50Hz |
| Packaging Dimensions (W × D × H) | 1580 × 980 × 2000 mm |
| Net Weight | 660 kg |
| Gross Weight | 740 kg |
Features
Applications
Optional Accessories
Motor
Explosion proof design
Control system with higher configuration
Control system of higher configuration
Printer
Power switch
25L Interchangeable granulating pot
10L Interchangeable granulating pot
Pneumatic auto discharging system
Wet co-mill
Wet cone mill screen
Binder spraying system
Peristaltic pump
Spraying nozzle
Extra nozzle needle inserts 1
Spraying nozzle
Extra nozzle needle inserts 2
Wearing parts
Ask Expert
FAQ for High Speed Mixer Granulator NHMG-100
1: Can the High Speed Mixer Granulator NHMG-100 handle both wet and dry granulation?
Yes, it supports both wet granulation by adding binder solutions and initial dry blending steps in dry granulation processes.
2: What is the typical batch size of the NHMG-100 High Speed Mixer Granulator?
Our High Speed Mixer Granulator supports batch sizes ranging from 10 to 20 kg, ideal for R and D and pilot-scale production.
3: Is the granulator suitable for scale-up studies?
Yes, it's ideal for pilot-scale production and R and D, making it excellent for scale-up process validation
4: How is the material discharged from the bowl?
This unit includes a manual discharging system for controlled and easy unloading of granulated material.
5: What safety features are included in model NHMG-100?
It includes safety interlocks, emergency stop buttons, and lid sensors to ensure operator protection.
High Speed Mixer Granulator are designed for fast and efficient processing of powder materials into uniform granules. They support both wet and dry granulation processes, effectively handling multiple formulations. These units operate with a rapid impeller and chopper mechanism to achieve homogeneous granules. They reduce processing time significantly, increasing overall productivity. These are widely used in the pharmaceutical, food, and chemical industries for precise and consistent results.
