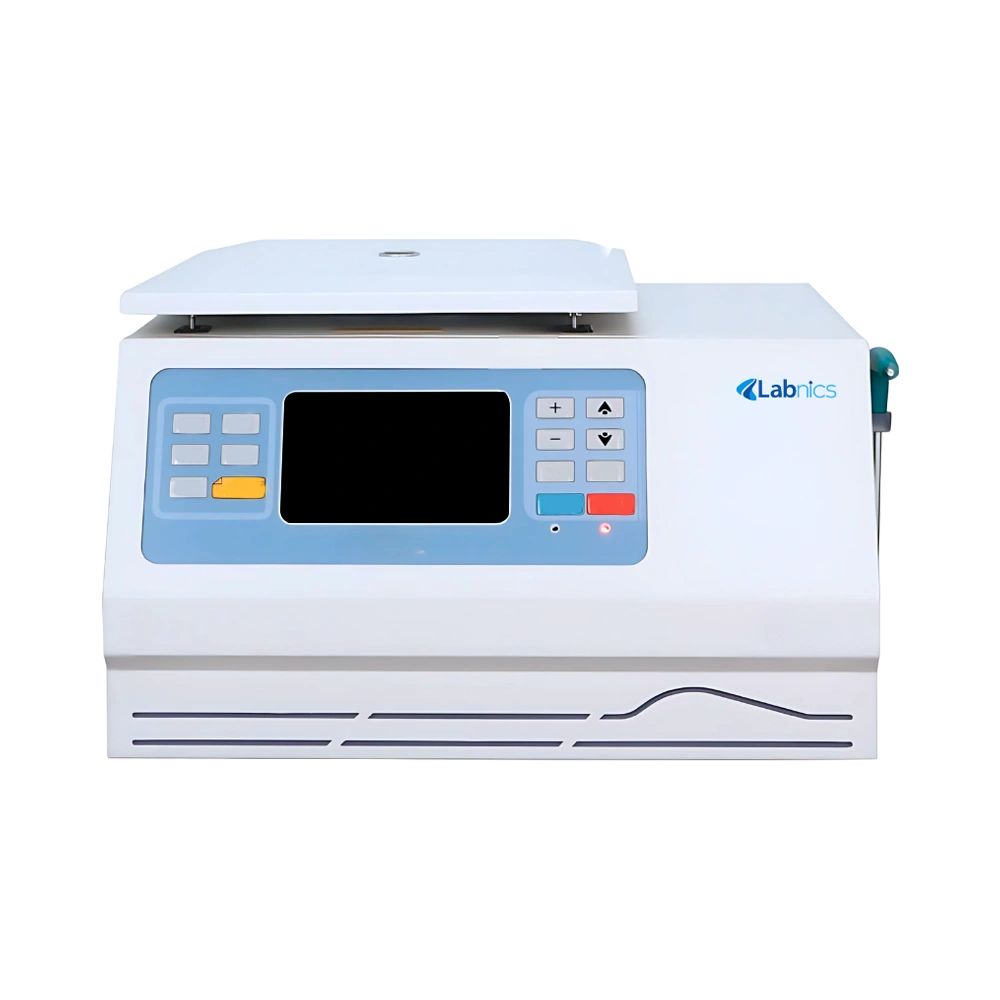

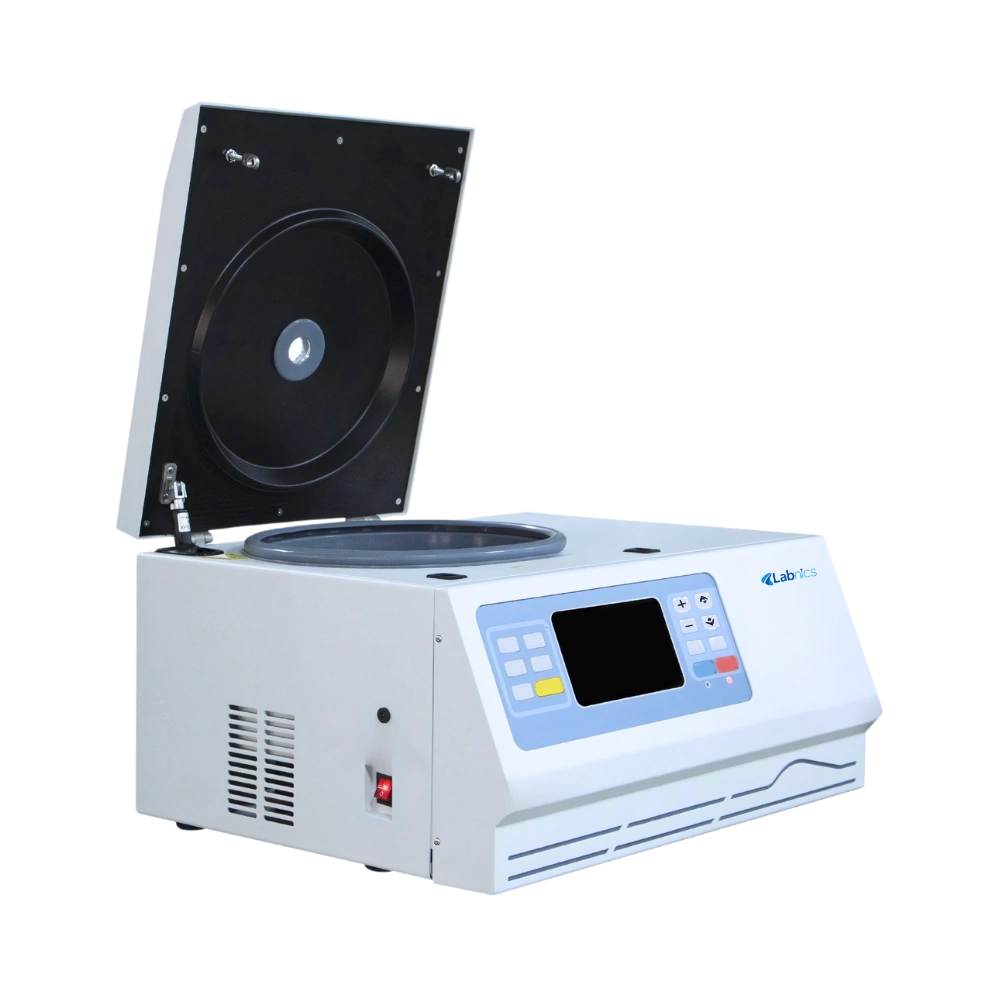

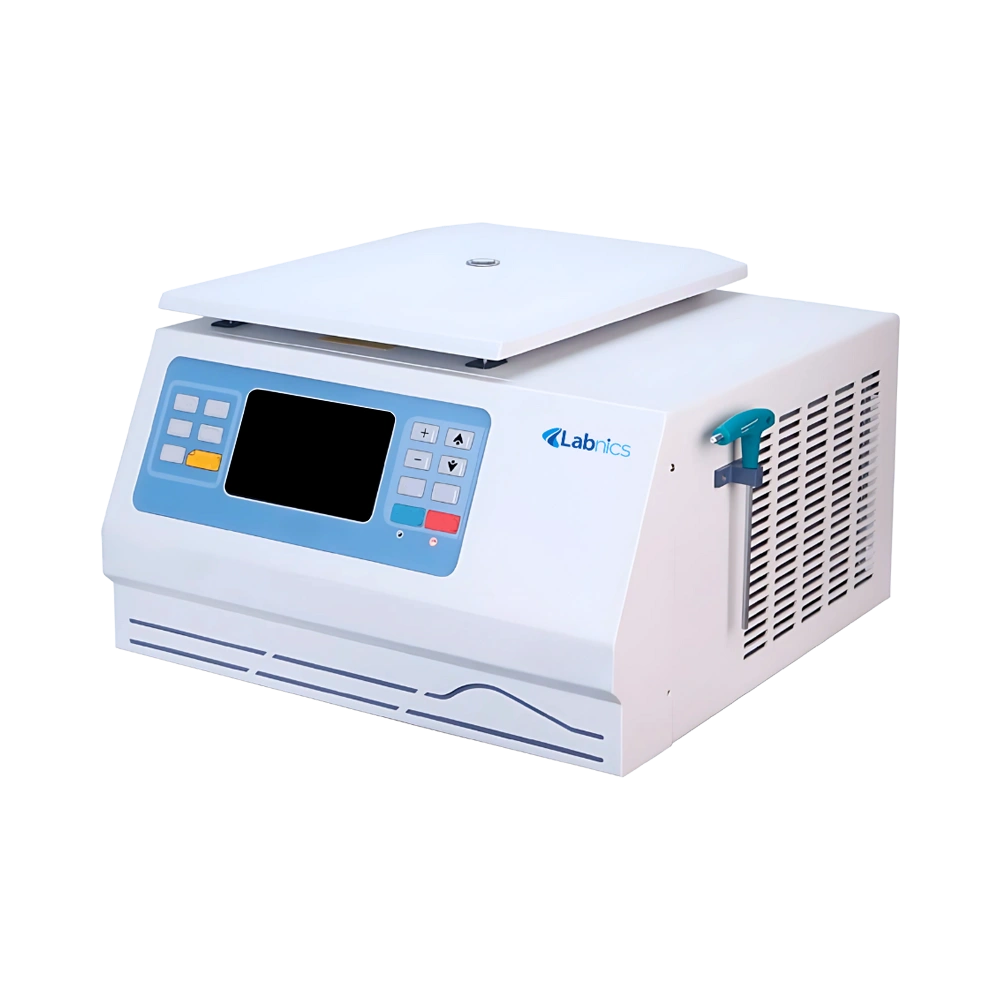

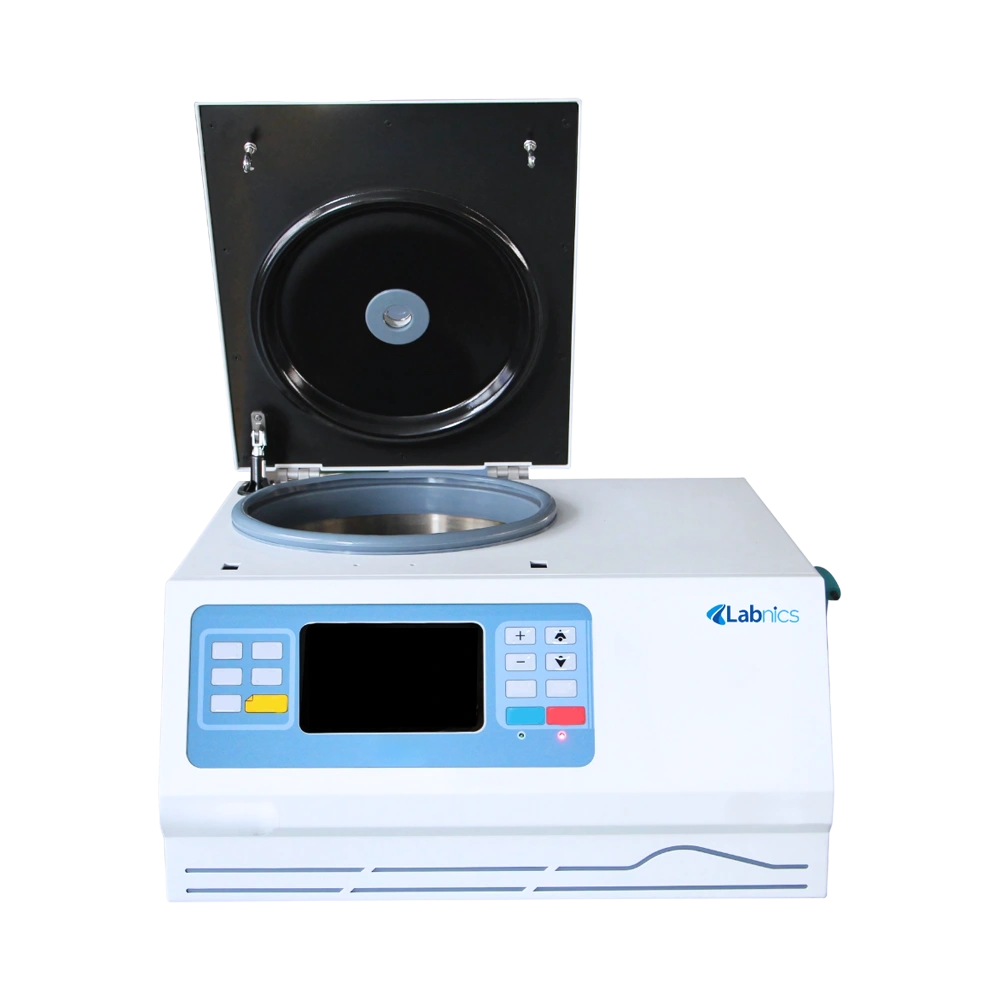

High Speed Refrigerated Centrifuge NHRC-104

High Speed Refrigerated Centrifuge NHRC-104

High Speed Refrigerated Centrifuge NHRC-104 supports a maximum speed of 20000 rpm and delivers a maximum RCF of 32868 × g. It operates efficiently within a temperature range of -20°C to 40°C. This unit features an electric door lock mechanism that allows the lid to open automatically after centrifugation. It offers two timing modes to provide operational flexibility. Our centrifuge uses a microcomputer-controlled AC frequency conversion brushless motor for stable operation.


$4,925.00

Catalog

Specifications

Maximum speed 20000 rpm
Maximum RCF 32868 × g
Maximum capacity 4 × 100 ml
Timer 1 to 99h 59min 59s
Revolutions/min ±10 r/min
Temperature range -20℃ to 40℃
Temperature accuracy ±1.0℃
Noise level ≤ 60dB(A)
Power consumption 1200W
Power supply AC 220±22V 50Hz 15A
Product dimension 610×560×370mm
Packaging dimension 710×660×470mm
Net weight 118kg
Gross weight 128kg

Features

  • Program storage capacity
  • LCD screen interface
  • Instant spin function
  • Safety lock system
  • Overheat protection
  • Stainless steel chamber
  • Anti-corrosion coating
  • Eco-friendly refrigeration

Applications

  • High Speed Refrigerated Centrifuge NHRC-104 is used to separate biological or chemical substances based on density through high-speed centrifugation. It is widely employed in clinical laboratories, research institutions, pharmaceutical labs, and biotechnology facilities.

Standard Accessories

Angle rotor 6×50ml (conical/round bottom)- 1 set

Adapter 6×15ml (conical bottom)- 1 set

Optional Accessories

Rotor Type

Maximum Capacity

Maximum Speed

Maximum RCF

Angle Rotor 01

24×1.5/2.0ml

18000rpm

31115×g

Angle Rotor 02

12×5ml

15000rpm

18306×g

Angle Rotor 03

32×1.5/2.2ml

14000rpm

19940×g

Angle Rotor 04

8×8×0.2ml PCR row

14000rpm

15032×g

Angle Rotor 05

48×1.5/2.0ml

13000rpm

18327×g

Angle Rotor 06

12×10ml

13000rpm

15228×g

Angle Rotor 07

12×15ml/Conical bottom

11000rpm

13730×g

Angle Rotor 08

4×100ml

11000rpm

14298×g

Swing-out Rotor 01

24×1.5/2.2ml

13000rpm

16816×g

Swing-out Rotor 02

4×100ml

4500rpm

3010×g

Swing-out Rotor 03

Microplate 2×2×96ml

4000rpm

2057×g

Swing-out Rotor 04

8×50ml conical bottom/ disk

4000rpm

2680×g

Ask Expert

FAQ for High Speed Refrigerated Centrifuge NHRC-104

1: How eco-friendly is the refrigeration system?

The High Speed Refrigerated Centrifuge uses an environmentally friendly refrigeration system with special thermal insulation. It minimizes energy consumption while maintaining accurate temperature control.

2: How accurate is the temperature control?

Our High Speed Refrigerated Centrifuge maintains temperature with an accuracy of ±1.0?, ensuring that sensitive samples remain stable throughout the process. This is essential for experiments requiring precise thermal conditions.

3: What safety features are included in the High Speed Refrigerated Centrifuge NHRC-104?

Our High Speed Refrigerated Centrifuge has multiple safety systems, including over-speed, overheat, and imbalance protection. There's also an automatic lid lock for added operational security.

4: Can the High Speed Refrigerated Centrifuge NHRC-104 handle imbalanced loads safely?

Yes, the High Speed Refrigerated Centrifuge has an automatic imbalance detection system that protects the machine by stopping operation if the imbalance is detected. This feature prevents damage and enhances user safety.

5: How often should routine maintenance be performed?

Routine maintenance is recommended every 3 to 6 months, depending on usage frequency. Regular checks help ensure optimal performance and prolong the lifespan of the centrifuge.

Related Models Of High Speed Refrigerated Centrifuge

Labnics High Speed Refrigerated Centrifuge features an eco-friendly refrigeration system to maintain optimal conditions. They include user-friendly interface with touchscreen display for real-time monitoring. Our centrifuge models include multiple safety protections to ensure secure and reliable operation. They feature multiple preset programs for enhanced convenience and accurate sample processing. These units are constructed with a stainless-steel chamber for enhanced durability.
