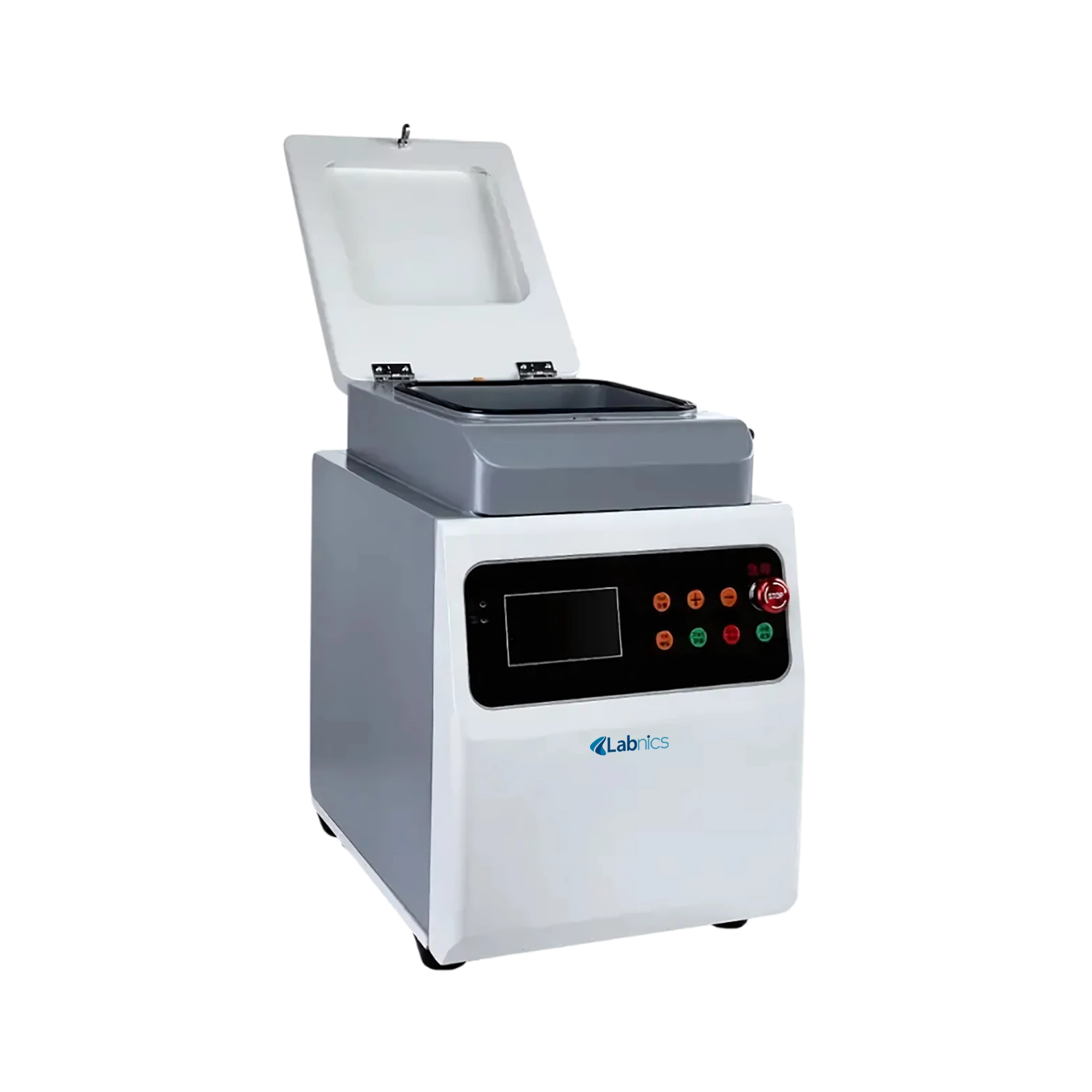

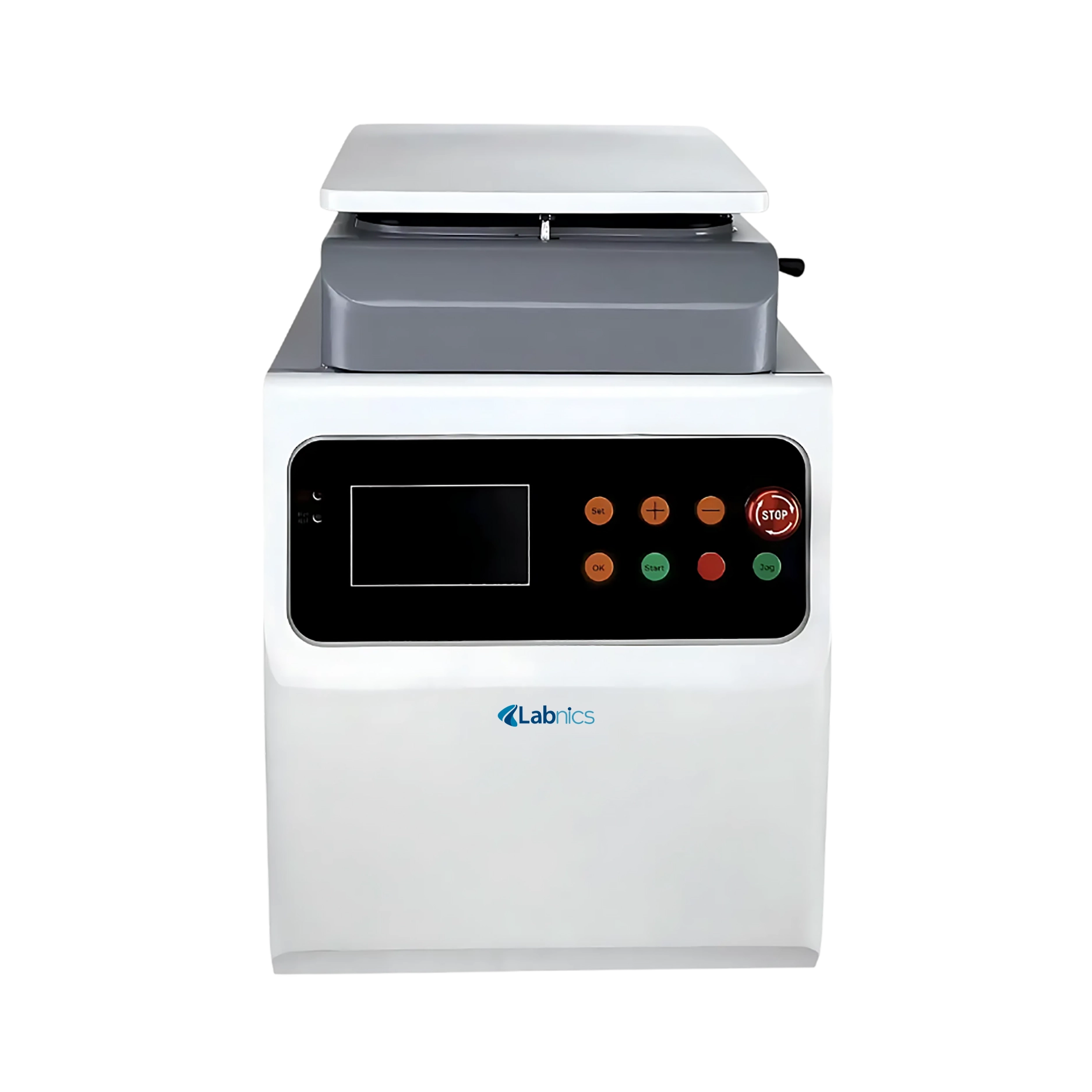

High Throughput Tissue Grinder NHTG-201

High Throughput Tissue Grinder NHTG-201 offers a final particle size of approximately 5 µm along with a timer range from 0 seconds to 99 minutes. It is equipped with safety lock protection to ensure secure operation. Our unit is built with a shockproof design for stable performance during high-speed grinding. It features durable construction to support long-term, high-performance use. This system utilizes advanced grinding technology to deliver efficient and precise sample processing.

---

$3,988.00

Buy Now Catalog

Specifications

Sample handling capacity	24 × (0.2 to 0.5 ml) 24 × 2 ml 16 × 5 ml 12 × 5 ml 8 × (7 to 15 ml) 4 × 25 ml 2 × 50 ml
Vibration frequency range	10 to 70 Hz/min
Grinding method	Dry, wet, cryogenic grinding
Final Particle Size	Approximately 5 µm
Noise level	<65 dB
Timer range	0 seconds to 99 minutes
Acceleration Time	Within 2 seconds
Deceleration Time	Within 2 seconds
Grinding tool material	Alloy steel, PTFE
Grinding ball material	Alloy steel, Chromium, Zirconium oxide, Tungsten carbide, Silica
Grinding ball size	0.1 to 30 mm
Power supply	220 V / 50 Hz, 2 phases
Dimension	280 × 400 × 530 mm
Weight	40 kg

Features

• Anti-slip foot pad
• Built-in program controller
• LCD display
• Customizable settings
• Vertical oscillating motion

Applications

• High Throughput Tissue Grinder NHTG-201<strong> </strong>is ideal for applications involving tissue disruption, nucleic acid extraction, and sample preparation across biological, pharmaceutical, and environmental research.

Optional Accessories

PE/PTFE square adapter × 1 set

Metal adapter × 1 set
