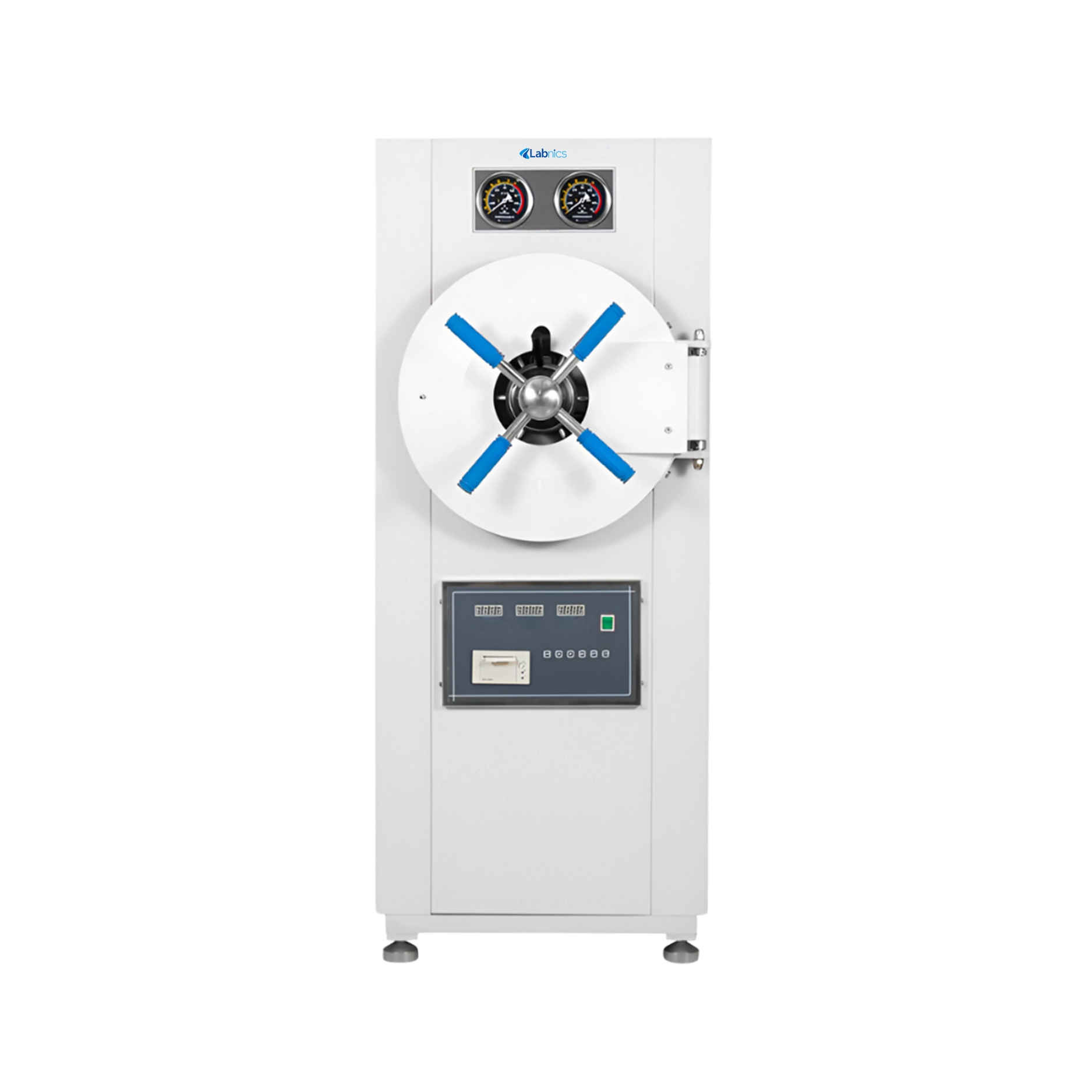

Horizontal Autoclave NHA-201 is designed with a spacious 200L capacity, allowing for large sterilization volumes in each cycle. It provides a temperature range of 40°C to 134°C for versatile use. This unit includes a safety lock system to prevent door opening until pressure drops. It operates with an advanced computerized control system for consistent results. Our horizontal autoclave has water level sensors that automatically monitor and alert the operator when levels are low.
$7,100.00
Specifications
| Capacity | 200L |
| Chamber volume | 515×1000mm |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Temperature range | 40°C to 134°C |
| Heat average | ≤±2°C |
| Sterilization time | 0 to 99min |
| Drying time | 0 to 99min |
| Body | Stainless steel |
| Total CBM | 2.669CBM |
| Power consumption | 9kW |
| Power supply | AC380, 50Hz |
| Overall dimension | 1400×750×1700mm |
| Packaging dimension | 1560×910×1880mm |
| Gross weight | 469kg |
| Net weight | 404kg |
Features
Applications
Ask Expert
FAQ for Horizontal Autoclave NHA-201
1: How does the door system of the Horizontal Autoclave NHA-201 enhance safety?
The Horizontal Autoclave NHA-201 is designed with a swift lock door closure and a door opening pressure threshold feature, preventing the door from opening when the internal pressure is above safe levels.
2: What control features are integrated into the Horizontal Autoclave NHA-201?
Our Horizontal Autoclave NHA-201 features an advanced computerized control system with a digital display panel, allowing accurate monitoring and easy programming of sterilization parameters.
3: Can the Horizontal Autoclave NHA-201 operate at variable temperatures?
Yes, the Horizontal Autoclave NHA-201 supports a temperature range from 40°C to 134°C, making it versatile for different sterilization needs, from sensitive lab items to high-temperature cycles.
4: Does the Horizontal Autoclave NHA-201 offer a drying function after sterilization?
The Horizontal Autoclave NHA-201 includes a drying time setting of up to 99 minutes, ensuring that sterilized items are thoroughly dried and ready for immediate use or storage.
5: How does the Horizontal Autoclave NHA-201 manage water levels during operation?
The Horizontal Autoclave NHA-201 is equipped with automatic water level sensors that alert the user when water is low, preventing operational issues and ensuring consistent sterilization performance.
Labnics Horizontal Autoclave includes safety features such as over-temperature and pressure protection. They offer automatic-controlled functions for smooth and efficient sterilization operations. These autoclaves have a drying option for the complete drying of items after the process. They include an automatic shutdown control after sterilization for safety. Our units are equipped with LED displays for clear and easy monitoring.
