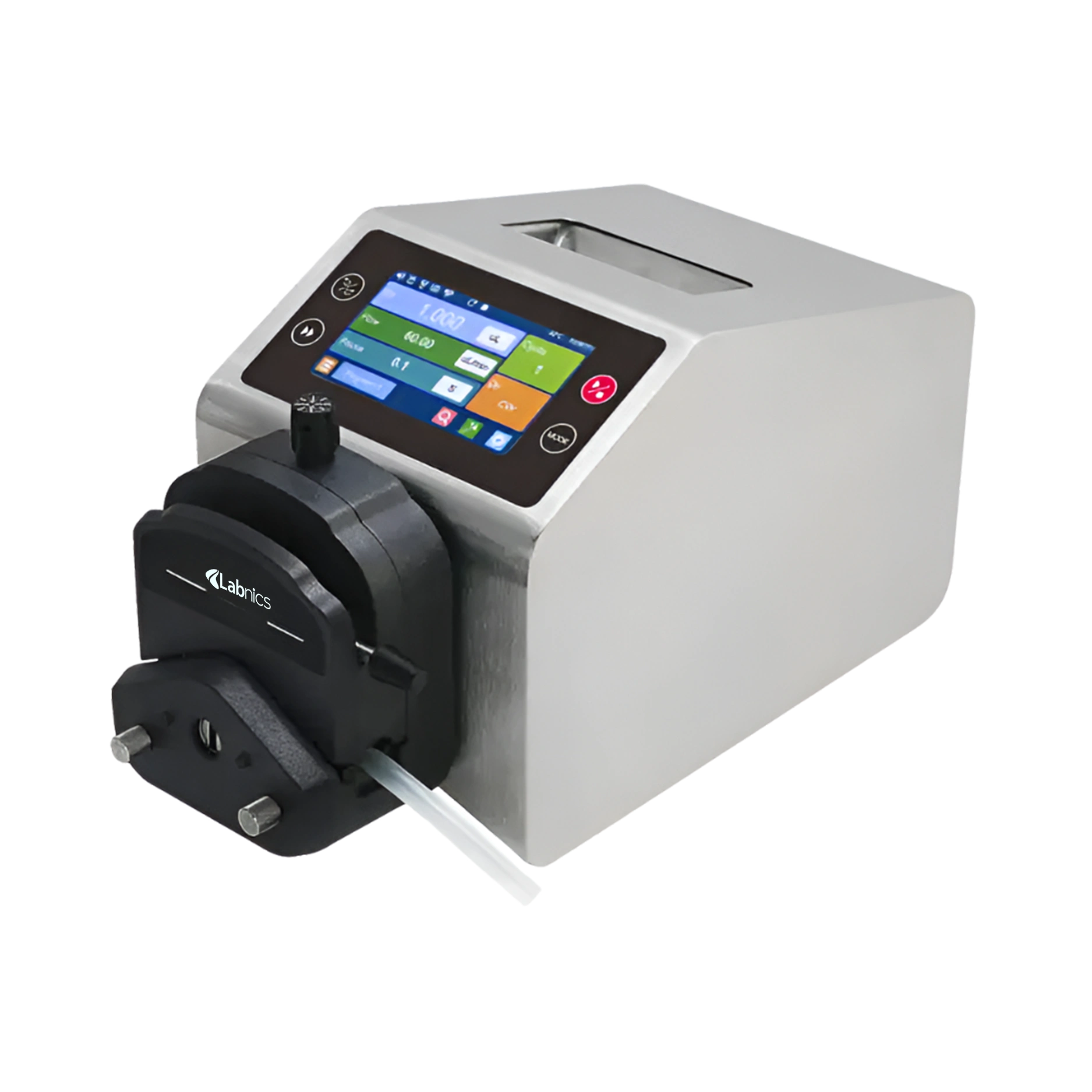

Intelligent Flow Peristaltic Pump NIFPP-200 delivers a flow range of 0.005 to 3000 mL/min with speed accuracy of <±0.2% for precise fluid control. This pump features programmable dispensing with adjustable delay start and stop settings. Our unit supports RS-485 communication and MODBUS protocol for seamless integration. It offers flexible external control options, including digital signals and analog inputs. It includes a user-friendly interface with adjustable time units for easy monitoring.
| Flow range |
0.005 to 3000mL/min |
| Speed range |
0.1 to 600 rpm |
| Speed resolution |
0.1 rpm |
| Speed accuracy |
<±0.2% |
| Working environment |
Temperature 0 to 40℃ |
| Relative humidity |
<80% |
| Delayed startup time |
0.1 to 999.9 S/Min/H |
| Delay stop time |
0.1 to 999.9 S/Min/H |
| Dispensing time |
0.1 to 99.99 S/Min/H, time unit adjustable |
| Dispensing number |
1 to 999, 0 Infinite cycle |
| Dispensing interval |
0.1 to 999 S/Min/H |
| IP grade |
IP31 |
| Communication interface |
RS485 communication interface, MODBUS protocol is available |
| External control interface |
External control input level 5V, 12V (standard), 24V (optional), External control analog 0 to 5V (standard), 0 to 10V, 4 to 20mA (optional) |
| Power consumption |
<40W |
| Power supply |
AC 100 to 240V，50Hz/60Hz |
| Dimension (L×W×H） |
292×160×183mm |
| Weight |
4.5 kg |
FAQ for Intelligent Flow Peristaltic Pump NIFPP-200
1: How does the IP66 rating benefit the Intelligent Flow Peristaltic Pump NIFPP-200 in industrial environments?
The Intelligent Flow Peristaltic Pump NIFPP-200 is designed with an IP66 rating, making it dust-tight and resistant to powerful water jets. This ensures reliable performance and easy cleaning in demanding industrial settings.
2: How does the intelligent control system improve user operation on the Intelligent Flow Peristaltic Pump NIFPP-200?
Equipped with a 4.3-inch color LCD touch screen and buttons, the Intelligent Flow Peristaltic Pump NIFPP-200 offers easy operation with real-time animation showing flow rate, system status, and parameter settings all on one screen for enhanced usability.
3: What is the benefit of the three levels of permission management in the Intelligent Flow Peristaltic Pump NIFPP-200?
The Intelligent Flow Peristaltic Pump NIFPP-200 features three permission levels to manage user access, which prevents unauthorized changes and reduces misoperation risks, enhancing operational safety.
4: How does the aluminum alloy body of the Intelligent Flow Peristaltic Pump NIFPP-200 enhance its performance?
The aluminum alloy body of the Intelligent Flow Peristaltic Pump NIFPP-200 provides excellent heat dissipation for stable long-term operation, and the pump automatically stops when the cover is opened to protect users.
5: Is the Intelligent Flow Peristaltic Pump NIFPP-200 compliant with industry standards?
This Intelligent Flow Peristaltic Pump NIFPP-200 complies with GMP certification requirements, ensuring it meets strict hygiene and safety standards for pharmaceutical and industrial use.
