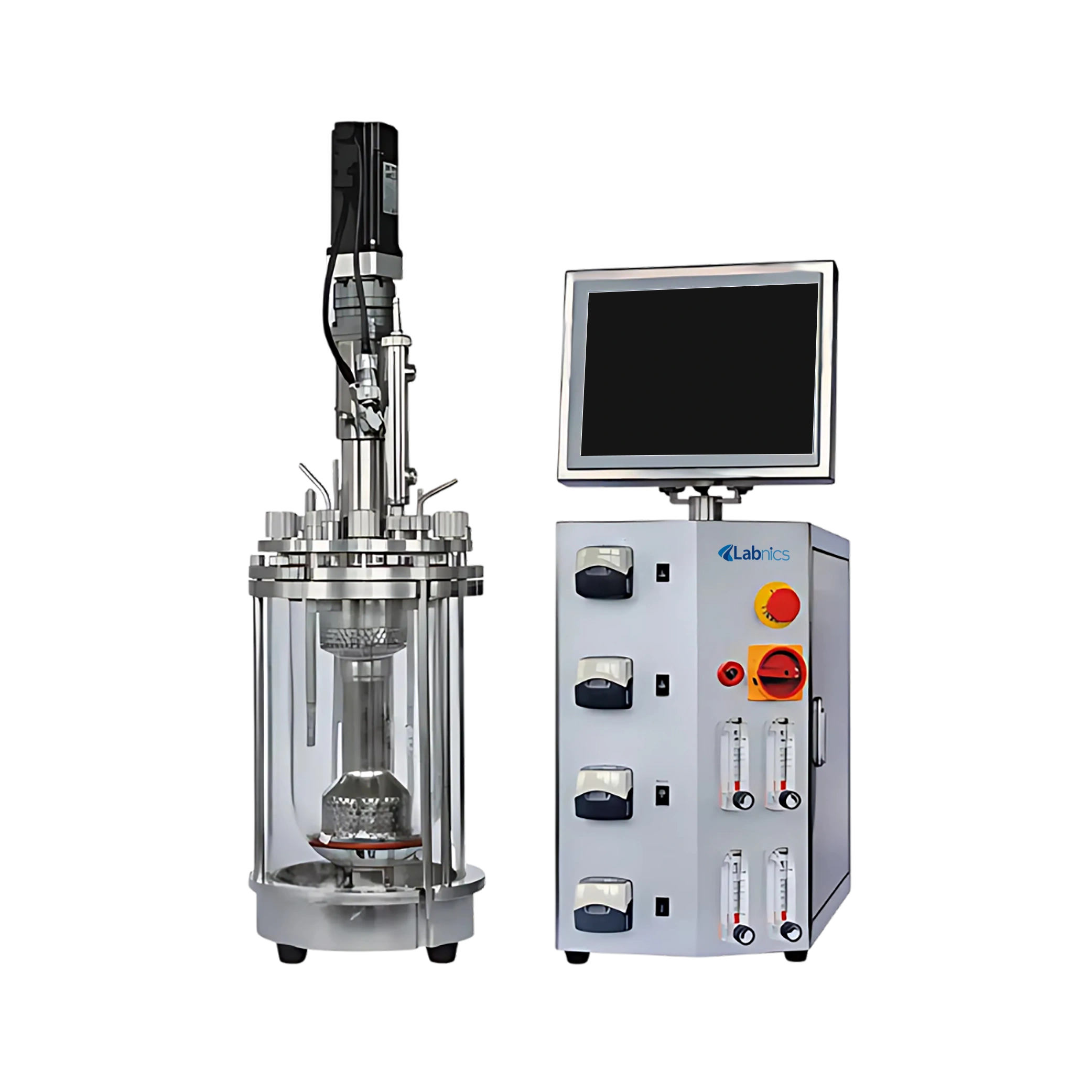

Jacketed Glass Reactor NJGR-402 is a compact and versatile bioreactor with a total volume of 15 L. It offers speed range from 50-1000 rpm to enhance nutrient exchange during culture. This system includes a turbine agitator for efficient mixing and deep aeration without damaging microorganisms. It includes four peristaltic pumps and a servo motor for stable and flexible operation. Our model is built with an industrial touchscreen, ensuring precise PID control and an intuitive user experience.
| Total Volume |
15 L |
| Working Volume |
10.5 L |
| Tank Material |
Borosilicate glass |
| Top Cover |
Equipped with various process ports |
| Stirring Method |
Top mixing, servo motor, PID control |
| Speed Range |
50 to 1000 rpm |
| Impeller Type |
Plow type impeller |
| pH Measurement |
Mettler or Hamilton, 0 to 14PH, PID control, accuracy: ±0.02 |
| DO Measurement |
Mettler or Hamilton, 0 to 200%, PID control, accuracy: ±2% |
| Liquid Level Sensor |
Stainless steel probe, PID control, 1 to 2 probes |
| Temperature Sensor |
Compact transmitter, accuracy: ±0.1°C |
| Gas Flow Control |
Thermal mass flow controller (0.1 to 5 SLPM) |
| Inlet Filter |
37 mm, 0.2 µm, PTFE |
| Outlet Filter |
50 mm, 0.2 µm, PTFE |
| Exhaust Condenser |
316 L stainless steel |
| Liquid Feeding |
4 peristaltic pumps, 30 rpm, 0 to 100% adjustable time |
| Temperature Control Method |
PID regulation, via cooling water or electric heating blanket |
| Temperature Control Accuracy |
Display: ±0.1°C, Control: ±0.2°C |
| Control System |
5°C to 65°C above cooling water temperature |
| Power consumption |
2 Kw, 10 A |
| Power supply |
210 to 230V, 50 to 60 Hz |
| Sterilization size (Ø × H) |
300 × 720 mm |
| Product Dimension (Ø × H) |
330 × 910 mm |
FAQ for Jacketed Glass Reactor NJGR-402
1: Can Jacketed Glass Reactor NJGR-402 be used for both heating and cooling?
Yes, Jacketed Glass Reactor NJGR-402 supports both heating and cooling operations through its dual-layered jacketed design.
2: Can solvents be recovered during reactions?
Yes, Labnics Jacketed Glass Reactor NJGR-402 can be equipped with a reflux condenser for solvent recovery.
3: Can Jacketed Glass Reactor NJGR-402 handle continuous reactions?
Yes, Jacketed Glass Reactor NJGR-402 supports continuous operation with appropriate inlet and outlet fittings.
4: Is the reactor compatible with external chillers or heaters?
Yes, Labnics Jacketed Glass Reactor NJGR-402 connects easily with circulators or heating baths for fluid temperature regulation.
5: How does temperature regulation work in this Jacketed Glass Reactor?
Temperature control is achieved by circulating heating or cooling fluids through the jacket surrounding the reactor vessel. This allows for consistent and even heating or cooling during reactions, which is essential for sensitive chemical processes. The system helps prevent overheating or undercooling, improving reaction reliability.
6: Is cleaning the Jacketed Glass Reactor simple?
The smooth borosilicate glass surface makes cleaning easy and prevents chemical residues from sticking. Its corrosion resistance means fewer worries about damage during maintenance. Regular cleaning helps maintain optimal performance and safety.
7: How safe is the Jacketed Glass Reactor for daily use?
Constructed from tempered borosilicate glass, the reactor is resistant to breakage and thermal shock, ensuring safety during operation. The transparent design allows continuous visual monitoring, helping detect any issues early. Overall, it is designed to offer both reliability and user safety.
8: Can the Jacketed Glass Reactor handle aggressive chemicals safely?
Yes, the borosilicate glass is highly resistant to most acids, bases, and solvents, making it suitable for handling aggressive chemicals. This chemical resistance helps prevent contamination and maintains the purity of your reactions. It ensures safe use with a wide range of substances.
