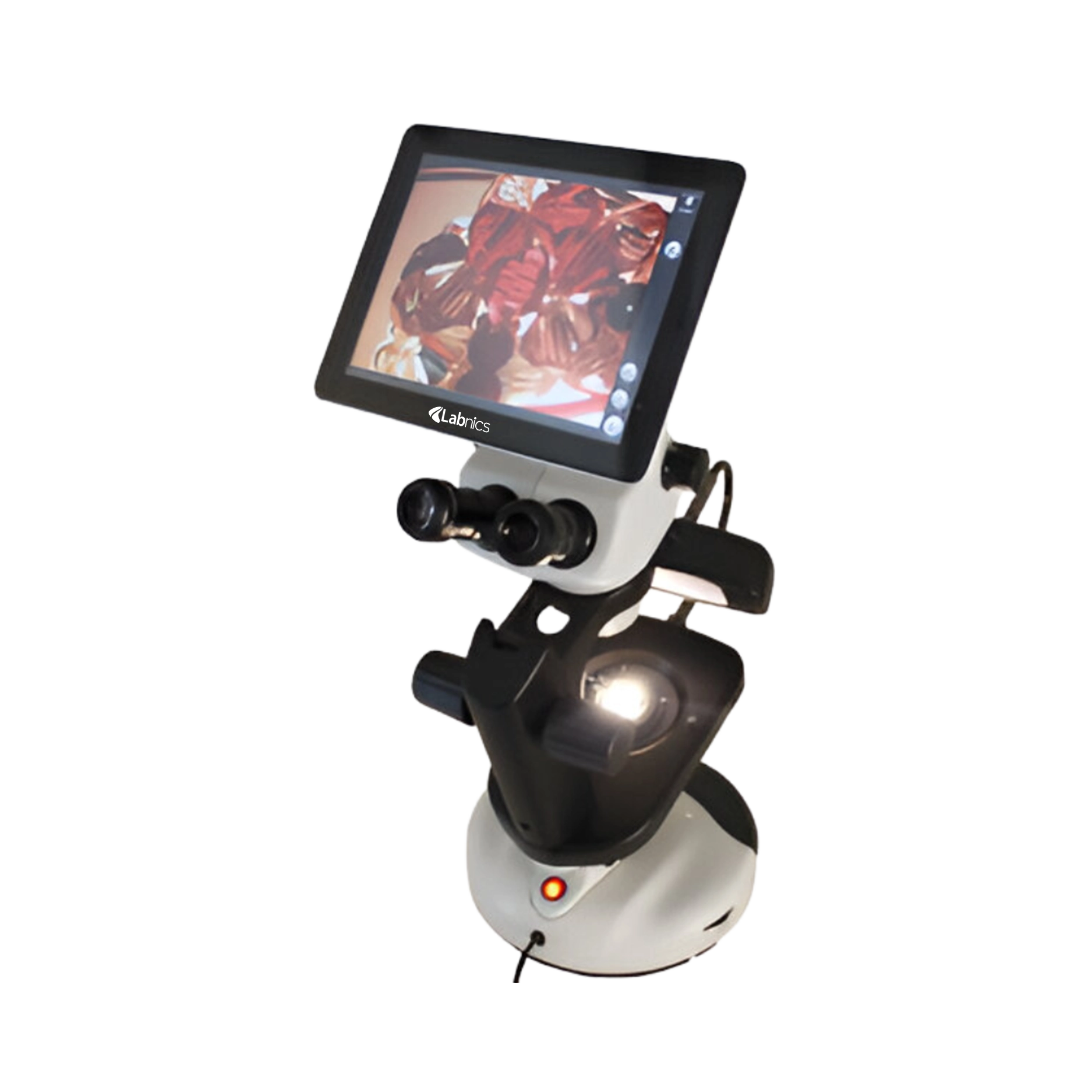

Jewellery Microscope NJEM-103 is a high-precision optical inspection system for professional jewelry inspection. It features widefield eyepieces for precise focusing and comfortable viewing. This microscope has multiple light sources for precise control over lighting conditions. It is integrated with bright and dark viewing field control to provide flexibility for switching between darkfield and lightfield. Our Jewelry Microscope has high-grade zoom objective for the observation of gemstones.
$4,375.00
Specifications
| Stereo Zoom Body | Zoom objective 0.67X to 45X, zoom ratio 1:6.7, Working distance 105mm |
| Eyepiece | WF10X/22mm Dioptre Adjustment Eyepiece |
| Bright & Dark Viewing Field Illumination | Iris diaphragm 2mm to 41mm Bright and dark viewing field illumination adjustable |
| Illumination | 7W Fluorescent lamp LED Point Light 6V/20W Halogen illumination |
| Focusing | Focusing range: 110mm Suitable for observing different size gem and sample |
| Gem Clamp | Quality steel clamp to hold the gem for all direction observations of gems |
| Stage | Two gem clamp fixing holds for you to choose |
| Stand | 0 to 38°Rotatable, eyepoint height and angle adjustable |
| Base | 0° to 325°Rotatable |
| Camera Series | HD All-in-One Android 11 System Tablet Digital Camera |
| Camera Sensor | 1/1.8” CMOS Sensor, OV08A10 |
| Effective Pixel | 8M, 4K |
| Screen | 10.5” High-Definition Touch Screen |
| Operation System | Android 11 |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 |
| Bluetooth | Bluetooth 5.0 |
| Output | USB3.0×2, USB2.0×1, HDMI, Gigabit LAN Port |
| Pixel size | 2.0um×2.0um |
| Power | DC-12V/2A |
| Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature |
| Camera function | Mirror, Flip, Freeze, Black and White |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation |
| Photo | 8.0M Image Capture |
| Video | 1080P Video |
| Storage | Still Photo and Video Recording, Picture Preview |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle |
| Geometric Area Measurement | Polygon, Rectangle |
| Measurement System | Built-in S-Eye Software |
Features
Applications
Ask Expert
Labnics Jewellery Microscopes are designed for high-precision inspection, grading, and evaluation of gemstones and diamonds. They have excellent optical and illumination systems to provide a better viewing effect. These are integrated with an illumination system for gemstone analysis. These Microscopes deliver sharp, distortion-free imaging. Our Jewelry Microscope has halogen bulbs with intensity controls to monitor light conditions.
