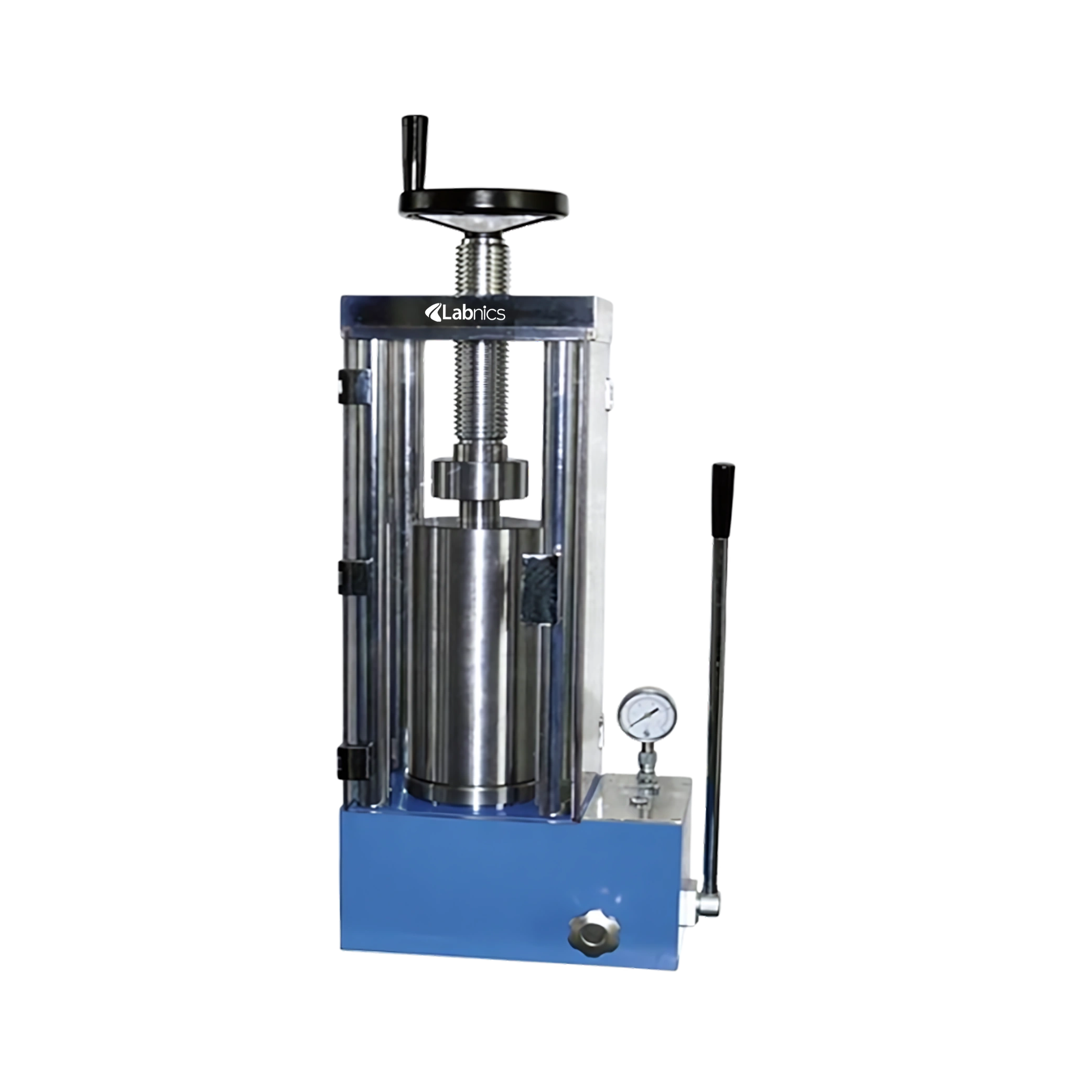

Manual CIP Press NMCIP-101 is a compact, hand-operated press designed for cold isostatic pressing applications. It offers a maximum pressure capacity of up to 20T for efficient sample compaction. This system is built with heavy-duty stainless steel for durability and corrosion resistance. It’s simple lever mechanism ensures user-friendly operation without the need for electricity. Our press includes a secure locking system to prevent pressure leakage during operation.
$43,750.00
Specifications
| Pressure Range | 0 to 20T (0 to 21 MPa) |
| Piston Diameter | 110 mm |
| Max. Piston Stroke | 40 mm |
| Isostatic pressure | 0 to 300MPa |
| Protective door | Organic glass material |
| Ambient temperature | 10℃ to 40℃ |
| Power Supply | 220V, 50 to 60 Hz |
| Pressure Vessel (M×N) | 30 × 120 mm |
| Dimensions (L×W×H) | 305 × 195 × 600 mm |
| Weight | 100 kg |
Features
Applications
Ask Expert
FAQ for Manual CIP Press NMCIP-101
1: Is the Manual CIP Press NMCIP-101 suitable for cold isostatic pressing?
Yes, Manual CIP Press NMCIP-101 is specifically designed for cold isostatic pressing (CIP) applications
2: What are the main components of Manual CIP Press NMCIP-101?
Manual CIP Press NMCIP-101 consists of a hand pump, pressure chamber, pressure gauge, and safety valve system.
3: How often should Manual CIP Press NMCIP-101 be maintained?
Manual CIP Press NMCIP-101 requires periodic maintenance, including hydraulic fluid checks and seal inspections.
4: Is training required to operate Manual CIP Press NMCIP-101?
Basic training is recommended, but Manual CIP Press NMCIP-101 is user-friendly and easy to learn for most lab users
5: How does the Manual CIP Press work?
Manual CIP Press works by manually pumping a hydraulic handle that applies isostatic pressure through a fluid medium to compress the sample
6: What type of samples can be pressed using Manual CIP Press?
It is ideal for ceramics, powders, minerals, and other laboratory materials needing uniform compaction.
7: Is electricity required to operate a manual CIP press?
No, a manual CIP press is fully functional without electricity, making it suitable for remote or power-restricted environments.
8: What are the main advantages of using a Manual CIP Press?
Manual CIP Press offers full control, portability, no power dependency, and lower maintenance costs.
Manual CIP Presses are compact devices used for cold isostatic pressing applications. They operate manually to make an easy operation. They come with corrosion-resistant stainless-steel chambers for enhanced durability. They ensure uniform pressure application through all-around compression. Our press includes a secure locking system to prevent pressure leakage during operation.
