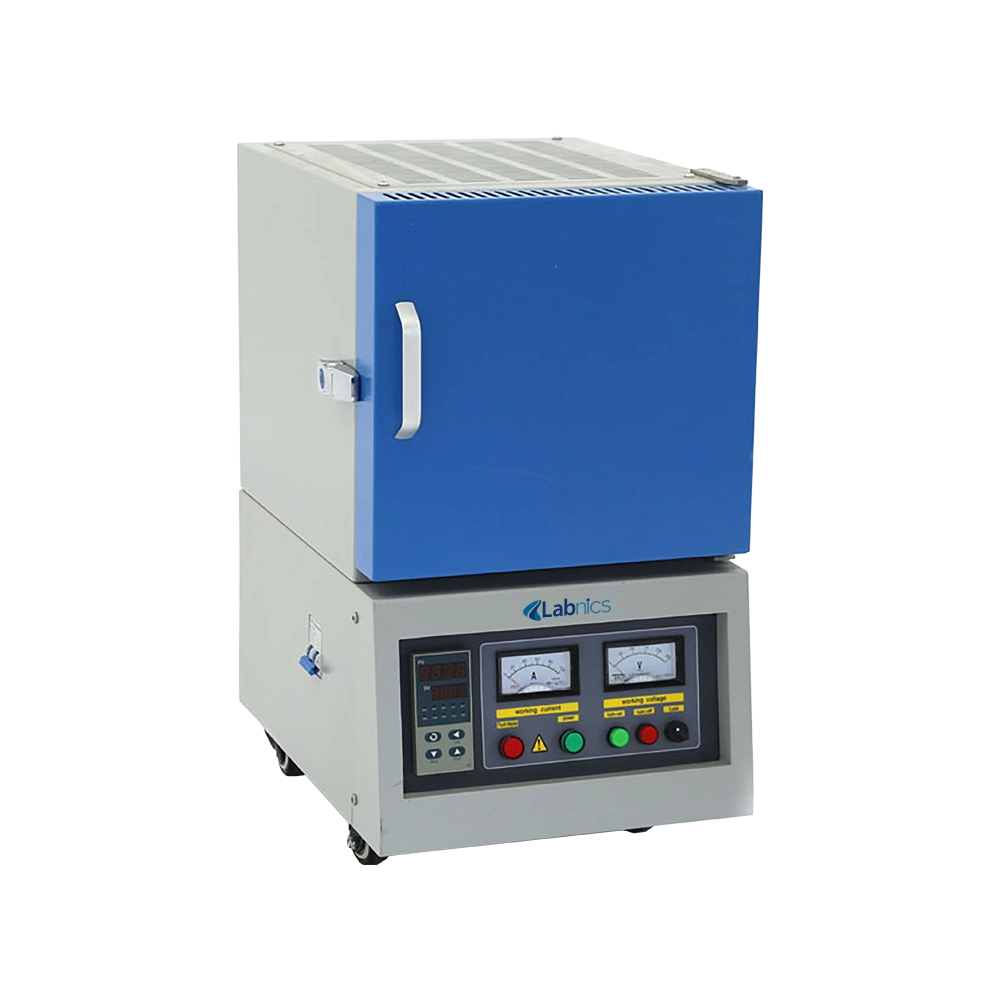

Muffle Furnace NMF-206

Muffle Furnace NMF-206 is equipped with a high-precision temperature controller and offers a maximum temperature of 1200°C. Incorporates a double-layer forced air-cooling structure for efficient cooling. Our furnace working chamber has 64 liters capacity, allowing for large sample processing. Resistance to rapid temperature changes ensures stability during heating and cooling cycles.

---

$5,713.00

Buy Now Catalog

Specifications

Highest Temperature	1200°C
Working Temperature	1100°C
Temperature Control Accuracy	± 1°C
Working Chamber Capacity	64 L
Heating Rate	≤ 20°C/Min
Heating Power	14 KW
Heating Element	Resistance wire
Thermocouple	K-type single platinum-rhodium thermocouple
Temperature Control	30 segments programmable and PID auto control
Furnace Structure	Double shell with fan cooling
Power Supply	220V 50HZ
Heating Area Dimensions (D×W×H)	400 × 400 × 400 mm
Furnace Dimension (D×W×H)	850 × 640 × 1050 mm
Packaging Dimensions (D×W×H)	975 × 725 × 1260 mm
Net Weight	152 kg
Gross Weight	190 kg

Features

• High-temperature resistance
• Adjustable PID self-tuning functions
• Automatic heating and cooling functions
• RS485 communication interface
• Power failure protection function

Applications

• It is used to heat materials to high temperatures in a controlled environment. It is commonly used for processes such as annealing, ashing, sintering, and heat treatment of materials.

Standard Accessories

Furnace door plug brick × 1 piece

---

Crucible tongs × 1 unit

---

High-temperature resistant gloves × 1 pair
