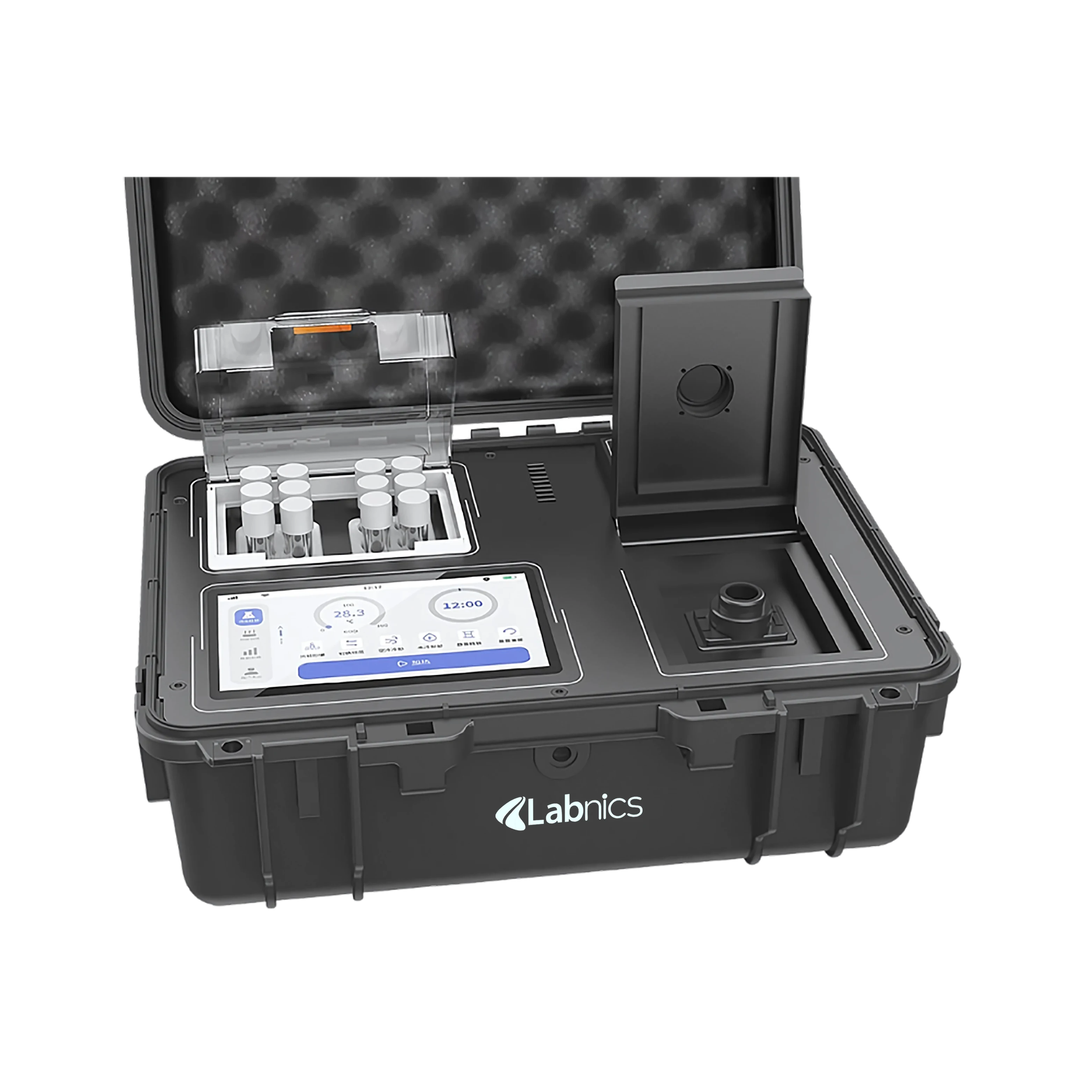

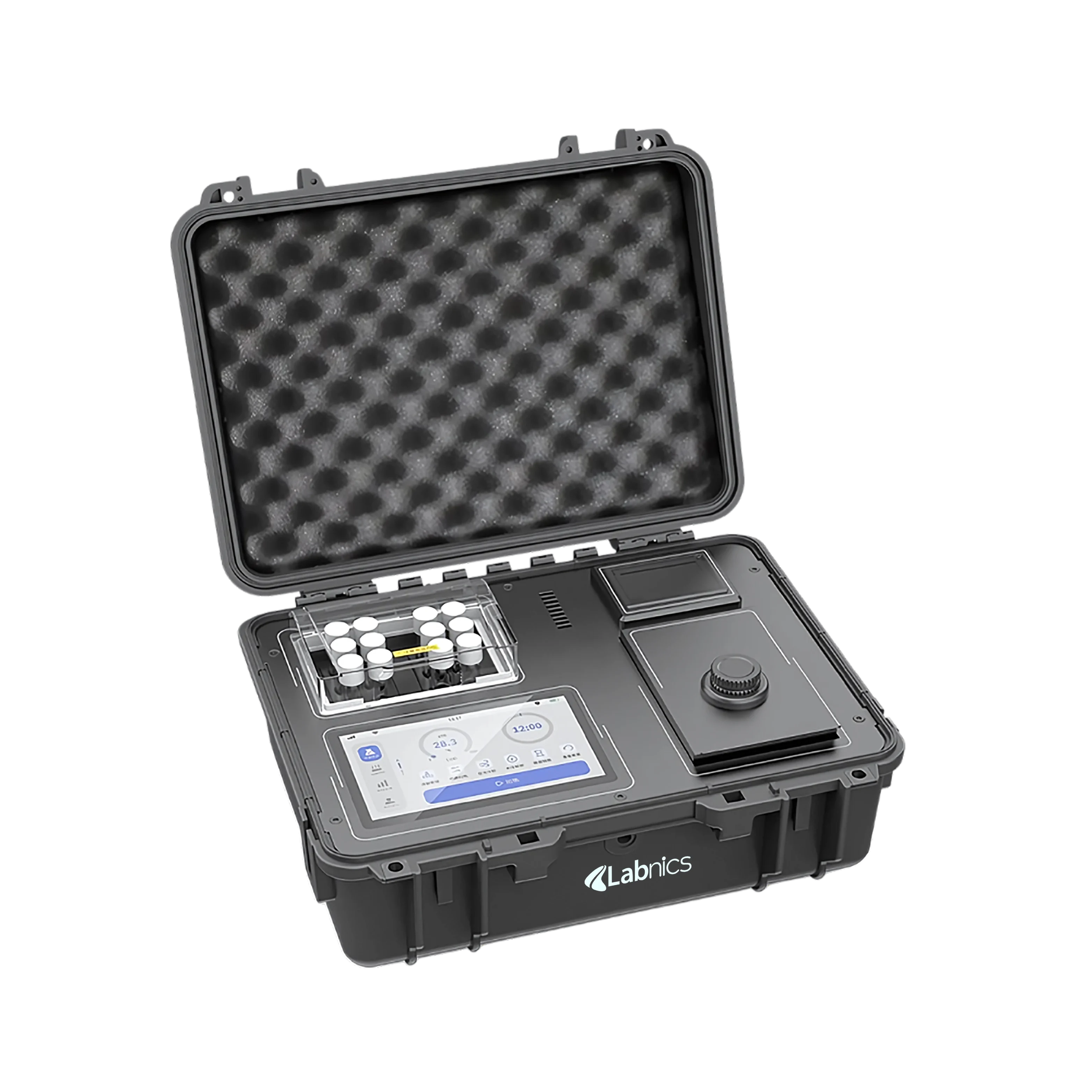

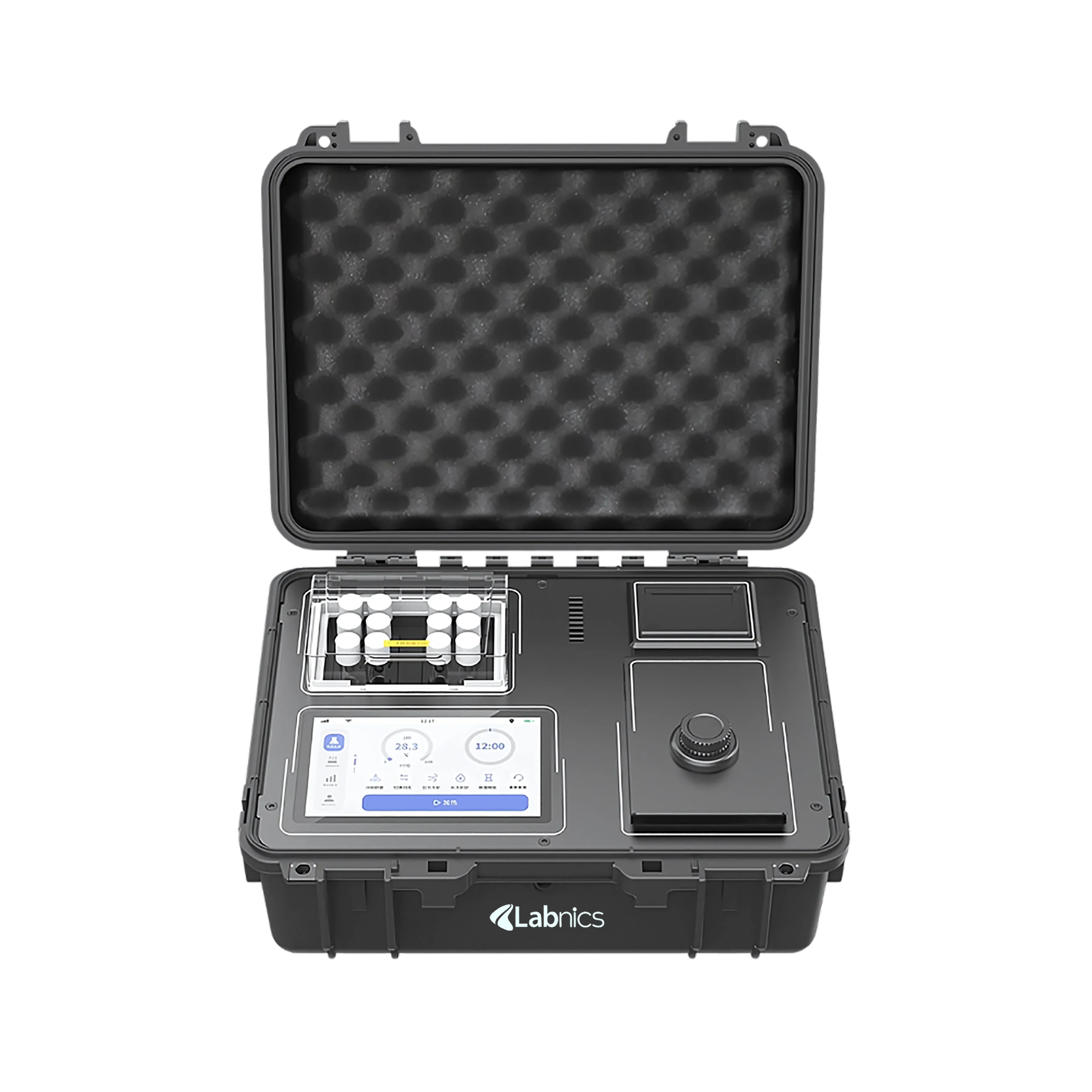

Multi-Parameter Water Quality Analyzer NMWA-100 offers a comprehensive solution for assessing water quality by measuring multiple parameters simultaneously, providing accurate, real-time data for various applications. Incorporates a dual temperature zone design with 6+6 zones operating at 165°C and 60°C allowing simultaneous operation without interference. User-friendly interfaces, with intuitive controls and displays to facilitate easy operation and data interpretation.
$6,188.00
Specifications
| COD Measurement Range | 0-15000mg/L |
| Ammonia Nitrogen Measurement Range | 0－160mg/L |
| Phosphorus Measurement Range | 0－100mg/L |
| Nitrogen Measurement Range | 0－150mg/L |
| SS Measurement Range | 0.5-1000 mg/L |
| Turbidity Measurement Range | 0.5-400 NTU |
| COD Measurement Accuracy | COD<50mg/L,≤±10％ COD>50mg/L,≤± 5％ COD>50mg/L,≤± 5％ |
| Ammonia Nitrogen Accuracy | ≤±5％ |
| Phosphorus Accuracy | ≤±5％ |
| Nitrogen Accuracy | ≤±5％ |
| SS Accuracy | ≤±5％ |
| Turbidity Accuracy | ≤±5％ |
| COD Detection Limit | 0.1mg/L |
| Ammonia Nitrogen Detection Limit | 0.01mg/L |
| Phosphorus Detection Limit | 0.002mg/L |
| Nitrogen Detection Limit | 0.1mg/L |
| SS Detection Limit | 1mg/L |
| Turbidity Detection Limit | 0.5NTU |
| COD Time Range | 20min |
| Ammonia Nitrogen Time Range | 10~15min |
| Phosphorus Time Range | 35~50min |
| Nitrogen Time Range | 45 to 50min |
| SS Time Range | 1min |
| Turbidity Time Range | 1 min |
| COD Batch Processing | 12 |
| Ammonia Nitrogen Batch Processing | No limit |
| Phosphorus Batch Processing | 12 |
| Nitrogen Batch Processing | 12 |
| SS Batch Processing | No limit |
| Turbidity Batch Processing | No limit |
| COD Repeatability | ≤±5% |
| Ammonia Nitrogen Repeatability | ≤±5% |
| Phosphorus Repeatability | ≤±5% |
| Nitrogen Repeatability | ≤±5% |
| SS Repeatability | ≤±5% |
| Turbidity Repeatability | ≤±5% |
| Lamp Life | 100000 hours |
| Optical Stability | ≤±0.001A/10min |
| COD Anti chlorine Interference | [Cl-]＜1000mg/L has no effect [Cl-]＜4000mg/L(optional) |
| Colorimetric Method | 16mm/25mm Tube,10mm/30mm Cuvette |
| Data Storage | 50 million |
| COD Digestion Temperature | 165℃±0.5℃ |
| Phosphorus Digestion Temperature | 120℃±0.5℃ |
| Nitrogen Digestion Temperature | 122℃±0.5℃ |
| COD Digestion Time | 10 min |
| Phosphorus Digestion Time | 30 min |
| Nitrogen Digestion Time | 40 min |
| Time switch | Automatic |
| Temperature Range | RT ±5-190℃ |
| Temperature Indication Error | ＜±2℃ |
| Uniformity | ≤2℃ |
| Time Range | 1-600 min |
| Power Consumption | 180W |
| Rated Voltage | 24 V |
| Ambient Temperature | 5 to 40 ℃, |
| Relative Humidity | ≤85% |
| Host Dimemsion | 430 × 345 × 188 mm |
| Experiment Box Dimension | 479 × 387 × 155 mm |
| Host Weight | 11.9 Kg |
| Test Box Weight | 7 Kg |
Features
Applications
Optional Accessories
COD reagentAsk Expert
