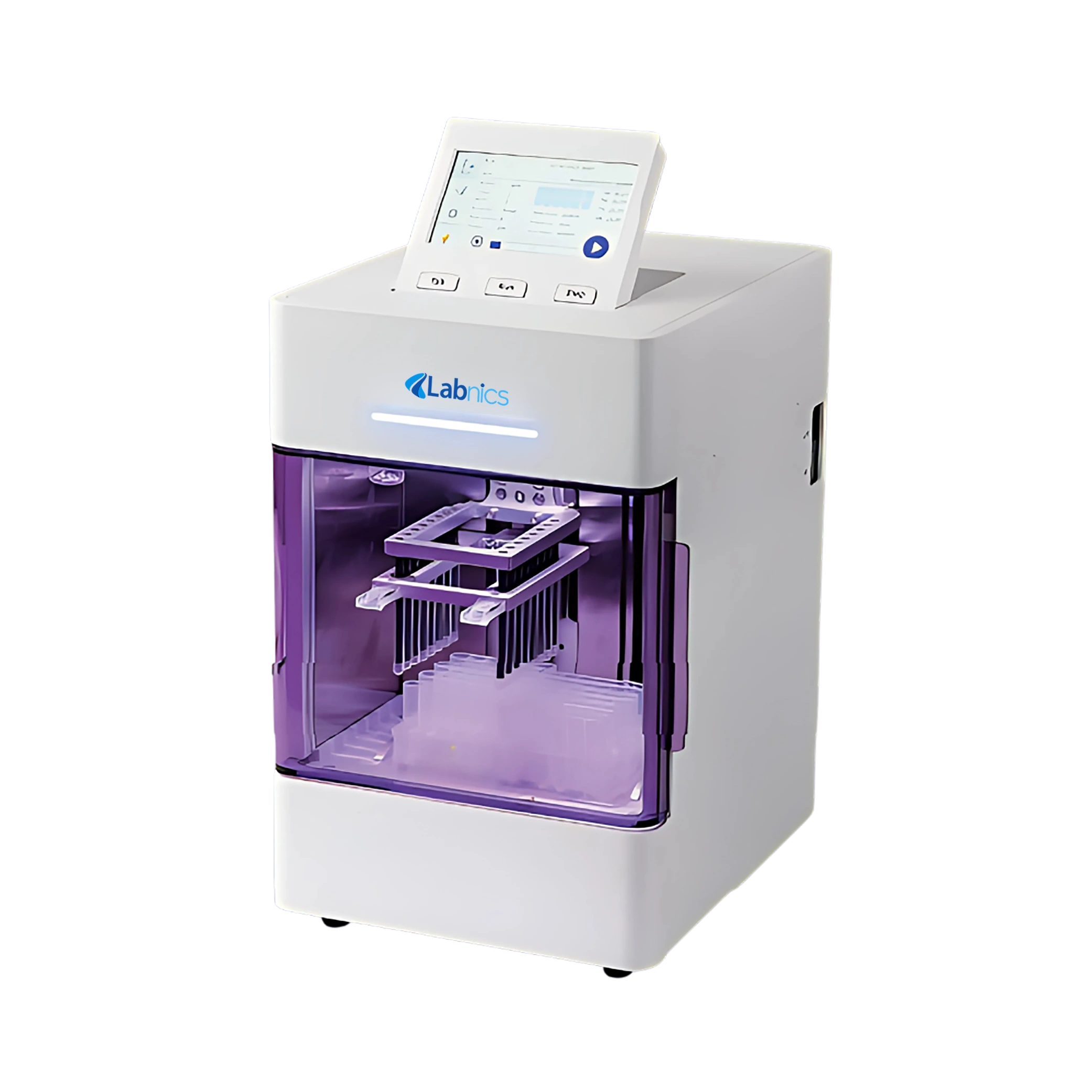

Nucleic Acid Extraction System NNAE-400 supports 20 μl to 1000 μl volume and processes up to 16 samples efficiently. Our system supports fast extraction cycles and enables storage of multiple programs. This device features an intuitive touchscreen interface and is compatible with standard deep-well plates. Our instrument ensures precise temperature control and rapid heating during the process. It is widely used in molecular diagnostics, genetic testing, and clinical laboratory automation.
$16,625.00
Specifications
| Sample volume | 20 μl to 1000 μl |
| Sample throughput | 1 to 16 samples |
| Lysis temperature | RT to 120℃ |
| Elution temperature | RT to 120℃ |
| Heating time | ≤ 5 min (within room temperature 120℃) |
| Temperature accuracy | ≤±1℃ |
| Variance between extraction and purification columns | CV≤5% |
| Program storage capacity | Instrument storage memory ≤ 100 groups |
| Data storage | Available |
| Data interface | Compatible with bluetooth, USB and RS232 data transmission, and portable PC port transmission |
| Operation interface | 4.3-inch touch screen, mobile terminal APP control |
| Contamination control | Anti-aerosol fan, ultraviolet disinfection |
| Power Consumption | Standby 10 W, maximum power 160 W |
| Power Supply | AC100 240V±10%, 50-60 Hz±5％; Support battery power supply |
| Dimensions (W×D×H) | 208 × 258 × 315 mm |
Features
Applications
Ask Expert
FAQ for Nucleic Acid Extraction System NNAE-400
1: What is the capacity of Nucleic Acid Extraction System NNAE-400?
The Nucleic Acid Extraction System NNAE-400 supports 1 to 16 samples and accommodates flexible sample volumes, making it suitable for diverse throughput requirements.
2: What is the control interface of Nucleic Acid Extraction System NNAE-400?
The Nucleic Acid Extraction System NNAE-400 features a 4.3-inch touchscreen along with mobile app connectivity, providing user-friendly and flexible control options.
3: How does Labnics Nucleic Acid Extraction System NNAE-400 prevent contamination?
Labnics Nucleic Acid Extraction System NNAE-400 ensures safe sample handling through integrated ultraviolet disinfection and an anti-aerosol fan system.
4: What power options are available in Nucleic Acid Extraction System NNAE-400?
The Nucleic Acid Extraction System NNAE-400 supports both AC input and battery power, allowing continuous operation in standard labs or mobile setups.
5: Can our Nucleic Acid Extraction System NNAE-400 store programs and data?
Our Nucleic Acid Extraction System NNAE-400 allows storage of up to 100 program groups and supports Bluetooth and USB-based data transfer functions.
