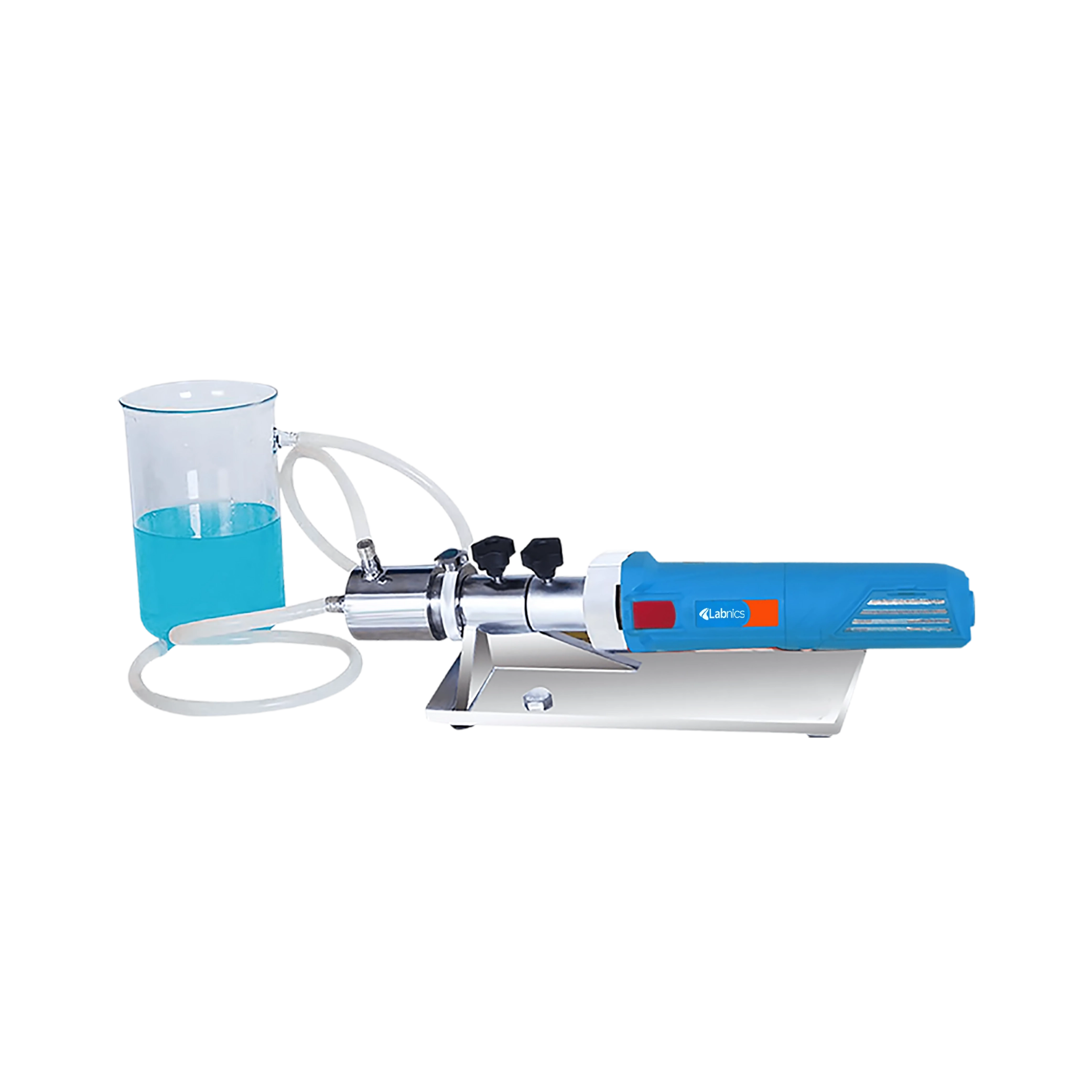

Online Homogenizer NOH-100

Online Homogenizer NOH-100 offers a speed range of 7,500 to 30,000 rpm, ensuring high-efficiency mixing. It operates from 5°C to 40°C, supporting consistent performance across various applications. It provides precise control with an LCD for easy operation. Our unit is designed with stainless steel construction, providing durability. This homogenizer features adjustable gear speed settings to maintain smooth performance.

---

$3,820.00

Buy Now Catalog

Specifications

Speed range	7500 to 30000rpm
Ambient temperature	5 to 40℃
Ambient humidity	80%
Maximum viscosity	10000CP
Motor type	DC brushless motor
Speed mode	Gear adjustment
Speed display	LCD
Capacity	1 to 30L/min
Working bracket, base, disassembly tool	Stainless steel standard
Standard working head	25DG
Standard working chamber	Stainless steel non-jacketed working chamber
Contact material	SUS316L
Mechanical seal material	SiC
Hygiene standard	GMP pharmaceutical health standard
Inlet and outlet outer diameter	14 (hose connection)
Motor Power	1250W
Power supply	220V/50Hz
Dimension(L× W× H)	460×120×120 mm

Features

• Brushless motor
• Corrosion resistant
• Low maintenance
• Enhanced sealing effect
• Uniform dispersion

Applications

• Online Homogenizer NOH-100 is essential for achieving uniform mixtures, ensuring product quality. It is used in pharmaceuticals, food industry, and research labs.
