Online Homogenizer NOH-101

Online Homogenizer NOH-101

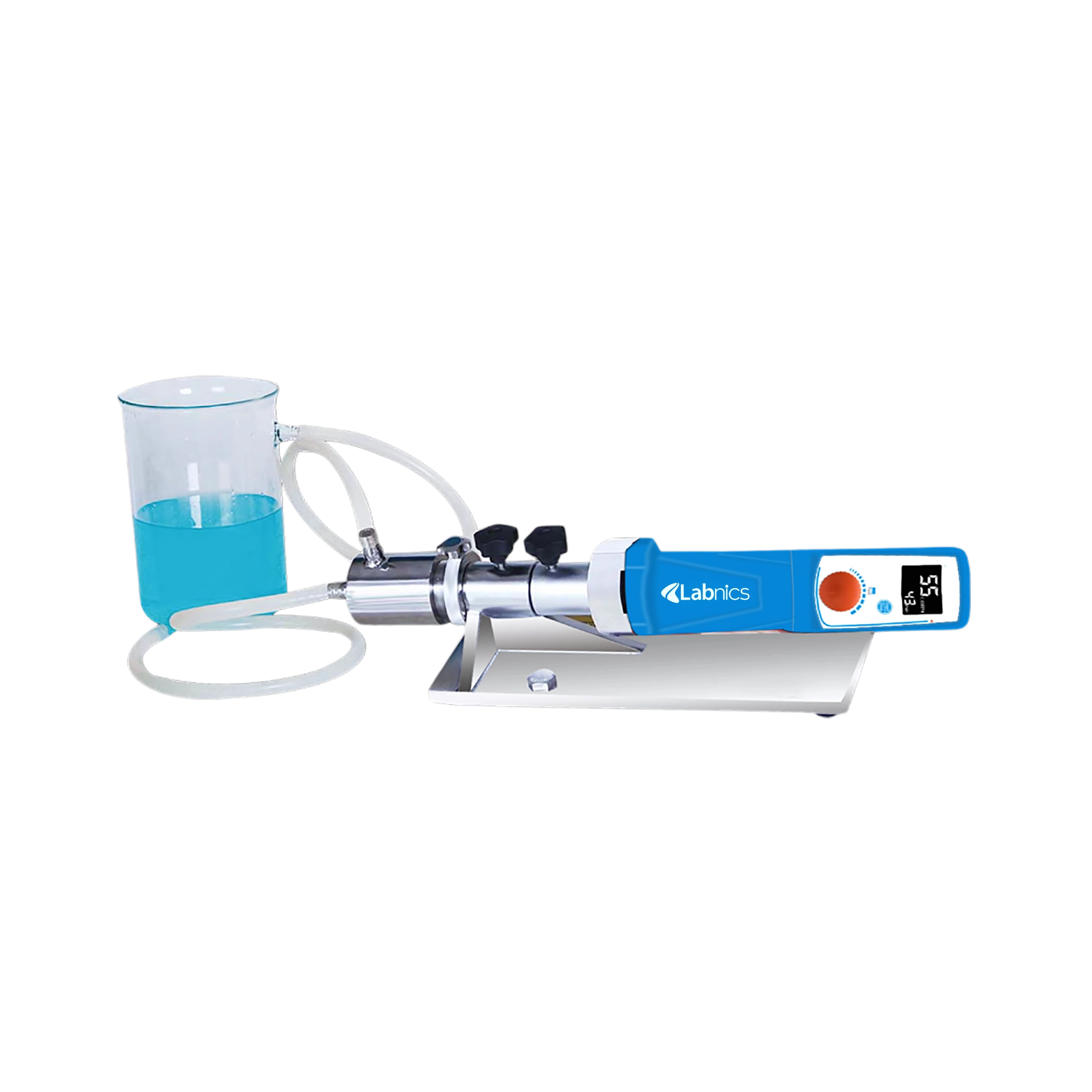

Online Homogenizer NOH-101 features a capacity of 1 to 20 L/min, providing uniform emulsification. It ensures complete material passage through the shear cavity, providing excellent homogeneity. This homogenizer includes a knob adjustment to allow precise control. It is designed with a stainless-steel chamber, offering corrosion resistance. Our unit handles high viscosities, ensuring consistent results in multiple operations.


$4,520.00

Catalog

Specifications

Speed range 3000 to 26000rpm
Ambient temperature 5 to 40℃
Ambient humidity 80%
Maximum viscosity 10000CP
Motor type DC brushless motor
Speed mode Knob adjustment
Speed display Digital display
Capacity 1 to 20L/min
Working bracket, base, disassembly tool Stainless steel standard
Standard working head 20DG
Standard working chamber Stainless steel non-jacketed working chamber
Contact material SUS316L
Mechanical seal material SiC
Hygiene standard GMP pharmaceutical health standard
Inlet and outlet outer diameter 14 (hose connection)
Motor Power 750W
Power supply 220V/50Hz
Dimension (L×W×H) 460×120×120 mm

Features

  • Improved mixing
  • Energy efficient operation
  • Uniform material dispersion
  • Superior shearing effect
  • High-speed motor

Applications

  • Online Homogenizer NOH-101 is designed for consistent emulsification. It is used in Pharmaceutics, Cosmetics, Laboratory research, and the chemical industry.

Ask Expert


Online Homogenizer NOH-101

Online Homogenizer NOH-101

Related Models Of Online Homogenizer

Labnics Online Homogenizers are designed for high-performance emulsification and consistent results during operations. They feature brushless motors, ensuring efficient and reliable mixing. These homogenizers deliver superior material processing and handling for optimal performance. They are constructed with durable stainless steel, offering corrosion resistance. Our units provide precise control, and exceptional homogenization results across diverse viscosities.
