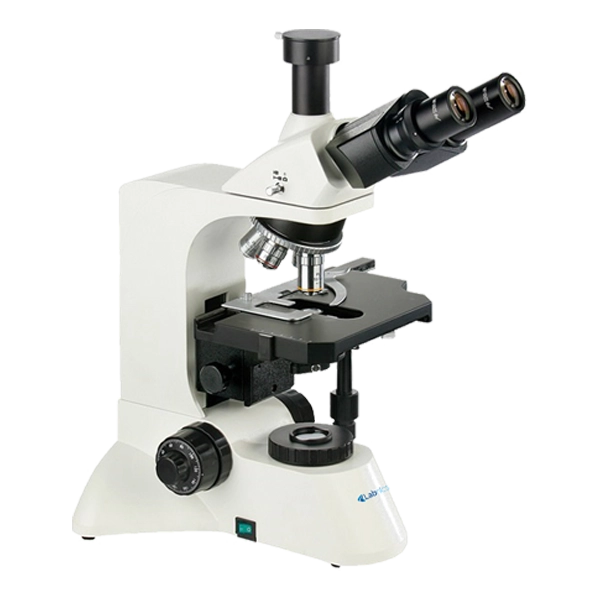

Optical Phase Contrast Microscope NOPC-100

Optical Phase Contrast Microscope NOPC-100 is a microscopic instrument that causes phase shifts in light source with variations in brightness levels for observation of transparent specimens or samples. It is equipped with transmission illumination system with High light power LED source that aids in enhanced durability of light source.

---

$2,550.00

Buy Now Catalog

Specifications

Optical System	Plan Achromatic optical system
Observation	Phase contrast
Viewing Head	Binocular/Trinocular head, 30° incling, 360°rotating
Objectives	PH4X/0.1,PH10X/0.25,PH40X/0.65 ,PH100X/1.25
Eyepiece	High eye level wide field WF10×(Ø18mm)
Nosepiece	Quadruple revolving Nosepiece
Condenser	Abbe Condenser aperture iris diaphragm NA1.25
IPD adjustment	48mm ~ 75mm
Diopter adjustment	± 5mm
Stage	Attachable mechanical. Double layer stage with graduation reading up to 0.1mm
Precision	0.1mm
Fine adjustment accuracy	0.002mm
Dimensions of Stage	135×125 mm
Moving range	75×35 mm
Power supply	AC100V~230V, 50Hz/60Hz
External Dimensions	53×32×35 cm
Weight	7.5 kg

Features

• Ergonomic body designed with rigid frame arm for lifting movement
• A metal body with antifungal and antibacterial property
• Equipped with coaxial positioning system
• Movement by roller guider (Roller and pinion)
• Rubber grip around fine and coarse knob to adjust focus on the microscopic field
• Tension adjustment along with coarse regulation knob

Applications

• It is widely used for unstained specimens and cells in Microbiological laboratories, Cell culture laboratories, Research and Development etc.

Optional Accessories

Accessories No	Name
1	Halogen Lamp 6V/20W
