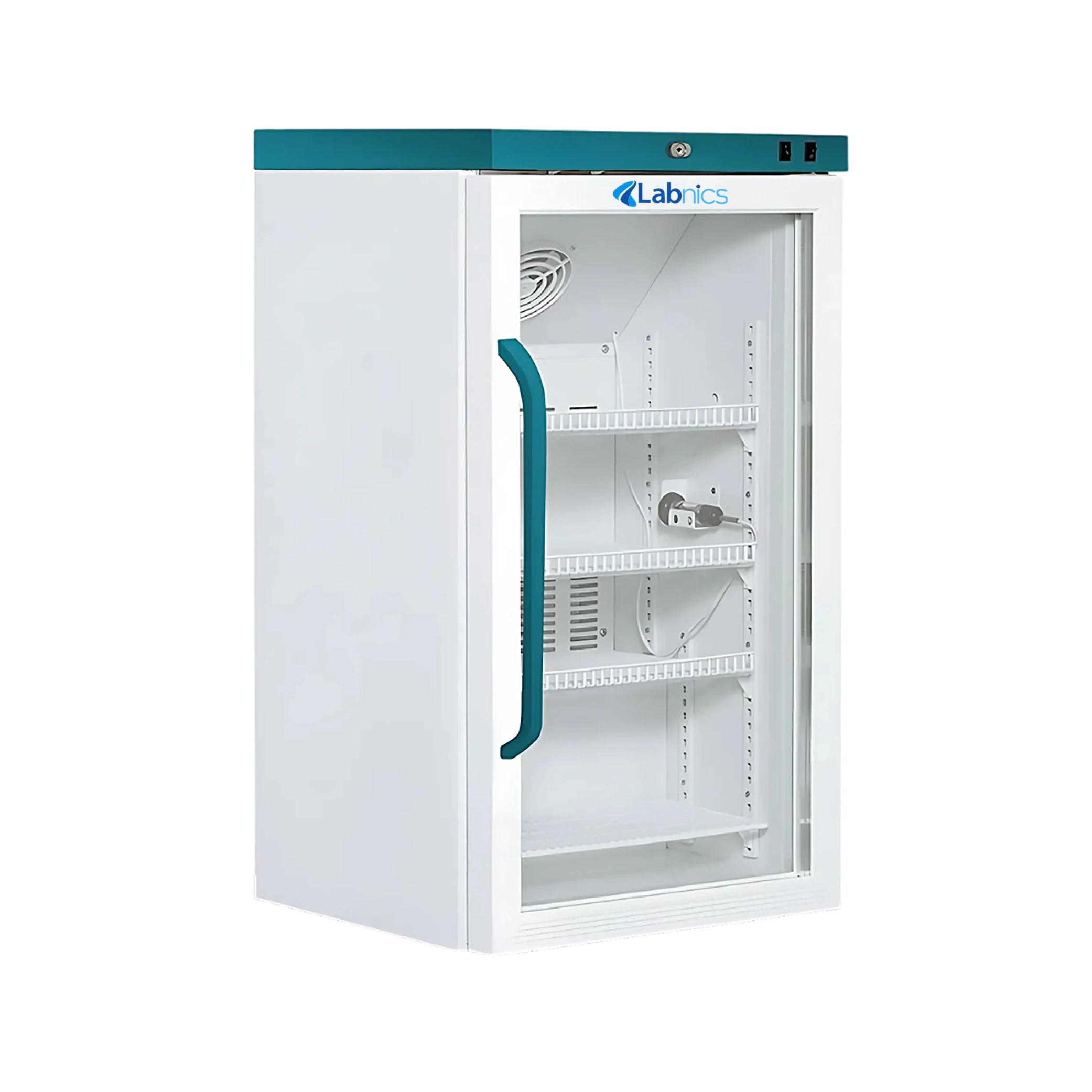

Pharmaceutical Refrigerator NPR-200 is designed as an undercounter cabinet-type refrigerator with a capacity of 140 liters. It operates within a precise temperature range of 2 to 8°C to provide safe storage. This unit utilizes a forced air cooling system to maintain uniform internal temperature. It features multiple alarms to enhance safety and ensure continuous monitoring. Our refrigerator includes an LED internal light for visibility and a secure door lock to prevent unauthorized access.
| Cabinet type |
Undercounter |
| Capacity |
140L |
| Dual sensors |
Product/air |
| Temperature range |
2 to 8°C |
| Working temperature range |
+10 to +32°C |
| Uniformity |
1℃ |
| Accuracy |
0.1℃ |
| Fluctuation |
1.5℃ |
| Cooling type |
Forced air cooling |
| Defrost mode |
No frost |
| Refrigerant |
CFC-free, hydrocarbon gas, R600A |
| No. of shelves |
4 |
| Foot locks |
2 |
| Casters |
2 |
| Door material |
Glass/solid (s) (foamed power-coated steel door) |
| Internal material |
Powder-coated aluminum |
| External material |
Powder-coated cold-rolled steel |
| Shelf material |
Dirt-pickup resistant plastic-coated iron wire, height adjustable |
| Temperature controller |
Microprocessor thermostat controller |
| Display |
Digital LED display with accuracy of 0.1℃ |
| High/low temperature alarm |
Yes |
| Power failure alarm |
Yes |
| Remote alarm |
Yes |
| Sensor error alarm |
Yes |
| Low battery alarm |
Yes |
| Door ajar alarm |
Yes |
| Door lock |
Yes |
| Inner light |
LED |
| Noise Level |
≤40 dB(A) |
| Power consumption |
1.5 kWh/24h |
| Overall power consumption |
145W |
| Current |
0.95A |
| Power supply |
220 to 230V,50Hz (110 to 115V, 60Hz) |
| Internal dimension |
Top: 505×442×460 mm
Bottom:505×310×165 mm |
| External dimension |
595×611×840 mm |
| Packaging dimension |
660×705×910 mm |
| Net weight |
55 kg |
| Gross weight |
60 kg |
FAQ for Pharmaceutical Refrigerator NPR-200
1: Does the Pharmaceutical Refrigerator NPR-200 provide uniform cooling?
Yes, the Pharmaceutical Refrigerator uses a forced air cooling system with waterproof brushless fans to ensure uniform temperature distribution throughout the cabinet. This minimizes fluctuation and protects all stored items equally.
2: Is the storage space adjustable?
Yes, the Pharmaceutical Refrigerator comes with four height-adjustable wire shelves made from dirt-resistant, plastic-coated iron. This allows a flexible arrangement to suit different container sizes and storage needs.
3: Can I silence the alarm when needed?
Yes, there is an alarm mute button available for situations where the alert has been acknowledged. This allows continued use without constant noise while maintaining safety.
4: How often does the Pharmaceutical Refrigerator NPR-200 need maintenance?
Regular maintenance is minimal due to its no-frost cooling system, but it is recommended to inspect the unit monthly for dust buildup on vents, proper door sealing, and overall performance. A yearly professional check-up ensures long-term reliability.
5: How should I clean the interior and shelves?
The interior and adjustable wire shelves should be cleaned regularly using a mild detergent and soft cloth. Avoid harsh chemicals or abrasive materials to preserve the protective coating and hygiene of the storage space.
