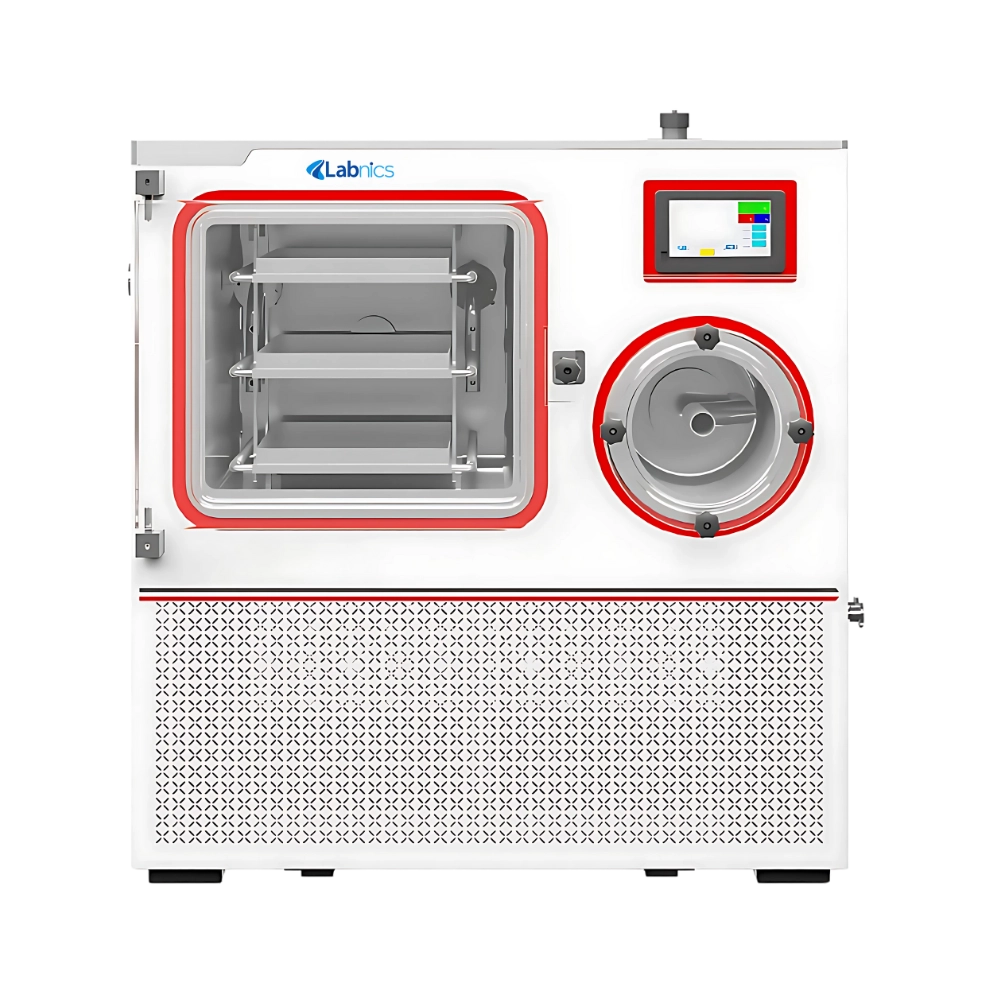

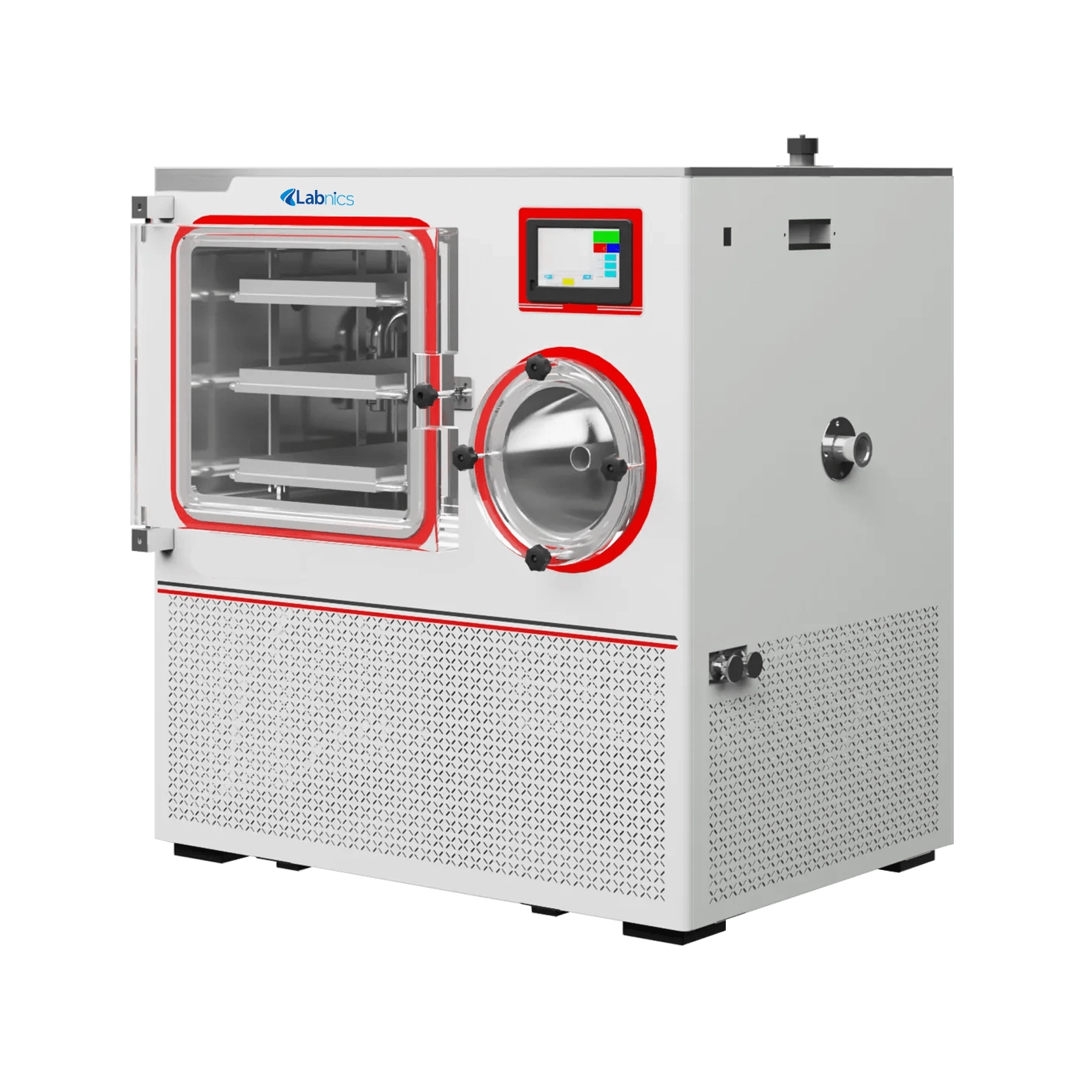

Pilot Freeze Dryer NPFD-104

Pilot Freeze Dryer NPFD-104 features a 1 m² freeze area and supports a 15 kg water capture capacity. It operates with a low-noise compressor for stable performance and reliable operation. This freeze dryer includes a USB interface for data storage and backup. It provides a real-time data curve for monitoring drying conditions. Our unit utilizes a frequency conversion refrigeration system to ensure precise temperature control.

---

$32,475.00

Buy Now Catalog

Specifications

Type	Standard chamber
Freeze Area	1 m²
Water Capture Capacity	15 kg
Cold Trap Volume	35 L
Tray Size	500 × 480 mm
Tray Quantity	4+1
Loading Capacity	15.5 L
Height Between Trays	90 mm
Limit Vacuum	<1Pa
Pressure Display Range	ambient pressure -0.1Pa
Cold Trap Temperature	-80°C
Shelf Temperature	-55 to 70°C
Environmental Temperature	10°C to 24°C
Penicillin Bottle	Φ12mm: 7020 Φ16mm: 3944 Φ22mm: 2016
Power Supply	380V 50Hz
Power Consumption	8.5 kW
External Dimension	1450 × 1050 × 1550 mm
Package Dimension	1400 × 850 × 1950 mm
Net Weight	650 kg
Gross Weight	700 kg

Features

• HD touch screen
• Electric defrosting
• Durable construction
• Advanced vacuum control
• Easy maintenance

Applications

• Pilot Freeze Dryer NPFD-104 is ideal for preserving food and extending its shelf life while maintaining nutrients and stabilizing medicines and vaccines to ensure long-term effectiveness.
