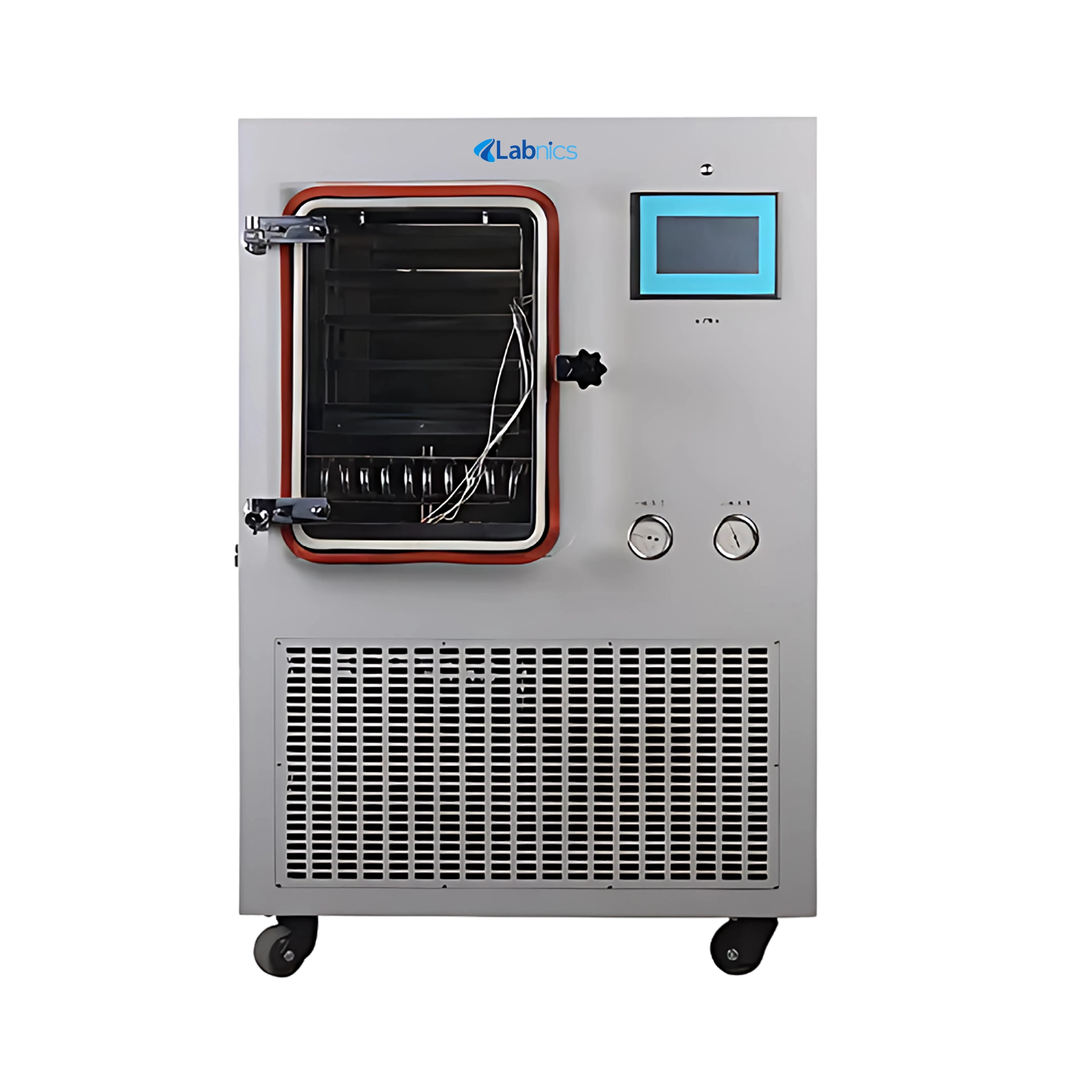

Pilot Freeze Dryer NPFD-206

Pilot Freeze Dryer NPFD-206

Pilot Freeze Dryer NPFD-206 provides a 4 L bulk capacity and supports a vacuum degree of up to 10 Pa. It features a high-reliability PLC system for stable performance and long-term accuracy. This system includes a USB port for exporting data in Excel format. It offers real-time alarm display and historical data tracking for continuous monitoring and easy record analysis. Our unit ensures secure operation with multilevel password protection.


$23,975.00

Catalog

Specifications

Drying area 0.4 m²
Shelf temperature range -50 to +70°C
Shelf 4+1 layers (top shelf for heat radiation)
Shelf spacing 50 mm
Bulk capacity 4 L
Condenser capacity 6 kg/24 hours
Vacuum degree Less or equal to 10 Pa
Condenser temperature Up to -70°C
Cooling Air cooling, draughty ambient temperature ≤25°C
Vial capacity Φ12mm: 2916 Pcs
Φ16mm: 1600 Pcs
Φ22mm: 872 Pcs
Power supply 220V/50 Hz, single phase
Dimension 880 × 735 × 1310 mm
Weight 360 Kg

Features

  • LCD touch screen
  • Manual and automatic control modes
  • Transparent acrylic door
  • Low-noise compressor
  • Inert gas inflation valve
  • Stainless steel chamber

Applications

  • Pilot Freeze Dryer NPFD-206 is used in the pharmaceutical, biotechnology, and food industries for moisture removal, sample preservation, and long-term storage while maintaining structural integrity.

Ask Expert

FAQ for Pilot Freeze Dryer NPFD-206

1: How consistent is the temperature control in the Pilot Freeze Dryer?

The Pilot Freeze Dryer uses a low-viscosity medium for precise, uniform shelf temperature control, ensuring consistent drying results.

2: What should I do if the Pilot Freeze Dryer displays a fault or stops operating?

If an issue arises, check the real-time alarm, historical logs, and system connections. The built-in diagnostics ensure efficient troubleshooting.

3: Can I save and reuse drying programs on the Pilot Freeze Dryer NPFD-206?

Yes, the Pilot Freeze Dryer allows you to store hundreds of drying recipes, with each one capable of having up to 36 segments. This helps in maintaining consistency for recurring procedures.

4: How easy is it to operate the Pilot Freeze Dryer?

The Pilot Freeze Dryer features manual and automatic modes with a colour LCD touchscreen, offering real-time process curves, data storage, and user-friendly operation.

5: Does this Pilot Freeze Dryer NPFD-206 support data export for documentation?

Absolutely. It comes with a USB port that allows you to export freeze-drying data in Excel format, making it easy to review, share, or archive operational records.


Pilot Freeze Dryer NPFD-206

Pilot Freeze Dryer NPFD-206

Related Models Of Pilot Freeze Dryer

Labnics Pilot Freeze Dryers offer an efficient vacuum system for fast and uniform sublimation. They feature a flexible shelf design that allows easy adjustment and consistent temperature distribution. These units are built with stainless steel chambers for durability and corrosion resistance. They are equipped with a digital display for clear and accurate readings. Our pilot freeze dryers include a defrosting system for quick condenser cleaning and reduced downtime.
