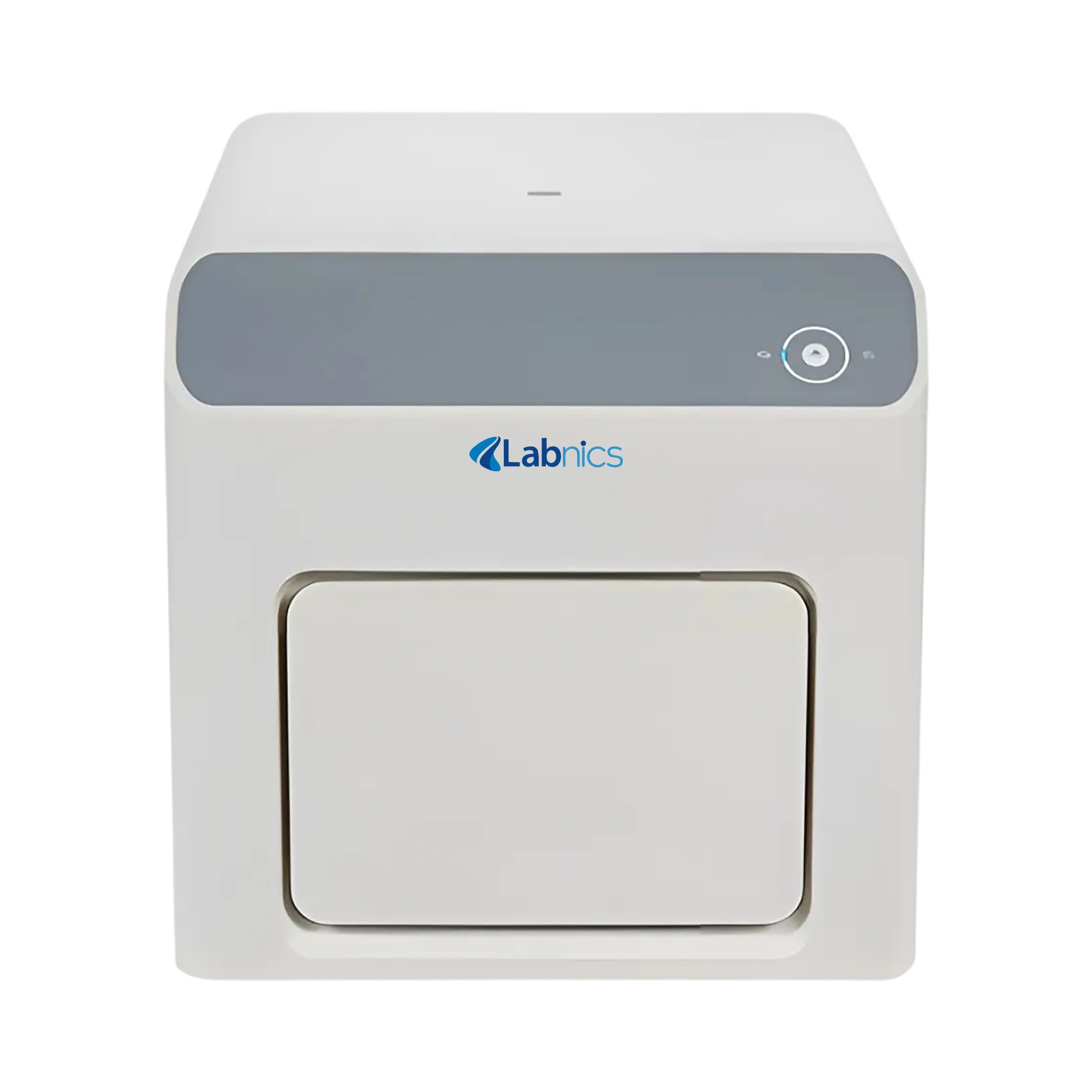

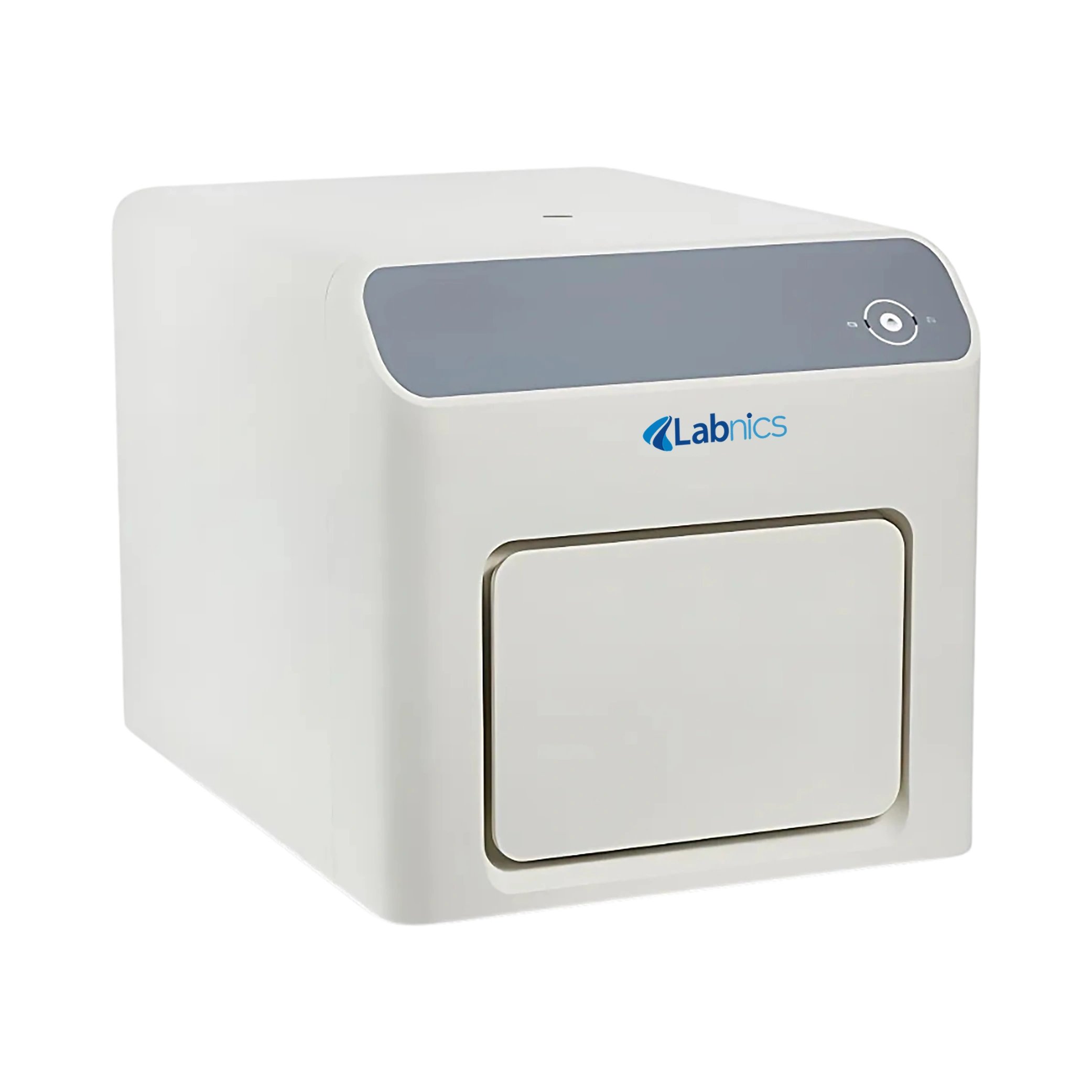

Real Time PCR NRTP-400

Real Time PCR NRTP-400 is designed with a temperature range of 4 to 100 °C and maintains ±0.2 °C precision throughout. It offers strong signal detection through a high-sensitivity silicon PMT. This PCR ensures signal accuracy using linear time-sharing scanning technology. It supports multi-melting curve analysis for detailed evaluation of product specificity. Our unit uses confocal scanning fluorescence detection for clear and low-noise signals.

---

$21,000.00

Buy Now Catalog

Specifications

Sample Capacity	8 × 0.1 mL PCR strip × 12 96 × 0.1 mL individual tube 0.1 mL PCR Plate
Sample Volume	10 to 50 µL
Fluorescence Detection Channels	4
Thermal Control Method	Peltier
Maximum Heating Rate	6.0° C/s
Temperature Range	4 to 100 °C
Temperature Accuracy	± 0.2°C
Temperature Uniformity	± 0.2°C at 60 °C ± 0.2°C at 95 °C
Excitation Light	4 pcs high-efficiency single colour LEDs
Detector	SiPMT
Detection Method	Time resolved real-time scanning
Wavelength Range	Excitation: 455 to 650 nm Emission: 510 to 750 nm
Supported Dyes	FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ
Multiplexing	up to 4 targets
Sensitivity	1 copy gene
Resolution	1.33-fold copies difference in single–plex reaction
Dynamic Range	10 orders of magnitude

Features

• Fast and precise thermal cycling
• Low maintenance
• Multi-melting curve analysis
• Data export support
• High resolution

Applications

• Real Time PCR NRTP-400 is used for gene expression analysis, mutation detection, SNP genotyping, viral load monitoring, and precise quantification of nucleic acids with high specificity and reproducibility.
