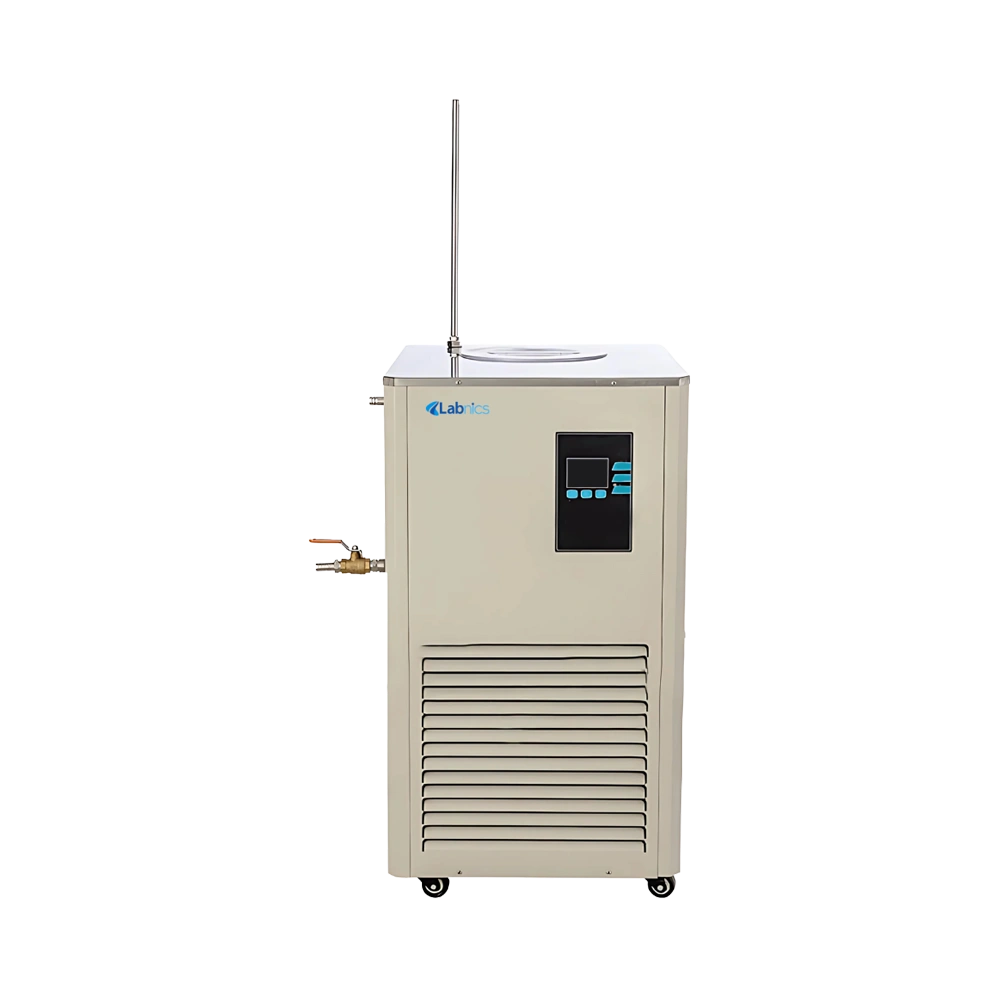

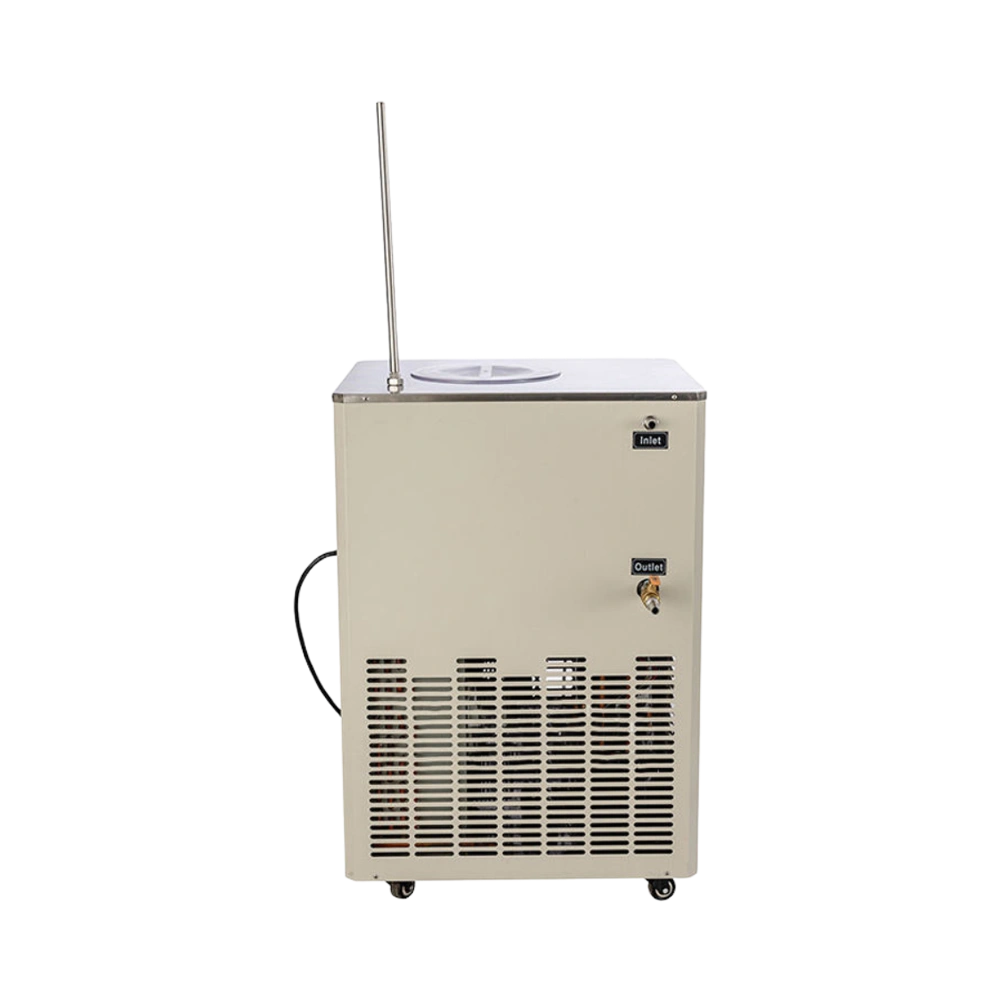

Recirculating Chiller NRC-208 maintains a consistent temperature range from -120°C to RT, ensuring precise control. It uses a PT100 temperature sensor to ensure precise thermal readings. This unit incorporates a 22㎡heat exchange area to maximize cooling efficiency. It features a user-friendly LCD screen with key-based controls for easy operation. Our chiller includes a Φ16mm outer loop interface for seamless system integration.
$11,163.00
Specifications
| Tank capacity | About 21L |
| Temperature range | -120°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |

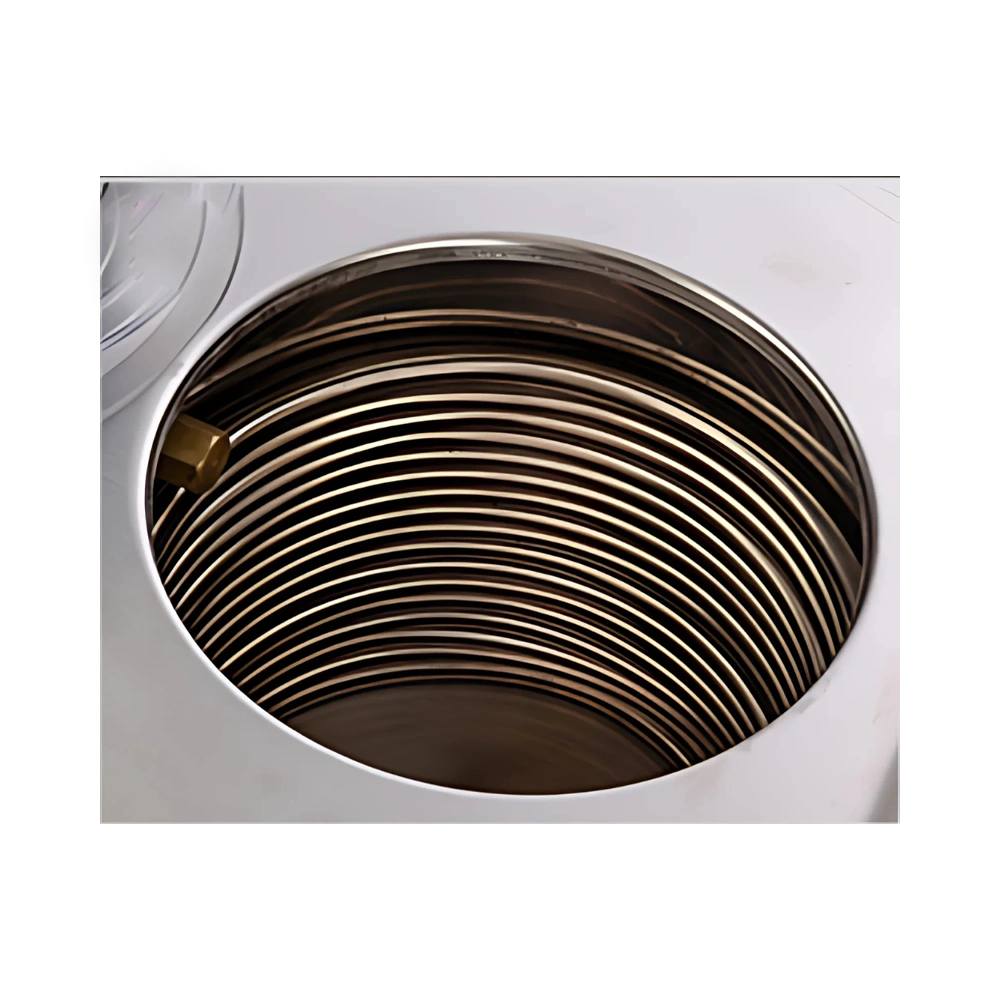

| Heat exchange area | 22㎡ |
| Air volume | 4580m³/h |
| Refrigerant | R22 |
| Condensing coil | Φ12 Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 3P |
| Compressor quantity | 3 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 6615W |
| Cooling capacity | 20961W |
| Total power consumption | 6973W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ300×300 mm |
| Packaging dimension | 1060×850×1370 mm |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-208
1: What is the material used in construction?
The Recirculating Chiller is built with cold plate spray-coated material and nickel-plated copper condensing coils. This provides strong corrosion resistance and ensures long-term durability.
2: Can the flow rate be adjusted based on requirements?
Yes, the circulating pump flow is adjustable and can even be customized to meet specific process needs. This flexibility supports different lab workflows and equipment types.
3: How efficient is the heat exchange system?
Our Recirculating Chiller incorporates a large 22 meter per square heat exchange area, which significantly enhances cooling efficiency. This helps maintain stable temperatures even during high-demand processes.
4: Is the Recirculating Chiller NRC-208 suitable for environments with poor water quality?
Yes, the Recirculating Chiller is designed to operate under conditions such as low water pressure, poor water quality, and high temperatures. This ensures consistent performance and protection for sensitive lab instruments.
5: How often should the Recirculating Chiller NRC-208 be cleaned?
It is recommended to clean the chiller’s exterior and ventilation grills every 1 to 2 weeks to ensure proper airflow and prevent dust buildup. Internal components like the tank and tubing should be cleaned monthly or as per usage frequency.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
