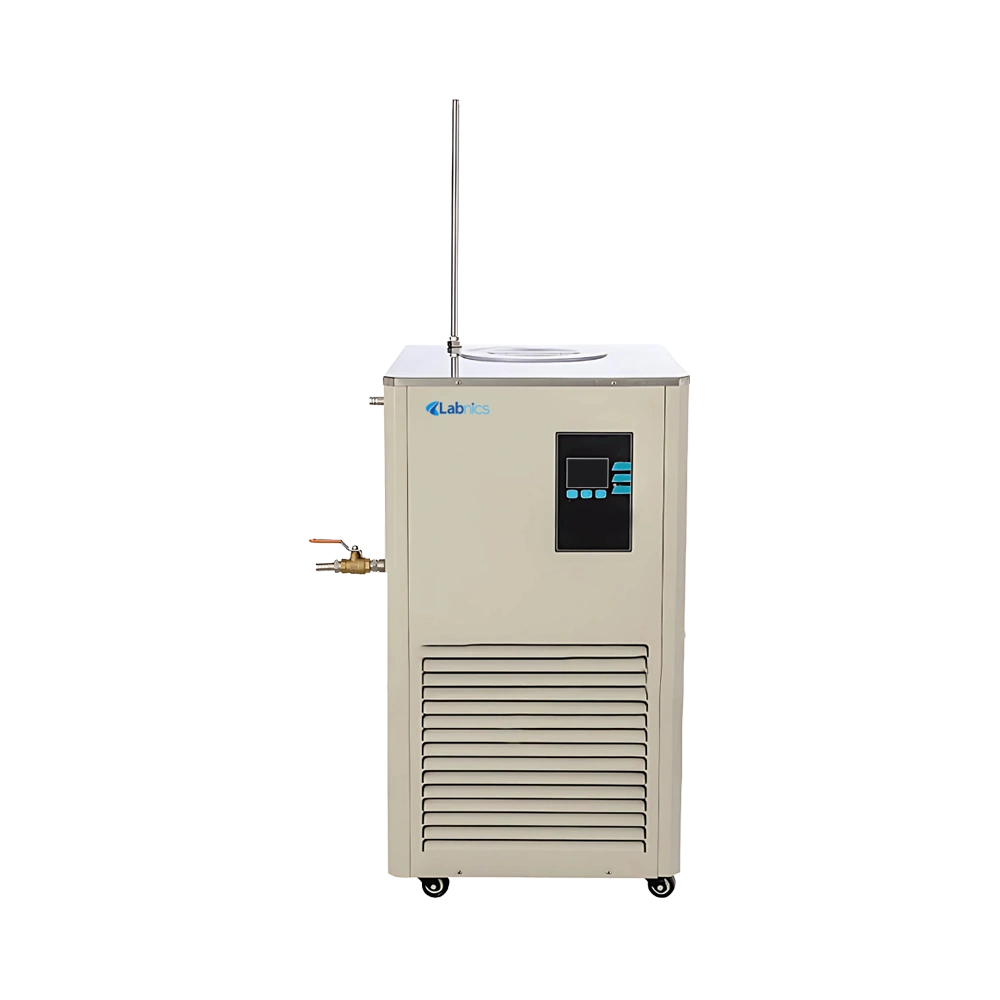

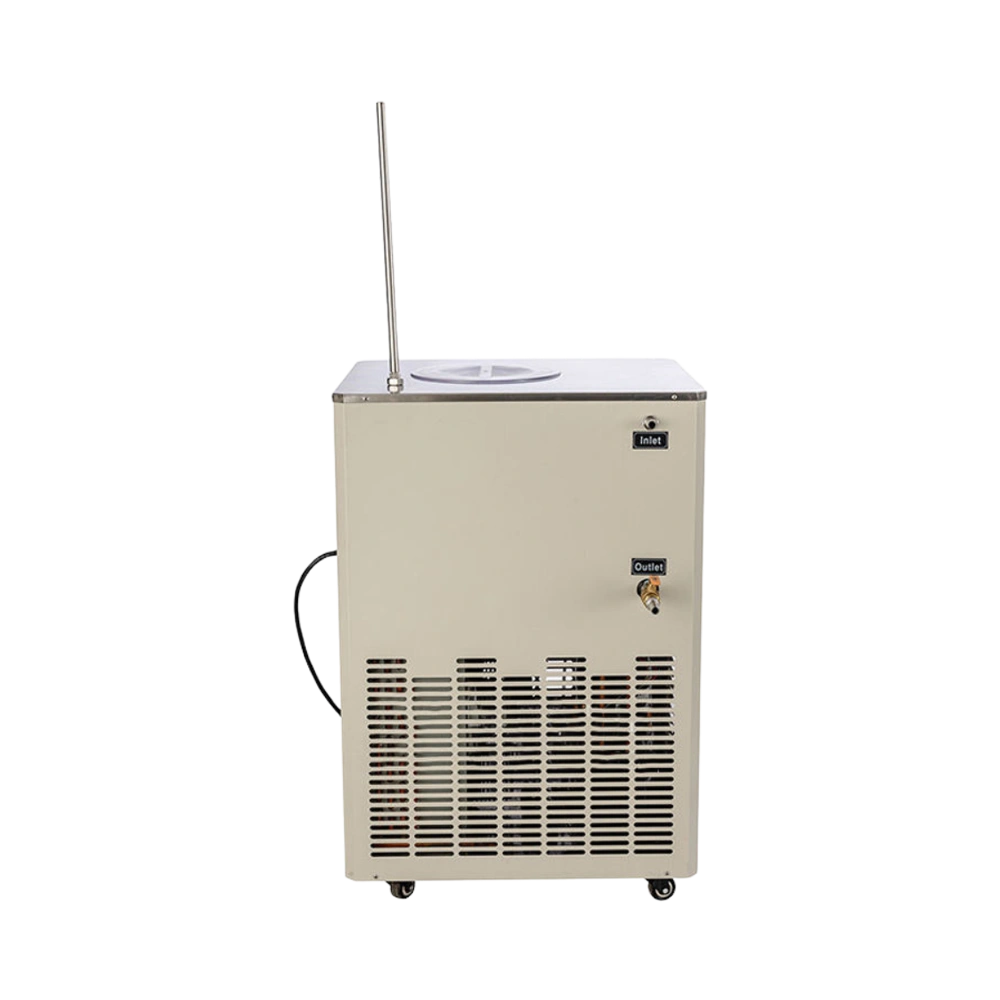

Recirculating Chiller NRC-210 delivers reliable performance across a wide temperature span from -40°C to room temperature. It generates an air volume of 2290 m³/h, allowing for rapid and efficient heat dissipation. This unit uses R22 refrigerant to ensure consistent and effective cooling performance. It features a microcomputer-based control system that offers precise regulation. Our chiller includes an air-cooled, fully enclosed compressor that ensures reliable operation.
$5,250.00
Specifications
| Tank capacity | About 33L |
| Temperature range | -40°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 11㎡ |
| Air volume | 2290m³/h |
| Refrigerant | R22 |

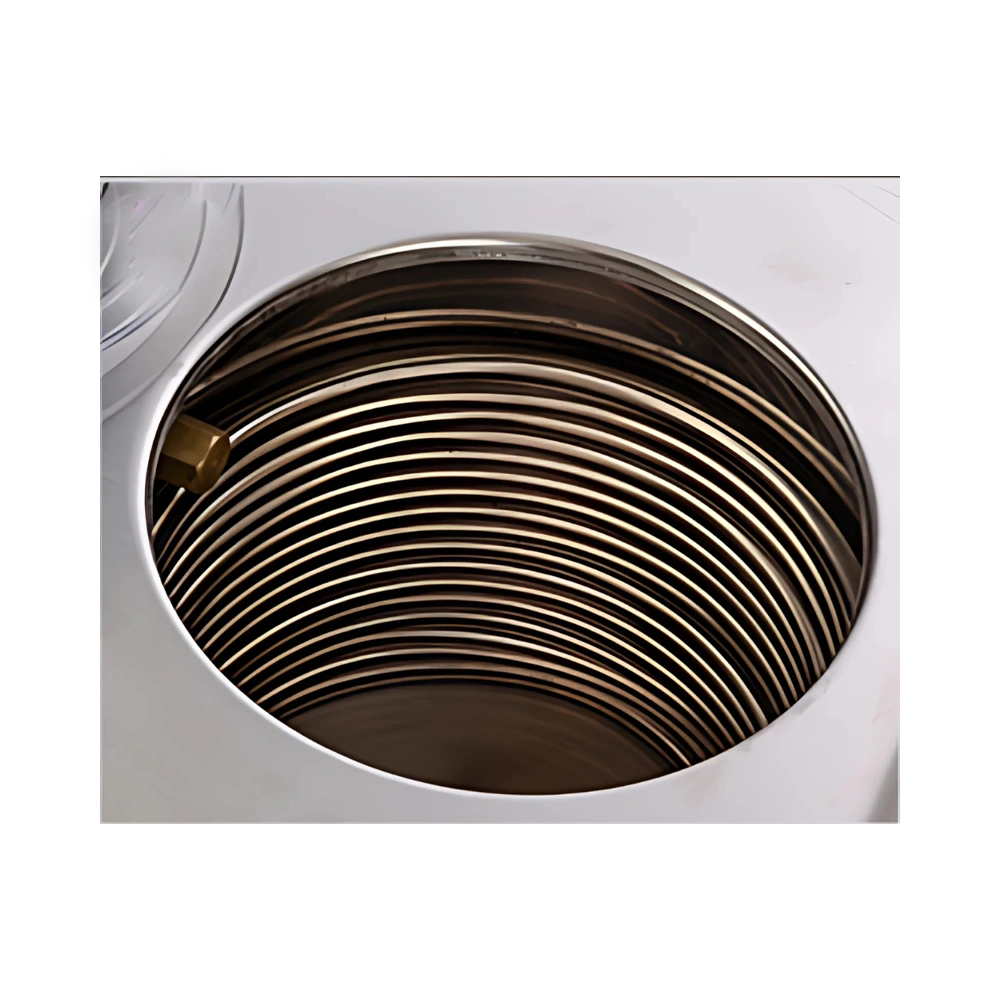

| Condensing coil | Φ12 Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 2P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 2205W |
| Cooling capacity | 6972W |
| Total power consumption | 2434W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ350×350 mm |
| Product dimension | 590×670×(975+500) mm |
| Packaging dimension | 720×590×1170mm |
| Net weight | 106 kg |
| Gross weight | 126 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-210
1: Can this Recirculating Chiller NRC-210 be used with other lab equipment?
Yes, our Recirculating Chiller is compatible with various devices such as rotary evaporators, vacuum freeze-drying boxes, and circulating water pumps. This makes it a versatile addition to any lab setup.
2: Is the cooling performance sufficient for demanding tasks?
With a cooling capacity of 6972W and a powerful airflow of 2290 m³/h, the Recirculating Chiller offers rapid heat dissipation and dependable thermal control, even under continuous use.
3: How durable is the Recirculating Chiller NRC-210 for long-term use?
Our Recirculating Chiller is constructed with an anti-corrosion-coated body and high-quality internal components like PT100 sensors and nickel-plated coils. These features ensure longevity and dependable operation over time.
4: What kind of safety protections does the Recirculating Chiller NRC-210 include?
The Recirculating Chiller includes overcurrent, overheating, and delayed start protections. These built-in safeguards protect both the equipment and the surrounding systems during operation.
5: Is it necessary to change the refrigerant?
The R22 refrigerant typically does not need frequent replacement unless there's a leak or a significant drop in cooling efficiency. A certified technician should handle any refrigerant-related servicing.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
