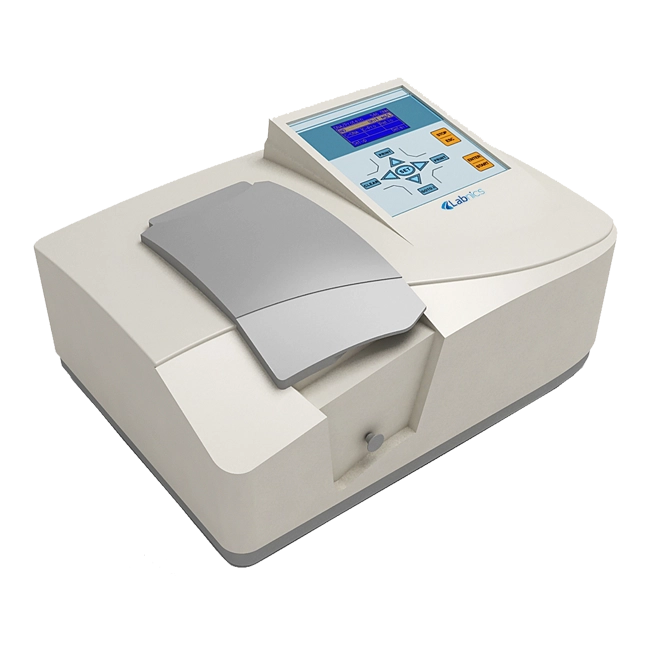

Single Beam UV-Vis Spectrophotometer NSUVS-102

Single Beam UV-Vis Spectrophotometer NSUVS-102 is a compact and ergonomically designed analytical instrument for optical measurements such as transmittance or reflectance of transparent chemical solutions or opaque solids. It is equipped with tungsten lamp as a source of light and silicon photodiode as detector. It runs in a UV visible range of electromagnetic light spectrum with single beamed, blazed holographic grating optical system for optimized selection of wavelength across the working range for precise analysis.

---

$4,750.00

Buy Now Catalog

Specifications

Wavelength Range	190~1100nm
Spectral Bandwidth	1.8nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤ 0.2nm
Wavelength Resolution	0.1nm
Photometric Range	0~200 %T,( -0.3 ~ 3A) , 0~9999 C
Photometric Accuracy	± 0.002A (0~0.5A), ±0.003A (0.5~1A), ± 0.3 %T (0~100 %T)
Photometric Repeatability	≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2 %T (0~100%T)
Stray Light	≤ 0.05 %T (220/360nm)
Stability	≤ 0.002A/h (500nm,0A)
Noise	≤0.2%T/3min(250/500nm,0%T)；≤ 0.5%T/3 min(250/500nm,100 %T)
Baseline Flatness	±0.002A
Power supply	AC 90- 250V,50/60Hz
Dimensions (W×D×H)	545 × 468 × 245mm
Weight	18 kg

Features

• Performs analysis like Photometric T%, Absorbance measurements, Standard Curve System, Time Scan Kinetics etc
• Low noise and Low stray light
• Data and Curve can be stored in real-time
• Reinforced baseboard and bracket assures durability
• LCD Display made with numeric keypad

Applications

• It is an ideal instrument which is widely used in Research laboratories, Research Organizations or Institutes for educational purpose, QC laboratories.

Standard Accessories

Accessories No	Name
1	1 cm glass cuvettes
2	Output Port USB Port & RS232 Port

Optional Accessories

Accessories No	Name
1	Mini Serial Printer
2	Software: UV-BASIC, UV-PRO, UV PRO(AT)
