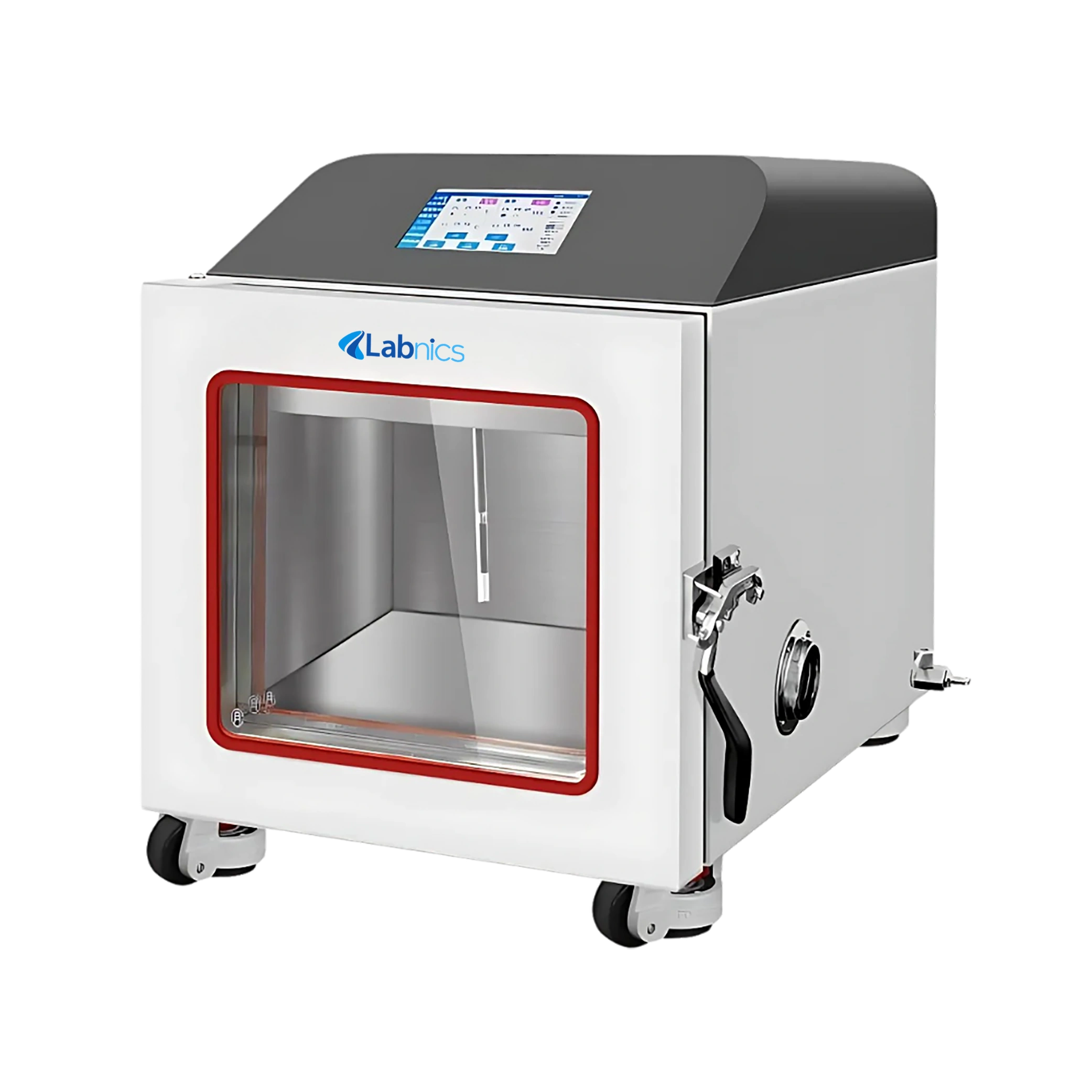

Temperature and Humidity Test Chamber NTHC-500

Temperature and Humidity Test Chamber NTHC-500 is compact and efficient, it runs on 220V, 50Hz with power consumption under 1 kW. It offers high resolution of 0.01℃ / 0.01% RH with excellent stability and uniformity. This features a precise temperature of 5–50℃ and humidity of 10–90% RH control. It offers high resolution of 0.01℃ / 0.01% RH with excellent stability and uniformity. This seven-inch touchscreen and privacy observation window ensure easy monitoring.

---

$12,775.00

Buy Now Catalog

Specifications

Chamber Volume	28L
Temperature Resolution	0.01℃
Humidity Resolution	0.01% RH
Temperature Range	5℃ to 50℃
Temperature Fluctuation	≤±0.2℃ (at 15℃, 20℃, 30℃)
Temperature Uniformity	≤0.3℃ (at 15℃, 20℃, 30℃)
Humidity Range	Aprrox.10% RH to 90% RH (at 20℃)
Humidity Fluctuation	≤±0.8% RH (at 20℃)
Humidity Uniformity	≤1% RH (at 20℃)
Display	7-inch touchscreen
Observation Window	Privacy and panoramic view
Test Holes	2 holes (φ50 mm)
Power Consumption	<1 kW
Power Supply	220V, 50Hz
Dimension (L×B×H)	500 × 670 × 600 mm
Packaging Dimension (L×B×H)	860 × 540 × 790 mm
Net Weight	48 kg
Gross Weight	98 kg

Features

• Panoramic View
• High Precision Control
• Adjustable Test Holes
• Low Power Usage
• Stable Temperature
• Accurate Humidity
• Full Auto Control

Applications

• Temperature and Humidity Test Chamber NTHC-500 is used to simulate controlled temperature and humidity environments for testing product durability, material behaviour. It is commonly used during product development, research trials, and quality control processes.
