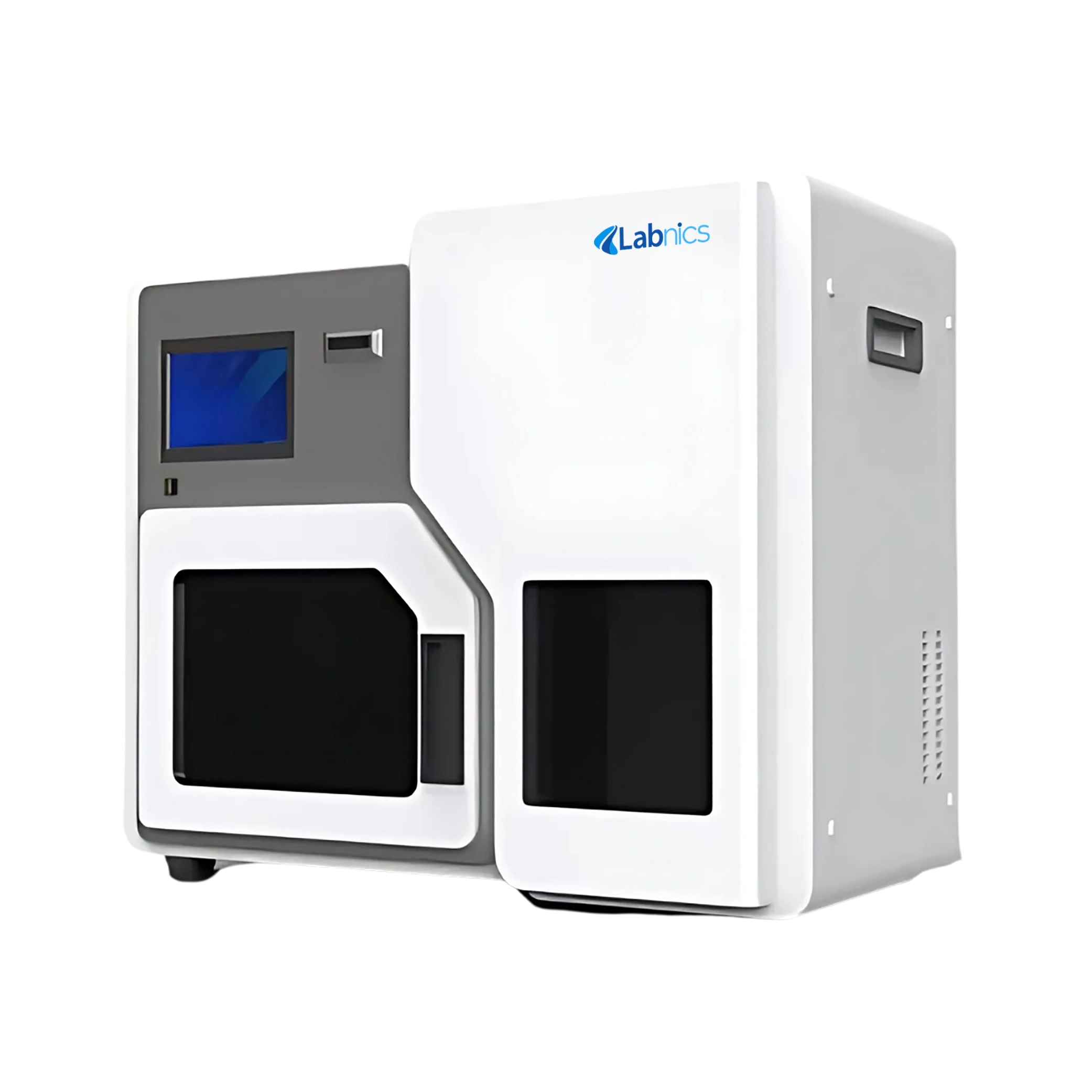

TOC Analyzer NTOC-300

TOC Analyzer NTOC-300 operates at 0 to 40°C and measures 0 to 1000 mg/L undiluted or up to 30,000 mg/L diluted samples. It uses catalytic oxidation at high temperatures to provide precise carbon analysis. This unit computes TOC and quantifies inorganic and total carbon. Our system monitors water quality quickly, accurately, and safely.This analyzer ensures reliable findings with minimal use of reagents and samples.

---

$20,475.00

Buy Now Catalog

Specifications

Measurement Range	0 to 1000 mg/L (undiluted), up to 0 to 30000 mg/L (diluted)
Repeatability	≤ 3%
Accuracy (TC)	±0.1% FS or ±5% (whichever is larger)
Accuracy (IC)	±0.1% FS or ±4% (whichever is larger)
Linearity	R² ≥ 99.9%
Detection Limit	0.5 mg/L
Injection Volume	10 to 500 μL (adjustable)
External Storage	USB drive support
Ambient Temperature	0 to 40℃
Relative Humidity	10 to 85%
Gas Supply	High-purity oxygen (≥99.999%)
Water Requirement	Carbon dioxide-free water (TOC≤0.5 mg/L)
Combustion Temperature	680℃ to 1200℃
Instrument Placement	Minimum 20 cm clearance on all sides; no objects should be placed above instrument
Acid Reagent	10% phosphoric acid
Power Consumption	1000W (during furnace heating)
Power Supply	AC 220V±10%, 50/60Hz
Dimensions (L × B × H)	60 × 40 × 49mm
Weight	30 Kg

Features

• Rapid analysis
• Real-time flow monitoring
• Automatic acid injection and drainage
• Multi-directional pipeline cleaning and purging
• High-accuracy detection
• Low sample and reagent consumption
• 7-inch touchscreen Display

Applications

• TOC Analyzer NTOC-300 is utilized for quantifying Total Organic Carbon (TOC) in water samples, such as surface water, groundwater, wastewater, and industrial effluents. It is widely applied in environmental monitoring, municipal water systems, and industries like chemical and power plants for reliable carbon analysis.
