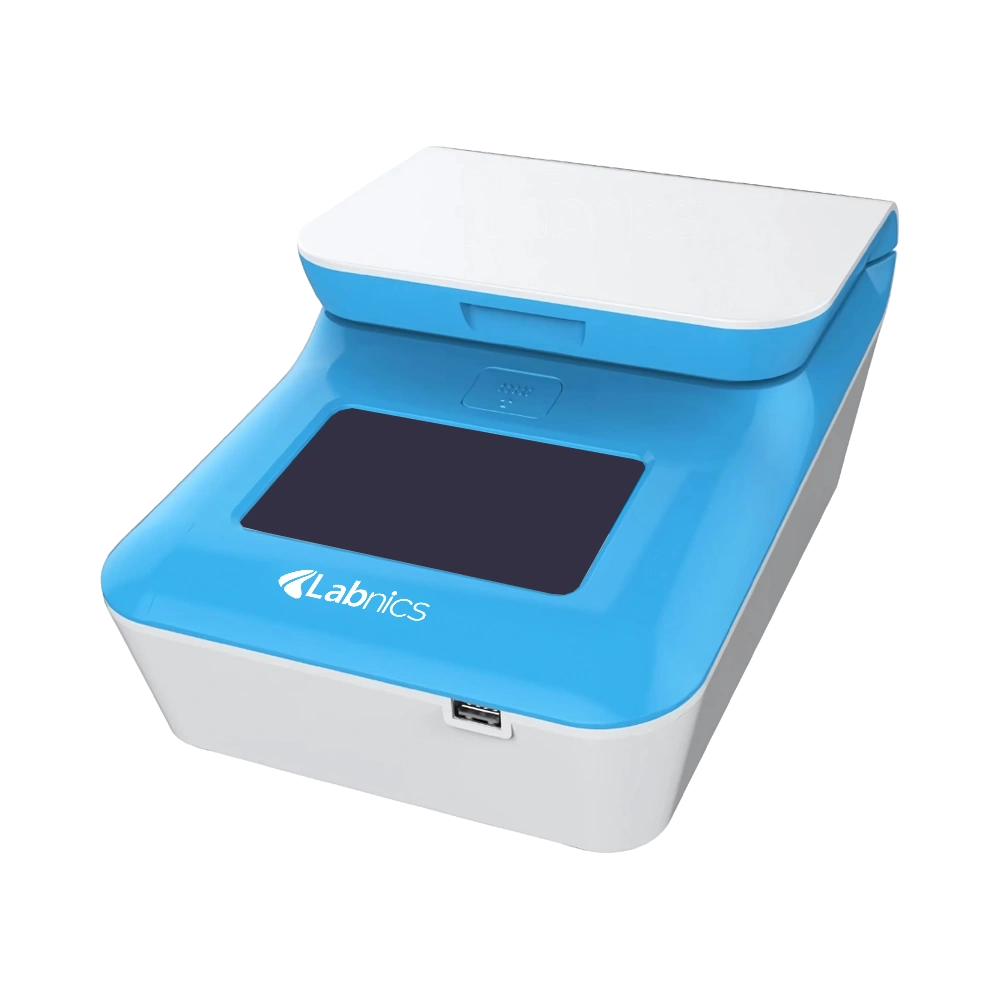

Touch Thermal Cycler NTTC-201

Touch Thermal Cycler NTTC-201

Touch Thermal Cycler NTTC-201 features a capacity of 32×0.2 ml tubes arranged in a 4×8 layout. It accommodates reaction volumes ranging from 5 to 80 μl. This unit offers a normal gradient type with an adjustable gradient range between 1 and 30°C. It has a reinforced aluminum module with anodizing technology for enhanced durability and heat conduction. Our thermal cycler includes a one-click quick incubation function for efficient and convenient sample processing.


$2,863.00

Catalog

Specifications

Capacity 32×0.2ml (4×8 layout)
Tube 0.2ml tube, 8 strips
Reaction capacity 5 to 80μl
Temperature range 4 to 100°C
Maximum ramp rate 5°C/s
Temperature uniformity ≤±0.2°C
Temperature accuracy ≤±0.2°C
Temperature display resolution 0.1°C
Temperature control method Block/tube
Ramping rate adjustable 0.1 to 5°C/s
Hold at 4°C Forever
Gradient type Normal
Gradient speed 1 to 30°C
Gradient temperature range 30 to 100°C
Hot lid temperature range 30 to 115°C
Maximum no. of steps 30
Maximum no. of cycles 100
Maximum no. of programs 10000 + (USB Flash)
Time increment/decrement 1s to 600s
Temperature increase/decrease 0.1 to 10°C
Pause function Yes
Auto data protection Yes
Touchdown function Yes
Long PCR function Yes
Language English
Mobile phone app Yes
LCD 5-inch, 800×480 pixels
Communication USB 2.0, WIFI
Power consumption 200W
Power supply 100 to 240VAC, 50/60Hz
Product dimension 267×190×115mm
Weight 2.6 kg

Features

  • Touchscreen interface
  • Real-time program display
  • Long service life Peltier units
  • Remote monitoring support
  • Large program memory
  • Adjustable lid temperature
  • Energy-efficient operation

Applications

  • Touch Thermal Cycler NTTC-201 is used to precisely amplify DNA samples through controlled thermal cycling, enabling various molecular biology and genetic research applications. It is commonly used in laboratories, research institutes, and clinical settings for PCR, gene expression analysis, and mutation detection.

Ask Expert

FAQ for Touch Thermal Cycler NTTC-201

1: How durable is the Touch Thermal Cycler NTTC-201?

Our Touch Thermal Cycler features a reinforced aluminum module with anodizing technology, which ensures excellent heat conduction and corrosion resistance. The long-life Peltier units further extend the device’s lifespan, making it reliable for prolonged use.

2: How precise is the temperature control in the Touch Thermal Cycler?

The Touch Thermal Cycler maintains temperature accuracy within ±0.2°C and uniformity of ?±0.2°C across the block. This precision ensures consistent and reliable amplification results every time.

3: What happens if there is a power failure during a run?

The Touch Thermal Cycler includes an automatic restart function that resumes the unfinished program once power is restored. This feature protects experiments from interruptions and prevents loss of valuable data.

4: Can the Touch Thermal Cycler NTTC-201 be controlled remotely?

Yes, our Touch Thermal Cycler supports WiFi connectivity and can be controlled via a mobile phone app or computer. This allows monitoring and managing runs remotely, adding flexibility for busy lab environments.

5: How often should the Touch Thermal Cycler NTTC-201 be cleaned?

Regular cleaning after each use is recommended to prevent contamination and maintain optimal performance. Use a soft, damp cloth with mild detergent to clean the exterior and avoid harsh chemicals on the touchscreen and heating block.

Related Models Of Touch Thermal Cycler

Labnics Touch Thermal Cycler ensures precise thermal regulation for accurate temperature control. They feature large LCD screens for easy navigation and real-time monitoring. These units are equipped with durable Peltier units for consistent heating and cooling performance. They provide extensive data storage and multiple program settings for enhanced flexibility. Our Thermal Cycler supports rapid heating and cooling transitions, ensuring efficient PCR cycles.
