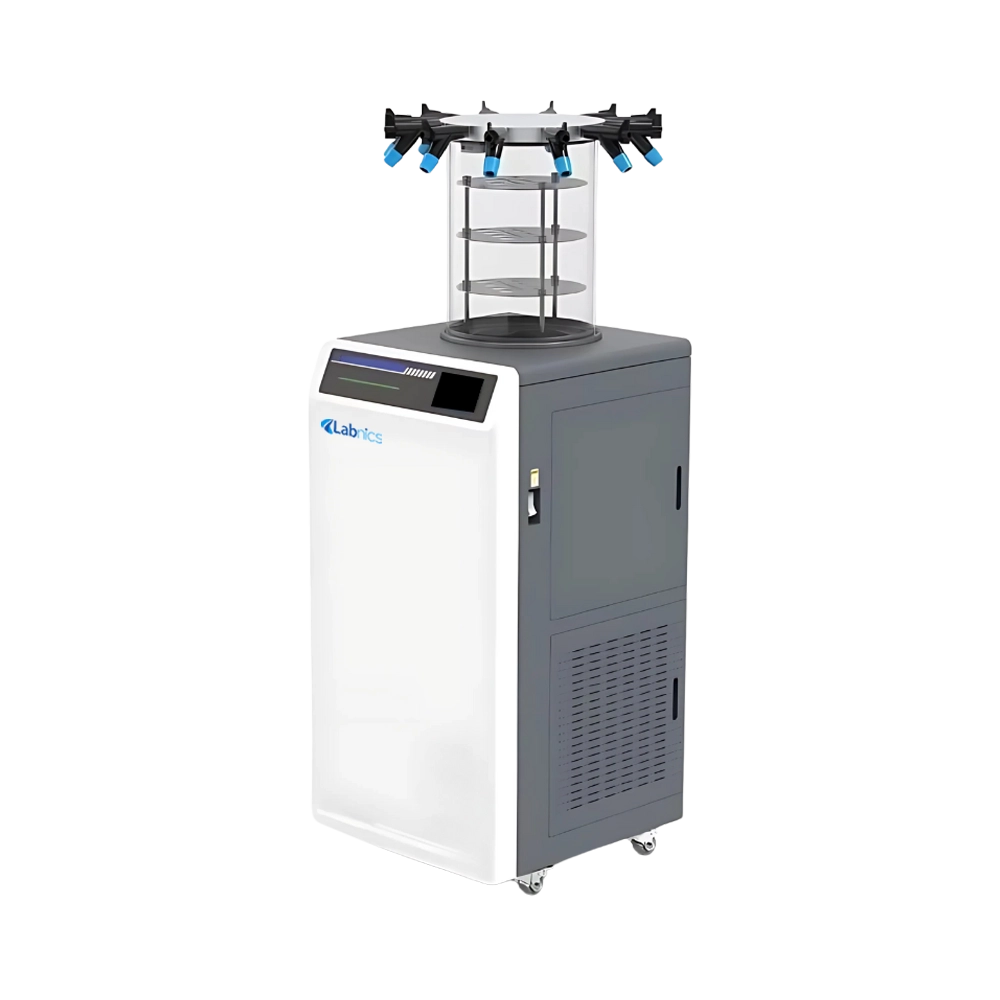

Vacuum Freeze Dryer NVFD-203 offers a condenser temperature of -90°C and a capacity of 12 kg. Our freezer is built with high-grade stainless steel, which offers long-lasting performance and easy-to-clean surfaces. It is equipped with a user-friendly touchscreen interface that allows for easy programming. This unit features an energy-efficient design that reduces operating costs while maintaining high performance. It offers simultaneous freeze-drying of various sample types for enhanced workflow flexibility.
$24,369.00
Specifications
| Capacity | 12kg |
| Temperature | -90°C |
| Cold Trap Volume | 20L |
| Sample Shelf | 3 to 10 layers (optional) |
| External Valve | 12 pieces/ 24 pieces |
| Power Consumption | 1.6 kW |
| Power Supply | 220V, 50Hz |
| Dimensions (W × D × H) | 525 × 570 × 1080 mm |
| Weight | 87 kg |
Features
Applications
Standard Accessories
Oil Mist Filters
Optional Accessories
Aluminum upper cover and external valve（12 ports）

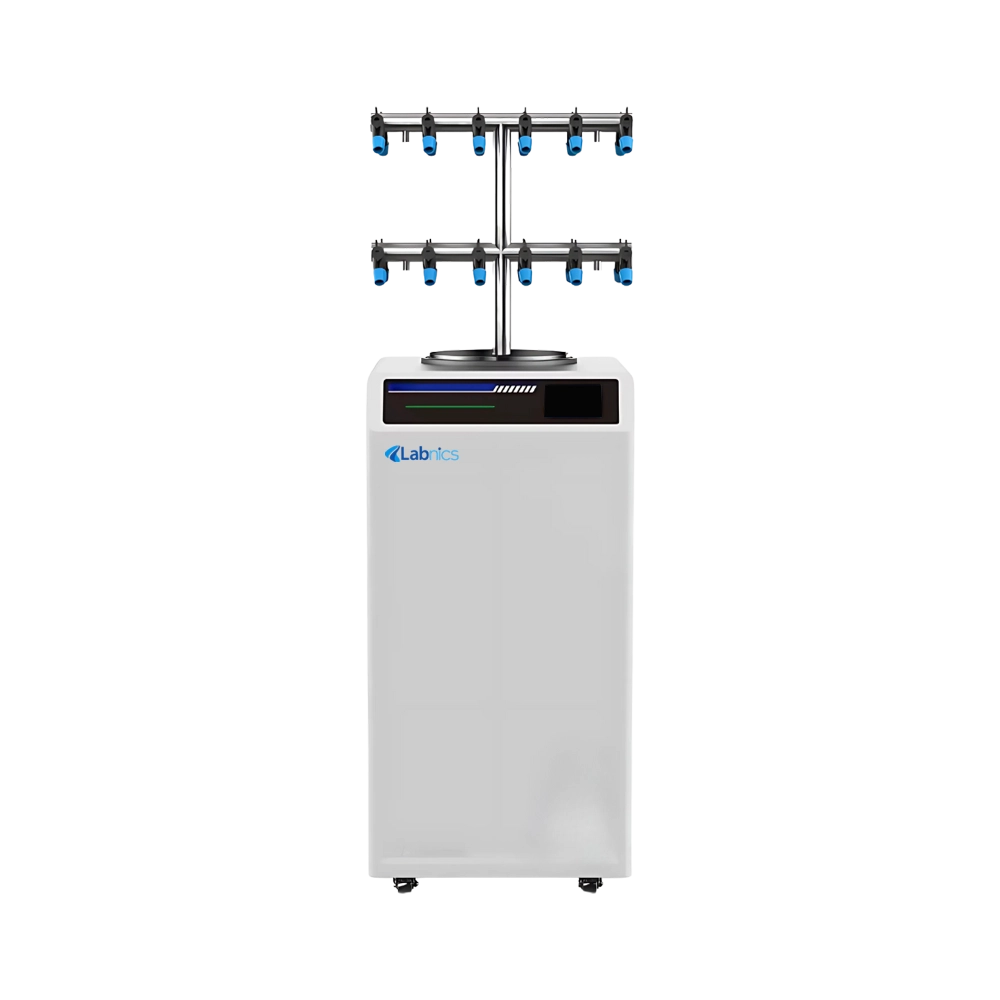

T-frame 12 ports
Ask Expert
FAQ for Vacuum Freeze Dryer NVFD-203
1: Is the Vacuum Freeze Dryer NVFD-203 easy to operate for first-time users?
Yes, the interface is user-friendly and designed for intuitive operation. Training and user manuals are also provided for smooth onboarding.
2: Can Vacuum Freeze Dryer NVFD-203 be integrated into an existing lab setup?
Yes, its compact design and modular features make it easy to integrate into most laboratory setups without major adjustments.
3: Can the Vacuum Freeze Dryer NVFD-202 operate at low temperatures?
Yes, it is designed for low-temperature operation, with ice condenser temperatures reaching as low as -90°C.
4: What type of chamber does the unit use?
The default chamber is a bell-shaped design, which offers even distribution and is suitable for most standard freeze-drying applications.
5: Is this system suitable for organic solvents?
Yes, the system is equipped with PTFE anti-corrosion coating on the cold trap and condensing coil, making it suitable for handling organic solvents.
Labnics Vacuum Freeze Dryer removes moisture from sensitive substances while preserving their structure. They consume minimal energy and operate with high efficiency. Our freeze dryers use vacuum chambers to protect heat-sensitive materials from thermal damage. These are built with durable, corrosion-resistant materials that ensure long-term performance. They incorporate eco-friendly features and low-noise operations for various applications.
