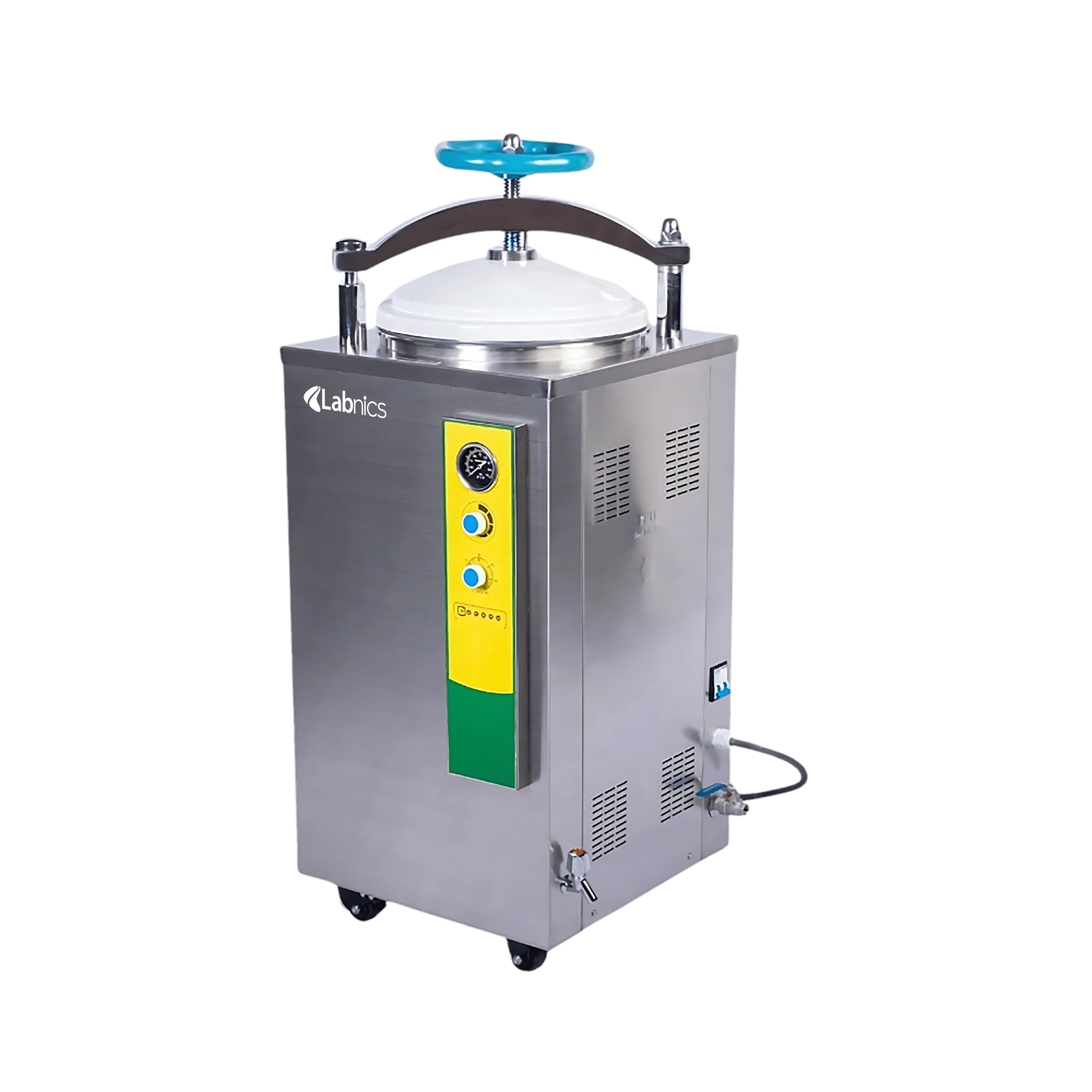

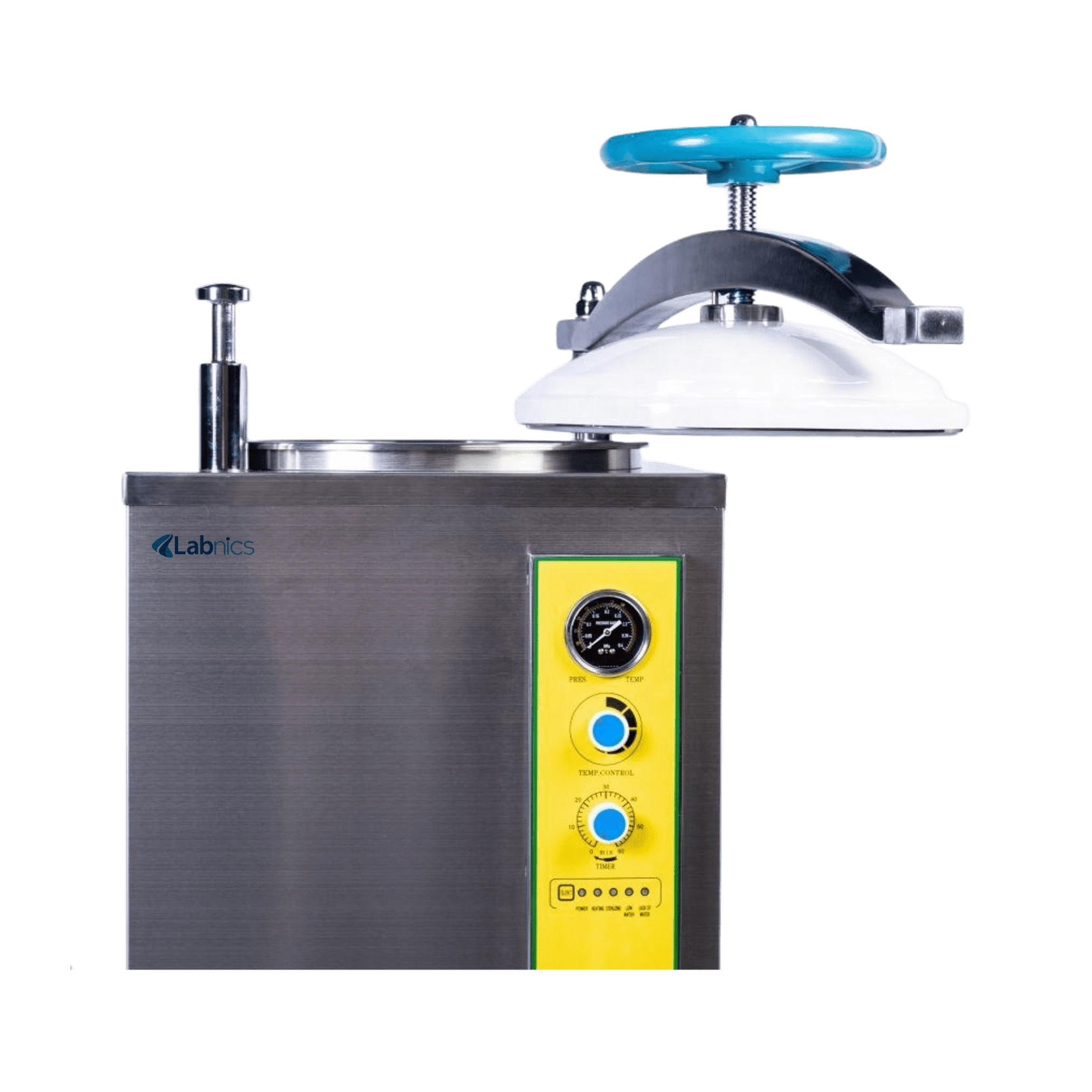

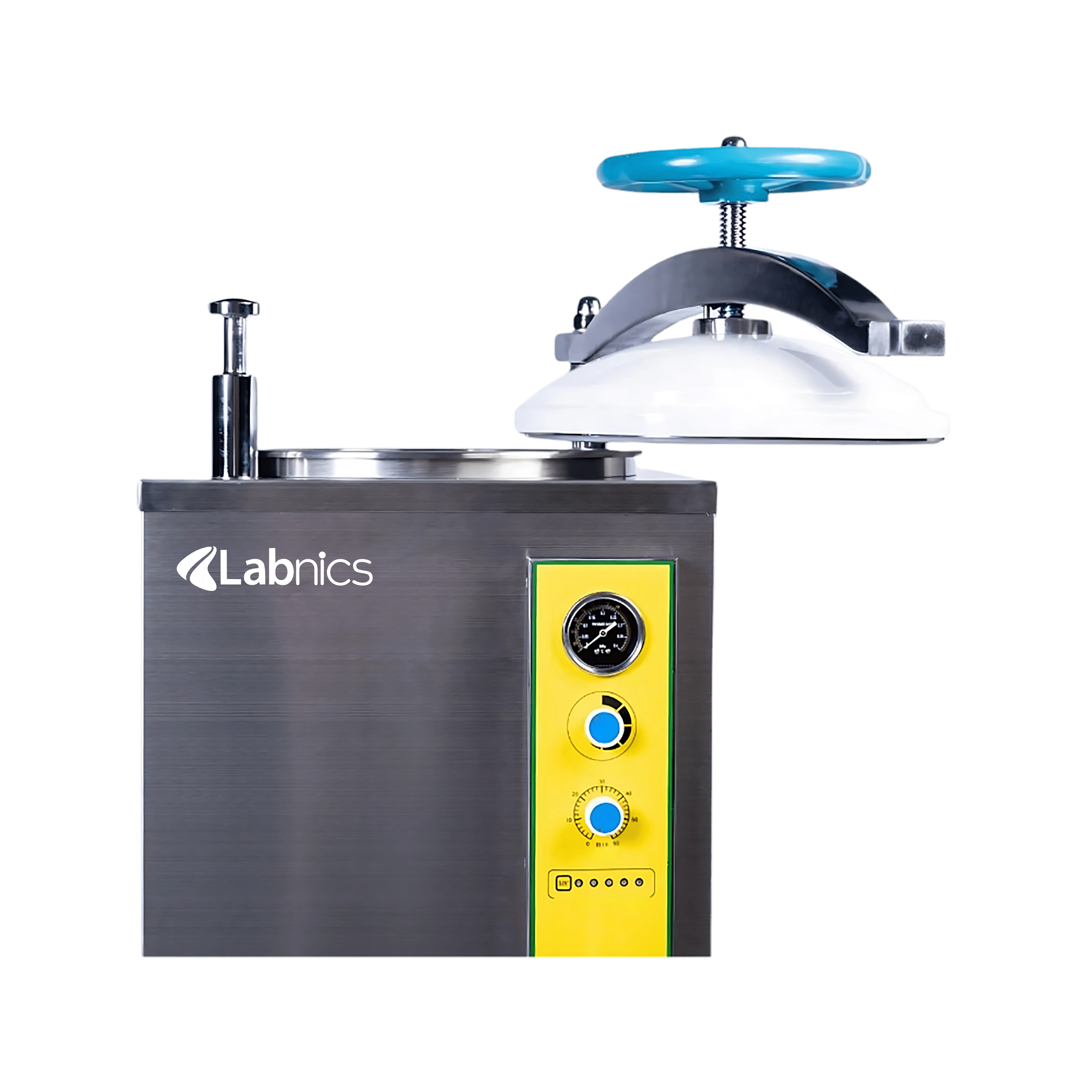

Vertical Autoclave NVA-206

Vertical Autoclave NVA-206

Vertical Autoclave NVA-206 features a 75L capacity, providing efficient sterilization for various applications. It is made with high-quality stainless steel, offering resistance to corrosion and wear. This unit has a pressure safety lock that prevents the door from opening while pressurized. It automatically shuts off and emits a beep when the sterilization cycle is complete, ensuring safe operation. Our vertical autoclave includes an indicator light to show the current working state.


$2,550.00

Catalog

Specifications

Capacity 75L
Chamber volume 400×600mm
Working temperature 134°C
Working pressure 0.22Mpa
Temperature range 105°C to 134°C
Maximum working pressure 0.23Mpa
Heat average ≤±1°C
Timer range 0 to 60 min
Body Stainless steel
Door Wheel-type, quick-open door
Total CBM 0.48CBM
Power consumption 3×1.5kW
Power supply AC220V, 50Hz
Overall dimension 550×530×1180mm
Packaging dimension 610×610×1280mm
Gross weight 113kg
Net weight 93kg

Features

  • Self-inflating airtight seal
  • Easy to operate
  • Standard sterilizing baskets
  • Quick door operation
  • Built-in safety mechanisms
  • User-friendly interface

Applications

  • Vertical Autoclave NVA-206 is used for sterilizing equipment, instruments, and materials to ensure hygiene and eliminate harmful microorganisms. It is commonly used in medical, laboratory, pharmaceutical, and industrial settings.

Ask Expert

FAQ for Vertical Autoclave NVA-206

1: How safe is this Vertical Autoclave NVA-206 during operation?

This Vertical Autoclave features a pressure safety lock that keeps the door securely shut while under pressure, preventing accidental openings. It ensures protection for the operator and the environment throughout the sterilization process.

2: Is the Vertical Autoclave easy to use?

Designed with a user-friendly interface and quick door operation, the Vertical Autoclave simplifies the entire process. An indicator light displays the current working status, and the unit automatically shuts off and alerts with a beep once the cycle completes.

3: What material is the Vertical Autoclave NVA-206 made of?

The body is constructed from high-quality stainless steel, offering excellent durability and resistance to corrosion and high temperatures. This ensures a longer lifespan and easier cleaning after each use.

4: What sealing mechanism does the Vertical Autoclave NVA-206 use?

Our Vertical Autoclave uses a self-inflating airtight seal that maintains secure chamber closure during sterilization. This mechanism helps prevent steam leakage and ensures optimal sterilization conditions inside the chamber.

5: Can the sterilization time be adjusted?

Yes, the timer is adjustable from 0 to 60 minutes, allowing flexible control based on the type and quantity of items being sterilized. This makes it easy to handle various sterilization needs efficiently.

6: Is the Vertical Autoclave suitable for use in laboratories with limited space?

Yes, the vertical design is especially suited for compact spaces. It takes up minimal floor area while offering sufficient internal volume for sterilizing multiple items at once. This makes it a preferred choice in many research and clinical labs.

7: Can the Vertical Autoclave handle different types of loads, like liquids and instruments?

Yes, our Vertical Autoclave is designed to sterilize a wide range of materials, including liquids, surgical instruments, culture media, and lab glassware. With adjustable temperature and time settings, it adapts easily to various sterilization needs.

8: How durable is the construction of the Vertical Autoclave?

The Vertical Autoclave is built with high-grade stainless steel that resists corrosion and ensures a long operational life. The rugged outer body and quality internal components are designed to withstand repeated high-temperature cycles. This ensures dependable performance over time.

9: Is the Vertical Autoclave easy to maintain?

Routine cleaning and basic maintenance, like water tank refilling and gasket checks, are straightforward. The design allows easy access to internal parts for inspection. With proper care, it continues to perform efficiently with minimal servicing.


Vertical Autoclave NVA-206

Vertical Autoclave NVA-206

Related Models Of Vertical Autoclaves

Vertical Autoclave are designed with built-in safety mechanisms that prevent damage and ensure user safety. Our vertical autoclaves are designed to operate efficiently, ensuring minimal energy consumption. They feature intuitive controls and clear displays for easy monitoring. These autoclaves are crafted from high-quality stainless steel, providing exceptional durability. They include an electronic lock system that secures the door during the sterilization cycle.
