Vertical Autoclave NVA-207

Vertical Autoclave NVA-207

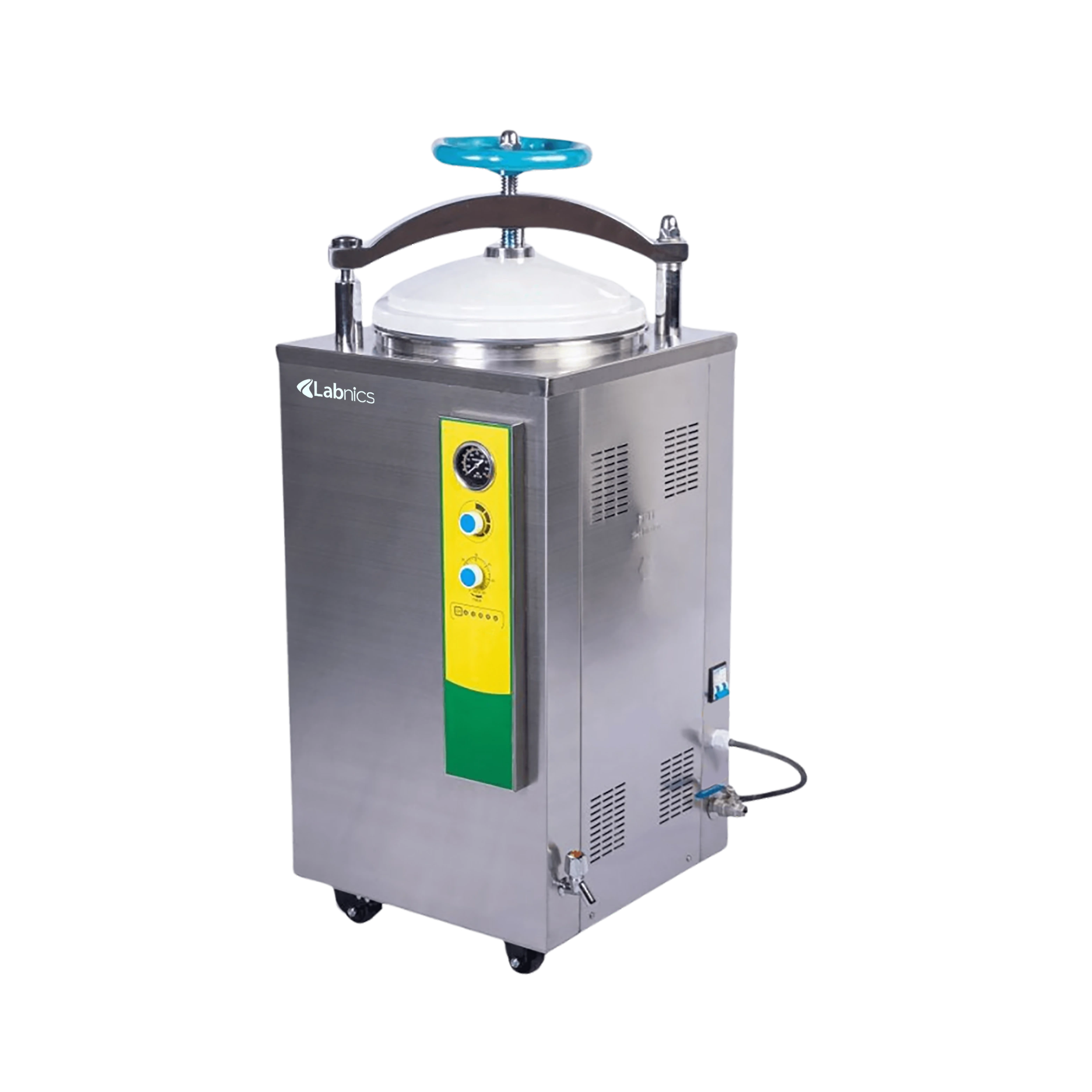

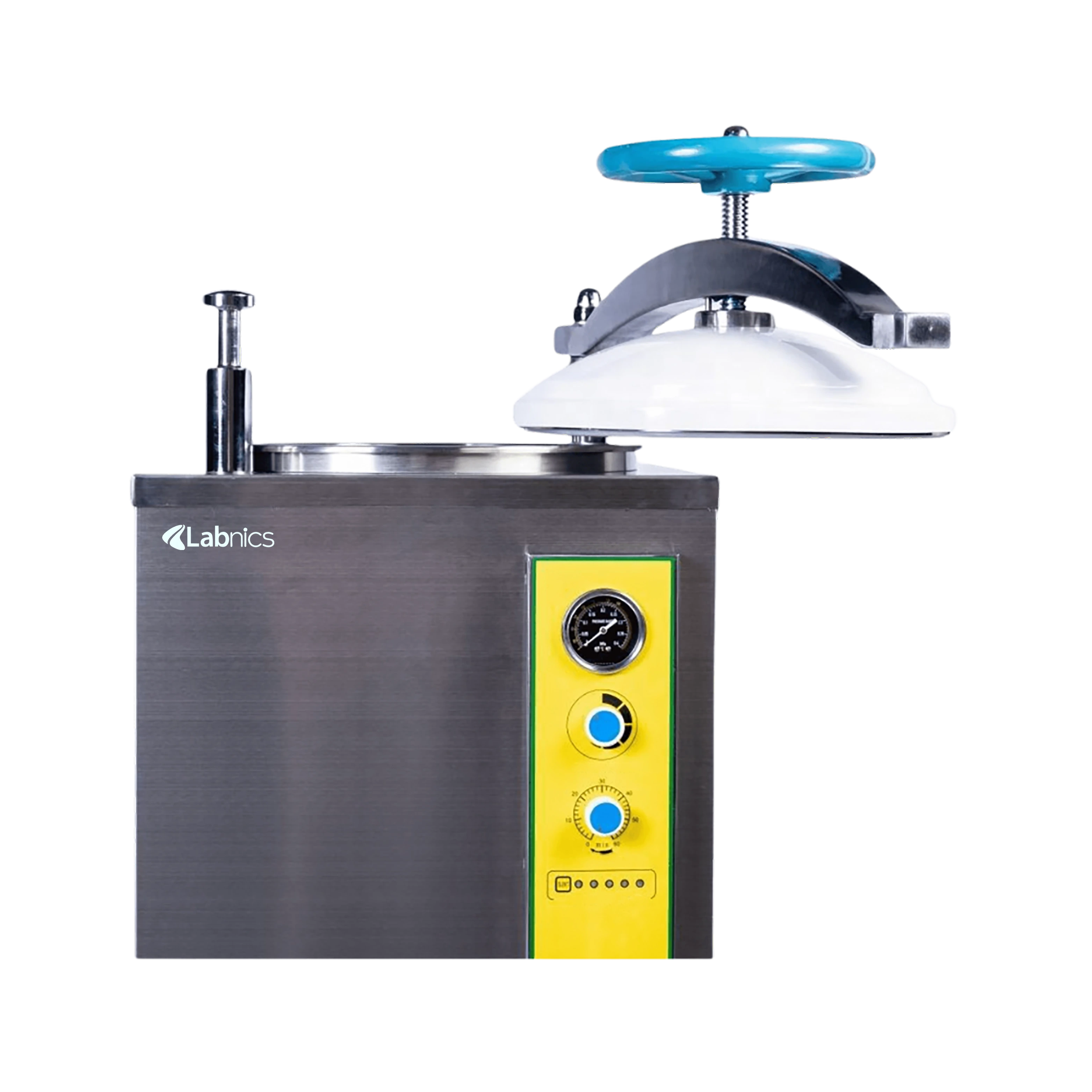

Vertical Autoclave NVA-207 is designed with a 100L capacity for efficient and reliable decontamination. It features a 0 to 60 mins timer for adjustable sterilization time. This unit includes a self-inflating seal that ensures an airtight closure during operation. It has a hand wheel type quick-open door for easy and fast loading and unloading. Our vertical autoclave is equipped with an indicator light to display the current working conditions.


$2,938.00

Catalog

Specifications

Capacity 100L
Chamber volume 440×650mm
Working temperature 134°C
Working pressure 0.22Mpa
Temperature range 105°C to 134°C
Maximum working pressure 0.23Mpa
Heat average ≤±1°C
Timer range 0 to 60 min
Body Stainless steel
Door Wheel-type, quick-open door
Total CBM 0.56CBM
Power consumption 3×1.5kW
Power supply AC220V, 50Hz
Overall dimension 580×560×1290mm
Packaging dimension 640×640×1360mm
Gross weight 131kg
Net weight 105kg

Features

  • Stainless steel construction
  • Double-scale pressure gauge
  • Auto shut-off after sterilization
  • Water-lack protection features
  • Easy to operate and maintain

Applications

  • Vertical Autoclave NVA-207 is used for sterilizing medical, laboratory, and industrial equipment by applying heat and pressure to eliminate bacteria and viruses. It is widely applied in hospitals, laboratories, clinics, and pharmaceutical industries.

Ask Expert

FAQ for Vertical Autoclave NVA-207

1: What safety features are included in this Vertical Autoclave NVA-207?

The Vertical Autoclave includes auto shut-off after sterilization and water-level protection, which helps prevent overheating and ensure safe operation. These features offer peace of mind during unattended use.

2: Is the Vertical Autoclave NVA-207 easy to operate and maintain?

Yes, the Vertical Autoclave is designed for ease of use with a simple control interface and a low-maintenance stainless steel body. The hand wheel quick-open door also allows fast loading and unloading.

3: How does the door mechanism work?

The Vertical Autoclave uses a wheel-type quick-open door system combined with a self-inflating seal. This ensures an airtight closure for effective sterilization while allowing hassle-free handling.

4: What kind of materials is the chamber made of?

The entire construction, including the chamber, is made from high-quality stainless steel. This ensures durability, corrosion resistance, and long-term performance.

5: How is the water-lack protection maintained?

Ensure the water reservoir is always filled before use. The water-lack protection system works automatically but may need sensor cleaning to function correctly over time.

6: Is the Vertical Autoclave suitable for use in laboratories with limited space?

Yes, the vertical design is especially suited for compact spaces. It takes up minimal floor area while offering sufficient internal volume for sterilizing multiple items at once. This makes it a preferred choice in many research and clinical labs.

7: Can the Vertical Autoclave handle different types of loads, like liquids and instruments?

Yes, our Vertical Autoclave is designed to sterilize a wide range of materials, including liquids, surgical instruments, culture media, and lab glassware. With adjustable temperature and time settings, it adapts easily to various sterilization needs.

8: How durable is the construction of the Vertical Autoclave?

The Vertical Autoclave is built with high-grade stainless steel that resists corrosion and ensures a long operational life. The rugged outer body and quality internal components are designed to withstand repeated high-temperature cycles. This ensures dependable performance over time.

9: Is the Vertical Autoclave easy to maintain?

Routine cleaning and basic maintenance, like water tank refilling and gasket checks, are straightforward. The design allows easy access to internal parts for inspection. With proper care, it continues to perform efficiently with minimal servicing.


Vertical Autoclave NVA-207

Vertical Autoclave NVA-207

Related Models Of Vertical Autoclaves

Vertical Autoclave are designed with built-in safety mechanisms that prevent damage and ensure user safety. Our vertical autoclaves are designed to operate efficiently, ensuring minimal energy consumption. They feature intuitive controls and clear displays for easy monitoring. These autoclaves are crafted from high-quality stainless steel, providing exceptional durability. They include an electronic lock system that secures the door during the sterilization cycle.
