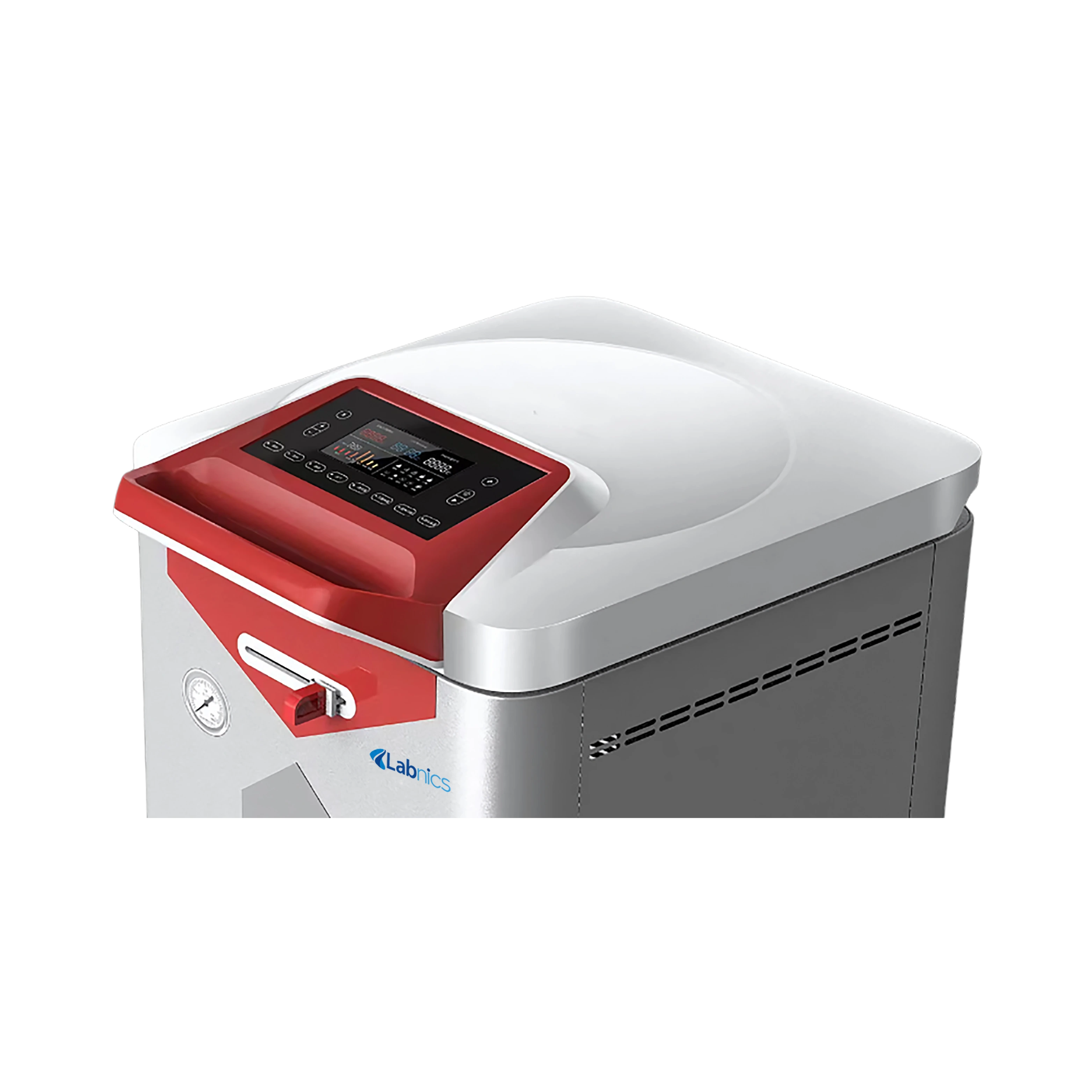

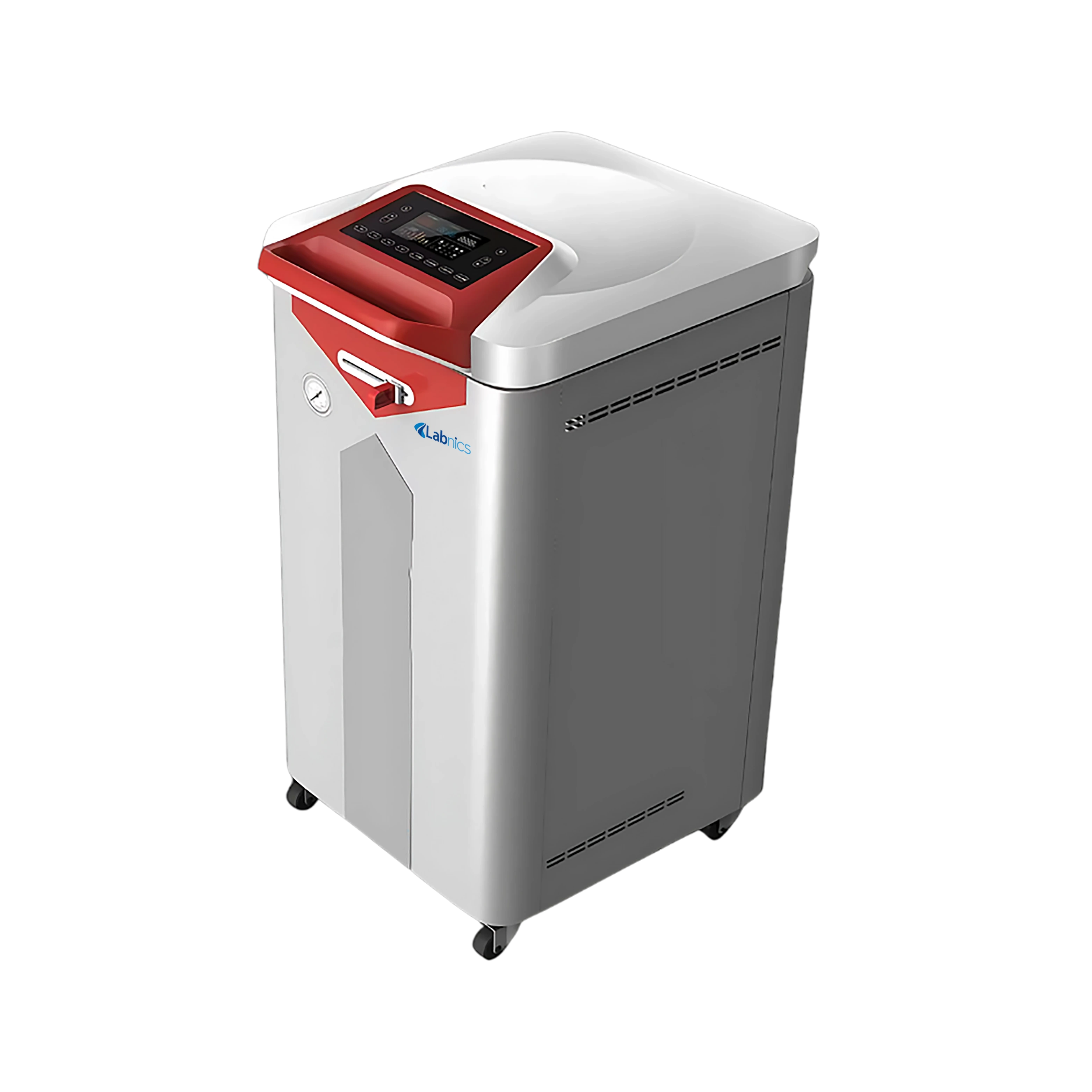

Vertical Autoclave NVA-400

Vertical Autoclave NVA-400

Vertical Autoclave NVA-400 is designed with a 60 L capacity and functions within an environmental temperature range of 5 to 40°C. It has a mirror-polished inner liner for a clean chamber. This autoclave includes an HD colour LCD touchscreen for real-time parameter monitoring and multi-level password management for enhanced security. Our unit features a flap-type door with mechanical and electronic interlocking for safety.


$4,938.00

Catalog

Specifications

Capacity 60 L
Environment Temperature 5 to 40°C
Environment Humidity 20 to 80%RH
Sterilization Temperature 105 to 135°C
Temperature Fluctuation Less than ±1°C
Temperature Uniformity Less than or equal to ±1°C
Melting Temperature 50 to 100°C
Heat Preservation Temperature 40 to 60°C
Sterilization Timer Range 0 to 240 minutes
Melting Timer Range 0 to 600 minutes
Heat Preservation Timer Range 0 to 600 minutes
Reservation Range 99h59 min
Design Pressure 0.28 MPa
Working Pressure 0.212 MPa
Cavity Size Ø380 × 555 mm
Number of Baskets 2
Power Consumption 3.2 kW
Power Supply 220 ± 10%V, 50 ± 2% Hz
Dimensions 550 × 588 × 830 mm
Net weight 84 kg
Gross weight 108 kg

Features

  • One-key steam drainage
  • Manual temperature correction
  • Integrated anti-ironing
  • User-friendly interface
  • Advanced pressure regulation system
  • Over-temperature and pressure protection

Applications

  • Vertical Autoclave NVA-400 is used for sterilizing laboratory glassware, media, instruments, and waste in research, clinical, and industrial settings.

Optional Accessories

Biosafety filter

Filter element (consumables)

Verification lead

Sample probe

Printer

Liquid tray

Ask Expert

FAQ for Vertical Autoclave NVA-400

1: Is there a function for melting or heat preservation?

Yes, the Vertical Autoclave includes dedicated melting and heat preservation modes. The melting temperature ranges from 50 to100°C, and the heat preservation setting ranges from 40 to 60°C. Both can be programmed for up to 600 minutes.

2: Can the sterilization process be scheduled in advance?

Our Vertical Autoclave offers a reservation function allowing you to pre-set the operation up to 99 hours and 59 minutes in advance. This makes it easier to plan operations without manual oversight.

3: What advanced features does this Vertical Autoclave NVA-400 include?

This Vertical Autoclave is equipped with an integrated anti-ironing system and advanced pressure regulation. These enhance operational safety while maintaining optimal sterilization conditions.

4: How easy is it to maintain and clean the Vertical Autoclave NVA-400?

Its mirror-polished inner liner helps resist residue buildup, making routine cleaning easier. One-key steam drainage also simplifies post-cycle cleanup, minimizing manual handling.

5: Is the Vertical Autoclave NVA-400 secure from unauthorized access?

Yes, the multi-level password management system restricts access to authorized users only. This adds a layer of operational control in shared or sensitive environments.

6: Is the Vertical Autoclave suitable for use in laboratories with limited space?

Yes, the vertical design is especially suited for compact spaces. It takes up minimal floor area while offering sufficient internal volume for sterilizing multiple items at once. This makes it a preferred choice in many research and clinical labs.

7: Can the Vertical Autoclave handle different types of loads, like liquids and instruments?

Yes, our Vertical Autoclave is designed to sterilize a wide range of materials, including liquids, surgical instruments, culture media, and lab glassware. With adjustable temperature and time settings, it adapts easily to various sterilization needs.

8: How durable is the construction of the Vertical Autoclave?

The Vertical Autoclave is built with high-grade stainless steel that resists corrosion and ensures a long operational life. The rugged outer body and quality internal components are designed to withstand repeated high-temperature cycles. This ensures dependable performance over time.

9: Is the Vertical Autoclave easy to maintain?

Routine cleaning and basic maintenance, like water tank refilling and gasket checks, are straightforward. The design allows easy access to internal parts for inspection. With proper care, it continues to perform efficiently with minimal servicing.
