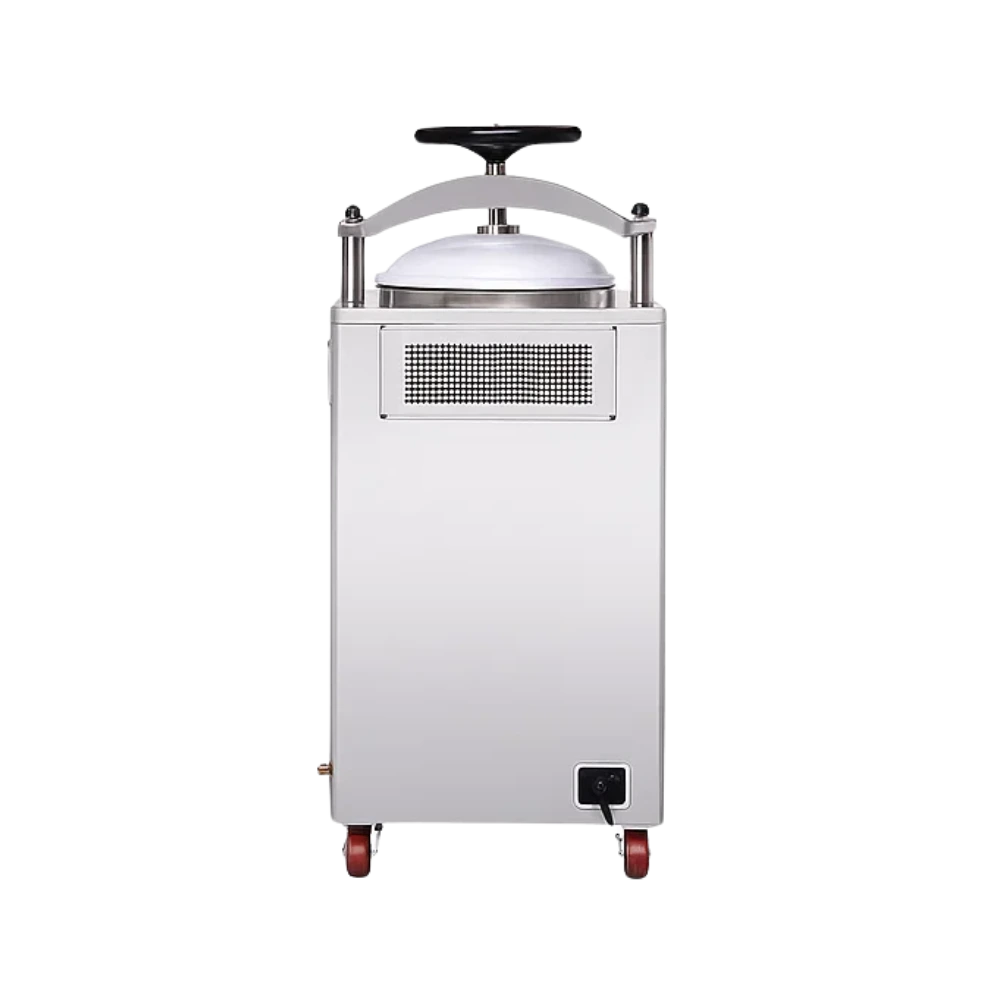

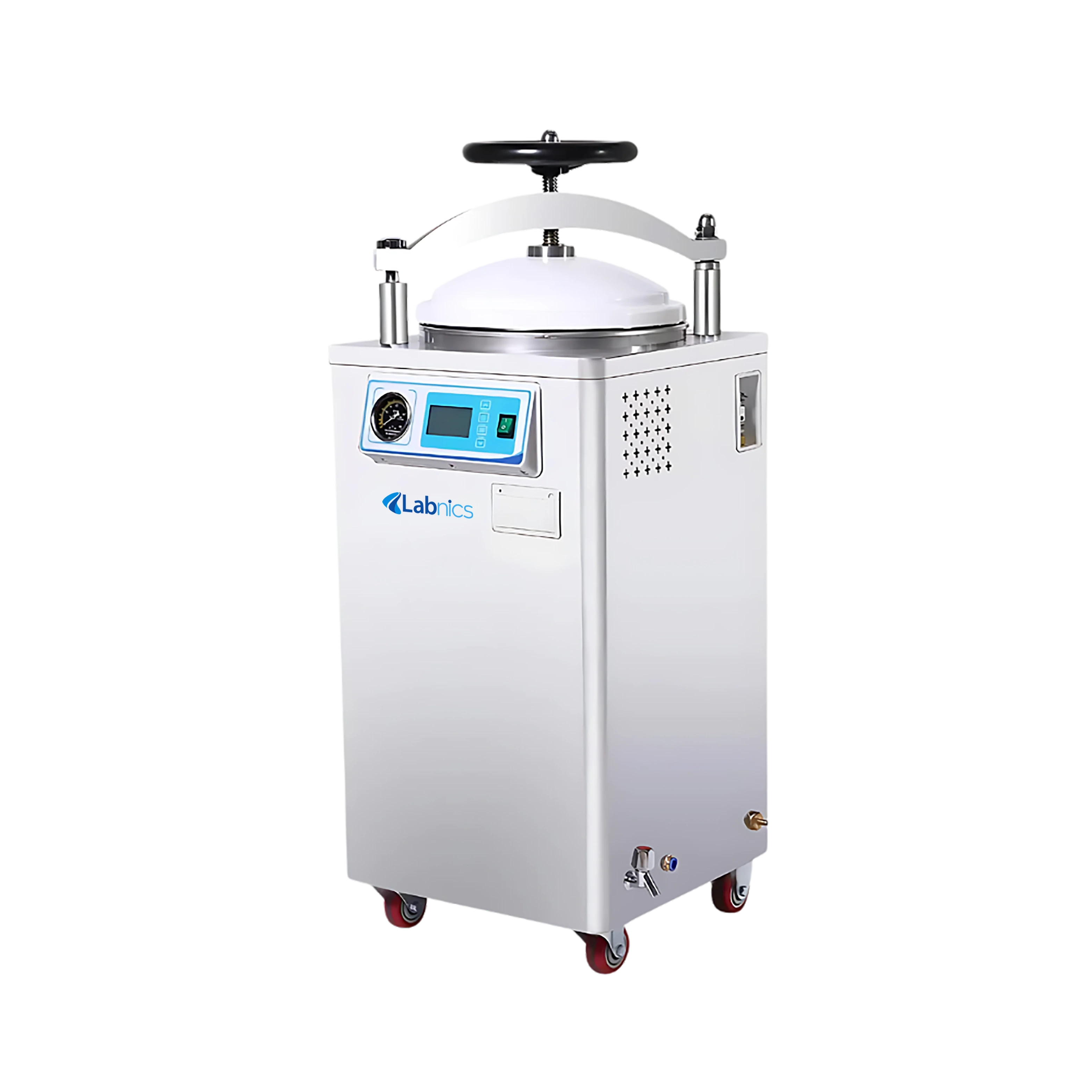

Vertical Autoclave NVA-500

Vertical Autoclave NVA-500 offers a 35L volume and a working pressure of 0.22 MPa, ensuring effective sterilization. This autoclave supports precise and smooth operation for various sterilization needs. Our unit features adjustable sterilization and drying times to accommodate different load types. It has a compact design, making it easy to place in small lab spaces. It includes a user-friendly interface and robust construction for long-lasting performance.

---

$2,638.00

Buy Now Catalog

Specifications

Volume	35L
Chamber volume	Ø350×400
Design temperature	139℃
Working temperature	134℃
Sterilization temperature	116℃ to134℃
Design pressure	0.25Mpa
Working pressure	0.22Mpa
Sterilization time range	4 to 120 min
Drying time range	0 to 240min
Bucket dimension	Ø330×320
Basket dimension	Ø320×350 (optional)
Power	3.5kW
Voltage	AC 220V, 50HZ
Packing size (L×W×H)	580×630×1130 mm
Outer dimension	480×480×1000 mm

Features

• Leakage proof system
• Anti-dry burning protection
• Safety interlock
• Microcomputer control
• Automatic overpressure control

Applications

• Vertical Autoclave NVA-500 is used for sterilizing and disinfecting biological materials. It is used in medical, research institutions, and high-quality drinking water enterprises.
