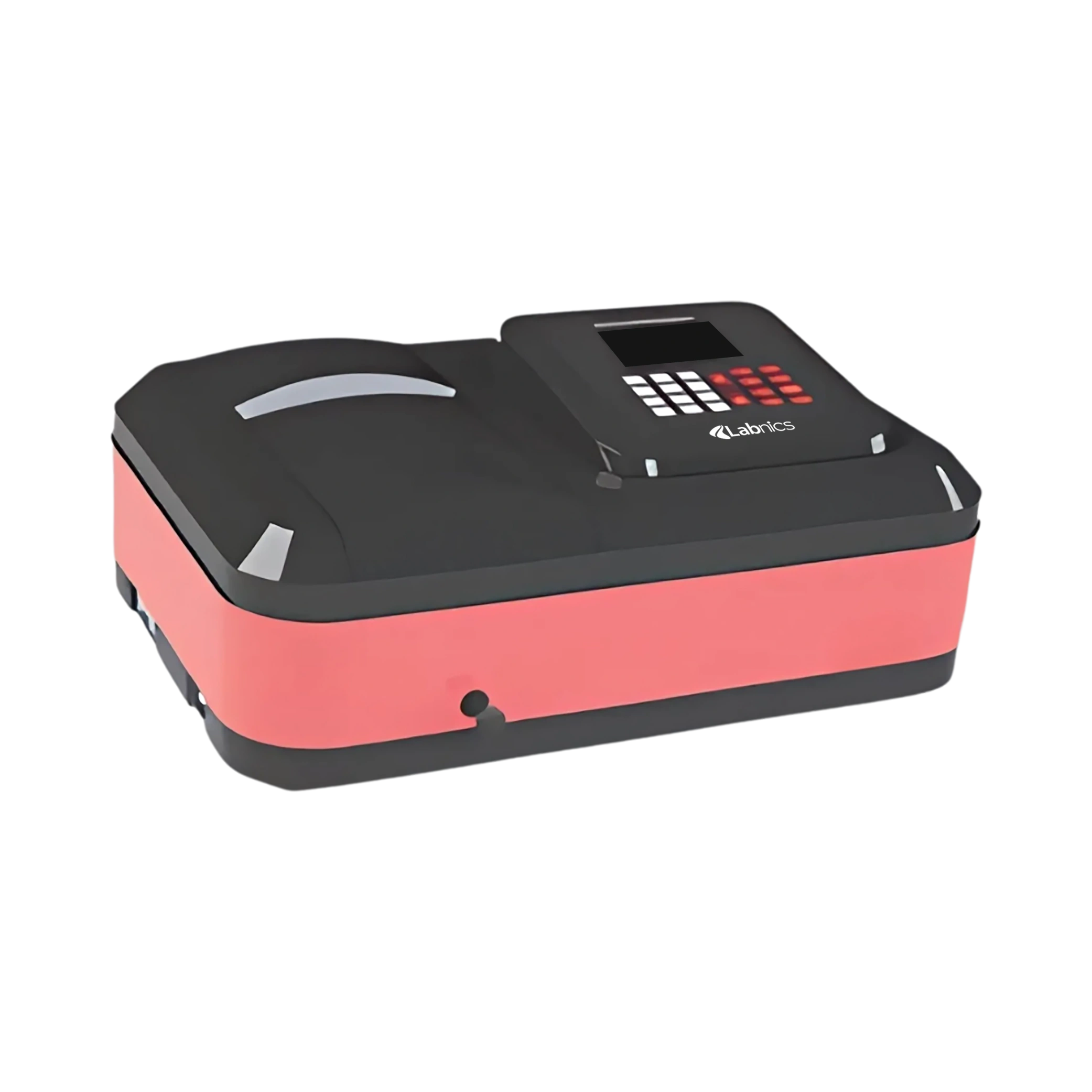

Visible Spectrophotometer NVS-403

Visible Spectrophotometer NVS-403

Visible Spectrophotometer NVS-403 offers a wavelength range of 320 to 1100 nm for precise photometric analysis. It features microcomputer control for intuitive operation and a large LCD display for clear data visibility. Our automatic wavelength setting ensures high accuracy and memory storage supports multiple datasets. This USB and printer interface provide efficient data transfer and reporting for laboratory applications.


$2,025.00

Catalog

Specifications

Wavelength Range 320 to 1100 nm
Band Width 4 nm
Wavelength Accuracy ±0.5 nm
Wavelength Repeatability 0.2 nm
Photometric Accuracy ±0.5% τ
Photometric Repeatability 0.2% τ
Stray Light ≤0.05% τ
Stability 0.001 A/h at 500 nm
Photometric Mode T, A, C, E
Wavelength Setting Automatic
Photometric Display Range -0.3 to 3 A
Display Mode LCD Screen (128 × 64 Dots)
Detector Silicon Photodiode
Light Source Tungsten Halogen Lamp
Power Consumption 120 W
Power Supply AC 220V/50Hz or 110V/60Hz
Dimensions (W × D × H) 470 × 325 × 200 mm
Weight 10.35 Kg

Features

  • Auto Filter Switching
  • High Accuracy Reading
  • Standard Curve Function
  • Large Sample Holder
  • Built-in Calibration Mode

Applications

  • Visible Spectrophotometer NVS-403 used to measure absorbance and transmittance of solutions for quantitative and qualitative analysis. It is widely applied in pharmaceutical quality control, clinical diagnostics, food testing, environmental monitoring, and research laboratories. <strong> </strong>

Standard Accessories

1 cm Glass Cuvette × 4 pcs

Dust Cover × 1 pcs

Power Line × 1 pcs

Ask Expert

FAQ for Visible Spectrophotometer NVS-403

1: How often should the Visible Spectrophotometer NVS-403 be calibrated?

Calibration should be performed regularly, ideally before any critical measurement or after extended use. This ensures the Visible Spectrophotometer NVS-403 maintains its high accuracy level and prevents deviation in absorbance or transmittance readings over time.

2: Can the Visible Spectrophotometer NVS-403 store multiple measurement data sets?

Yes, the Visible Spectrophotometer NVS-403 comes with internal memory that allows saving multiple measurement sets and standard curves. This feature reduces the need for repeated analysis and makes it easier to track previous test results for comparisons.

3: What type of cuvettes are compatible with Visible Spectrophotometer NVS-403?

Visible Spectrophotometer NVS-403 supports standard 1 cm glass cuvettes, which are included in the package. Its large sample holder is also designed to accommodate different cuvette sizes, making it versatile for various laboratory needs.

4: Is the Visible Spectrophotometer NVS-403 suitable for continuous lab usage?

Yes, the robust design, auto-wavelength setting, and high stability make it suitable for continuous operation in busy laboratories. It is ideal for quality control departments, research facilities, and academic institutions handling frequent analyses.

5: Does Visible Spectrophotometer NVS-403 allow direct printing of measurement reports?

Yes, Visible Spectrophotometer NVS-403 is equipped with a parallel printer interface for quick and accurate data printing. This reduces manual documentation errors and ensures results can be recorded in hard copy for audits and compliance.


Visible Spectrophotometer NVS-403

Visible Spectrophotometer NVS-403

Related Models Of Visible Spectrophotometer

Labnics Visible Spectrophotometer provides broad-spectrum analysis for diverse applications, ensuring reliable optical measurements. They offer flexible sample analysis with automatic cell holders for efficient testing. Our models enable real-time storage of data and curves for convenient analysis. They are equipped with a user-friendly interface, including LCD for easy operation. These units come with silicon photodiodes as detectors for precise measurement of transmittance and reflectance.
