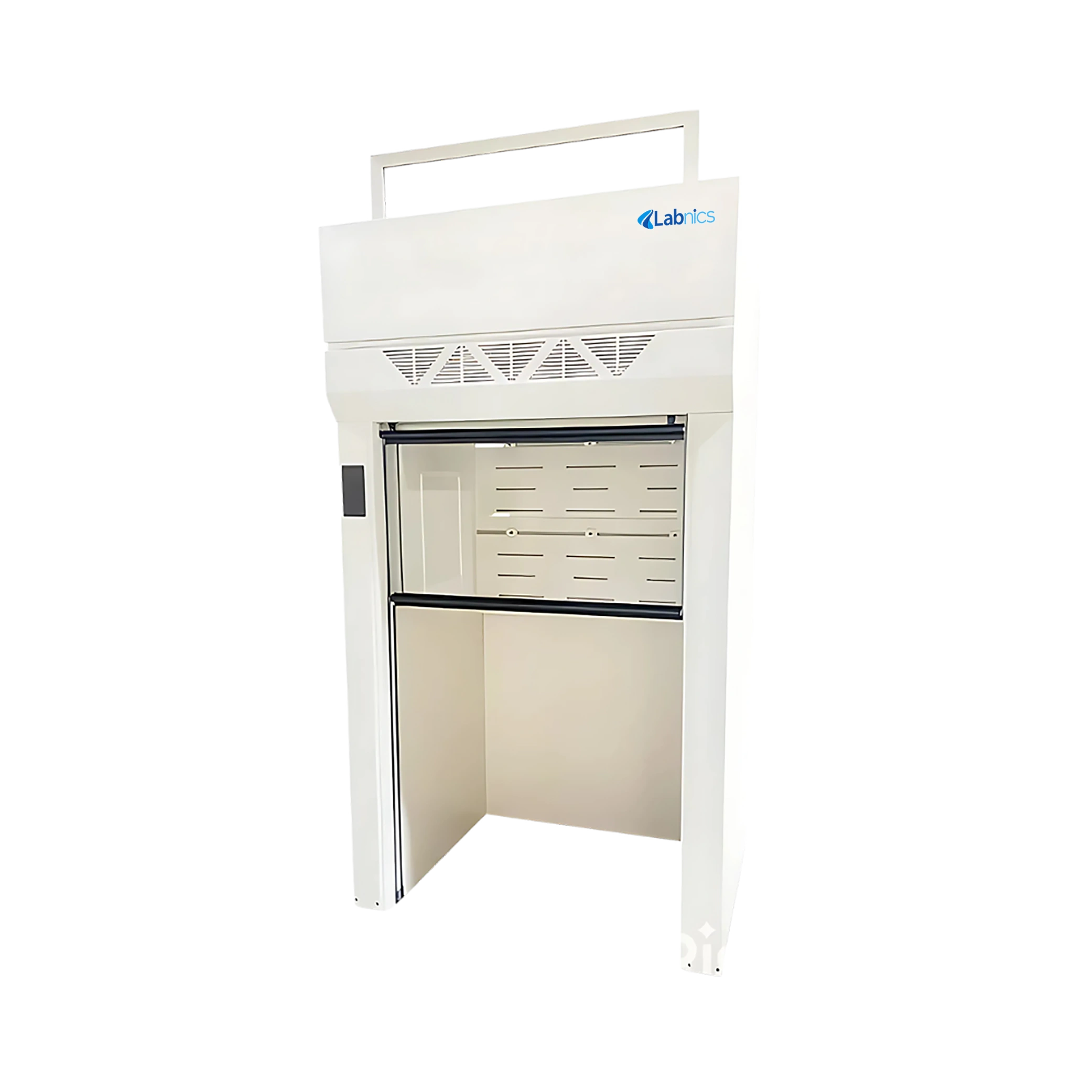

Walk-in Fume Hood NWFH-101 has its extended dimensions of 1500 × 850 × 2350 mm, it ensuring spacious operation and effective containment of hazardous fumes. It is constructed with 1.0 mm cold-rolled steel and a PP baffle. This features intelligent digital control for lighting, fan, power, sockets, and damper, along with dual 5 mm explosion-proof tempered glass sashes. Our integrated LED lamp and smooth sash mechanism enhance usability and safety during laboratory procedures.
| Baffle Material |
Polypropylene (PP) |
| Body Material |
1.0 mm cold-rolled steel with epoxy coating,
thickness 1.15 to 1.2 mm |
| Surface Treatment |
Phosphating + electrostatic epoxy powder coating, cured at 220°C |
| Control System |
Intelligent digital switch (fan, power, lighting, sockets, sterilization, damper) |
| Sash Type |
Two vertical rising sashes with 5 mm tempered explosion-proof glass |
| Sash Mechanism |
Synchronized counterweight system with aluminium alloy handle |
| Lighting |
LED purification lamp, 30W, >300 LUX brightness |
| Interior Liner |
5 mm compact-grade laminate |
| Junction Box |
Integrated with circuit board and AC contactor; suitable for 110V–230V |
| Dimensions (W × D × H) |
1500 × 850 × 2350 mm |
FAQ for Walk-in Fume Hood NWFH-101
1: What makes the NWFH-101 suitable for tall lab setups?
Its full-height dimensions allow safe ventilation and handling of oversized or floor-standing lab equipment that won't fit in standard fume hoods.
2: Can this hood accommodate large instruments like fermenters or reactors?
Yes, the spacious walk-in design is specifically tailored to house tall and bulky equipment such as fermenters, reactors, or pilot-scale machinery.
3: Is the sash mechanism easy to operate considering NWFH-101 height?
Absolutely. It features a synchronized counterweight system with an aluminum alloy handle, ensuring smooth vertical sash movement despite its large size.
4: Does the increased height affect lighting performance?
Not at all. The 30W LED purification lamp ensures bright and uniform illumination across the entire interior with >300 LUX brightness.
5: What voltage compatibility does this unit offer for different regions?
The integrated junction box supports a wide voltage range of 110V–230V, making it suitable for global installations.
6: What types of equipment are walk-in fume hoods designed for?
They are ideal for floor-mounted or tall laboratory instruments that require more vertical space than standard hoods can offer.
7: Can a walk-in fume hood handle highly corrosive substances?
Yes, they are built with chemical-resistant materials such as polypropylene and epoxy-coated steel for high durability.
8: Are walk-in fume hoods suitable for cleanroom environments?
Many models meet cleanroom compatibility standards and include HEPA/ULPA filtration options if required.
9: How do the sash mechanisms function in walk-in fume hoods?
They typically use a counterweight system that allows smooth, vertical movement for ease of access and user safety.
