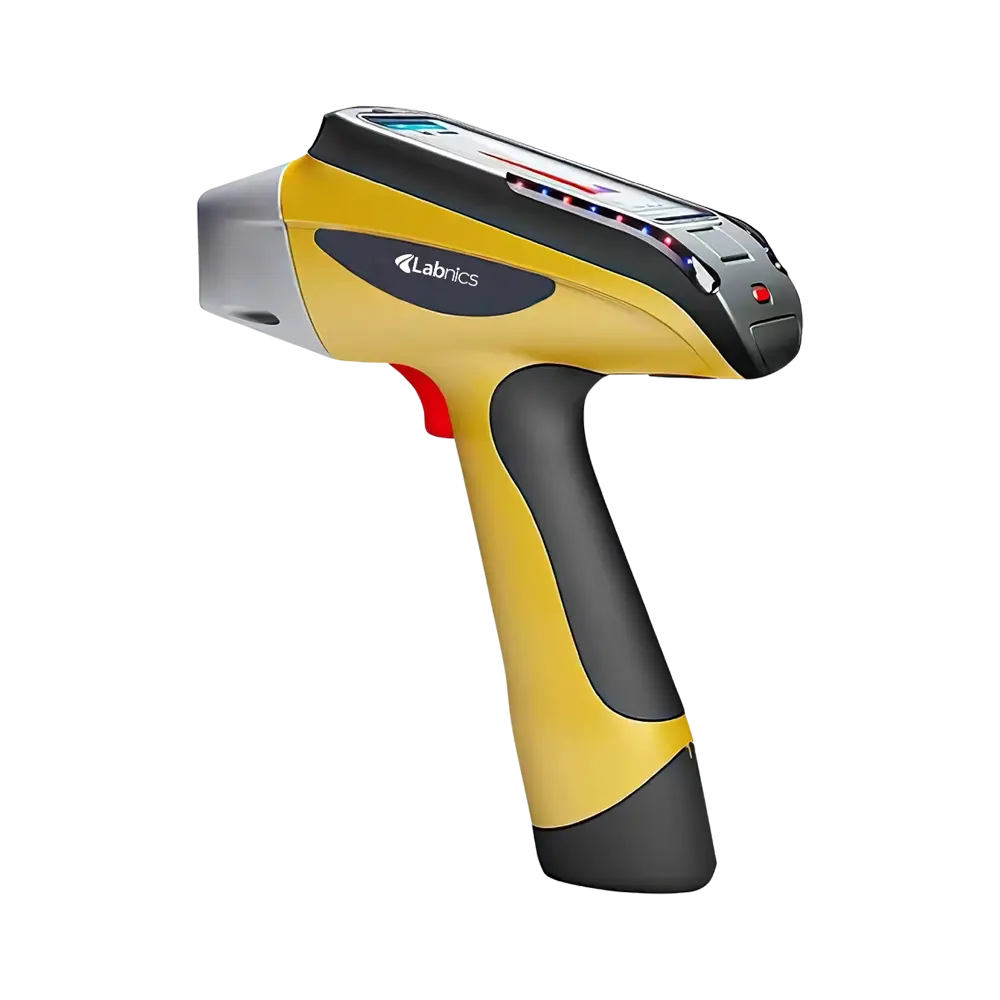

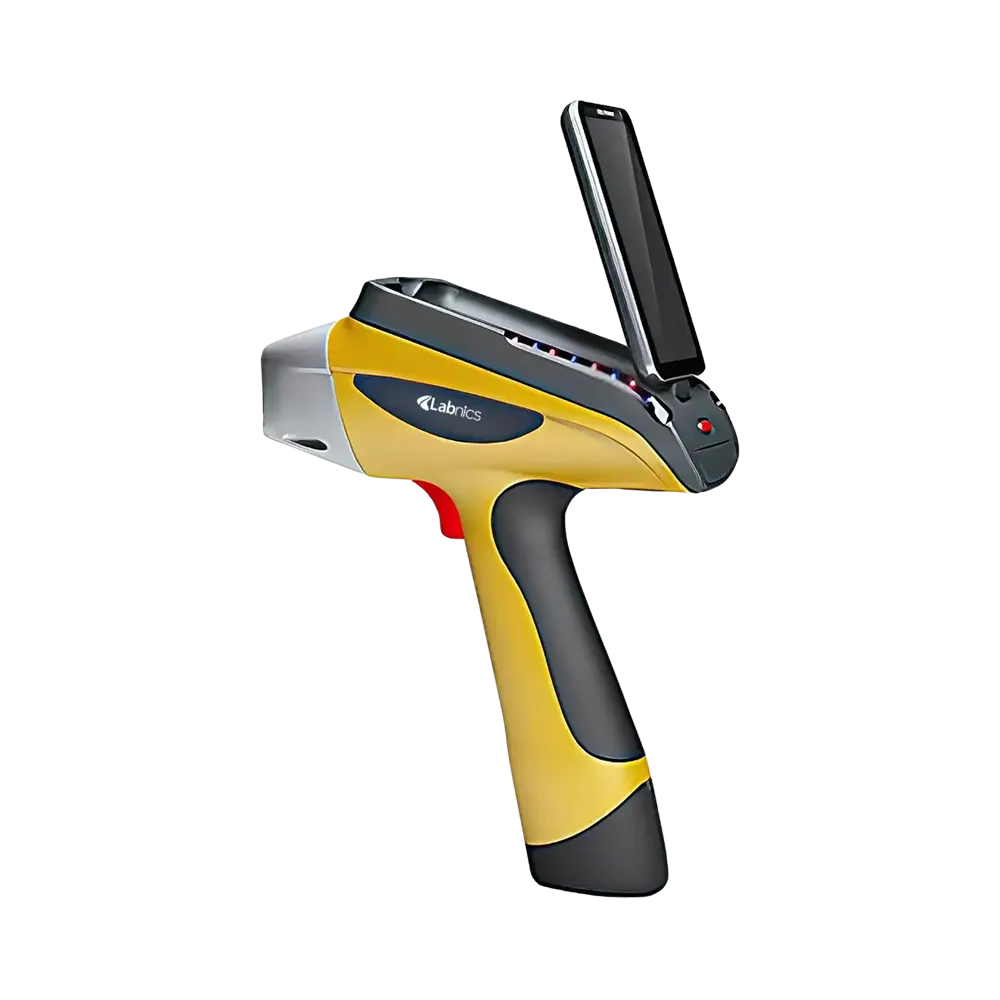

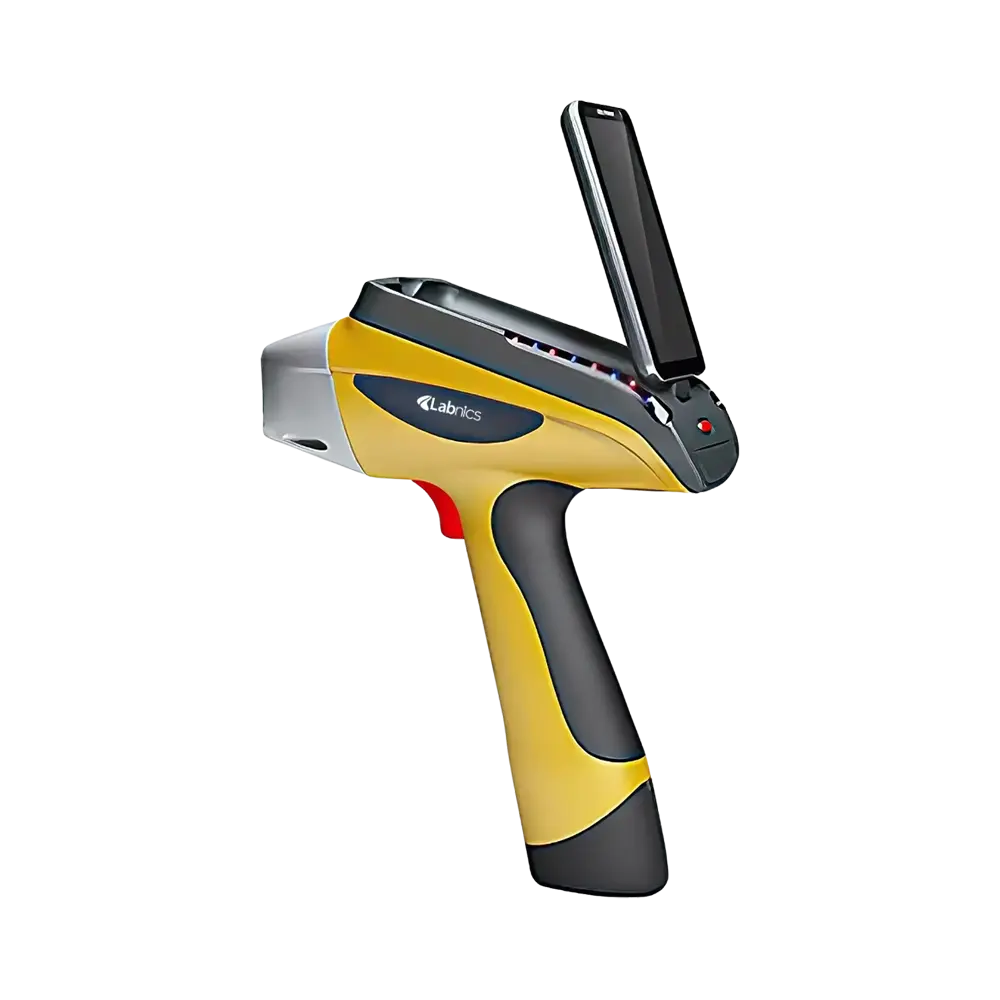

XRF Gold Analyzer NXGA-100 is designed to detect elements with atomic numbers ranging from 12 to 92. It utilizes energy-dispersive X-ray fluorescence to perform accurate elemental analysis. This unit operates reliably in ambient humidity up to 90% and in temperatures from -20°C to +50°C. It supports detection in solid, liquid, and powder forms, enabling flexible use. Our analyzer displays data on a 5-inch LCD touchscreen for clear and convenient viewing.
$22,750.00
Specifications
| Analytical method | Energy dispersive X-ray fluorescence |
| Element measuring range | Atomic numbers from 12 to 92, Magnesium to Uranium can be measured. |
| Simultaneous detector elements | Simultaneous analysis of 40 elements |
| Content range | ppm to 99.99% |
| Detection time | 1 to 60 secs |
| Detection objects | Solid, liquid, powder |
| Detector | SDD detector or fast-SDD detector (optional) |
| Detector resolution | Minimum can reach 128eV |
| Detection limit | 1 to 500ppm |
| Operating ambient humidity | ≤90% |
| Operating environmental temperature | -20°C to +50°C |
| Excitation source | 50KV/200uA- Rhodium target end window integrated miniature X-ray tube and high voltage power supply |
| Collimator and filter | Collimator diameters are 4mm and 2mm, 6 kinds of filters with automatic switching functions |
| Video system | 500W pixel high-resolution camera |
| Display screen | 5-inch transflective LCD touch screen, resolution 1080×720 |
| Data transmission | Digital multi-channel technology, SPI data transmission, quick analysis, high count rate, waterproof mini-USB, and can be connected with a desktop computer |
| Intelligent warning signal | Green light means power on Red flushing means testing Yellow flushing means problems |
| Safety mechanisms | No sample telemetry, automatic shut-off X-light tube function, standard radiation shields, thickened wall alloy test instrument |
| Microcomputer system | Customized system: CPU: 1 GB System memory: 1 GB Extended stored maximum support 32 GB Standard 4GB for mass storage data |
| Built-in system | GPS, WiFi, Bluetooth |
| Power supply | Rechargeable lithium battery, standard 9000mAh, sustainable work upto 12 hours; optional 27000 mAh superbattery with wide voltage 110V to 220V, universal adapter for recharging |
| Product dimension | 244×90×330mm |
| Packaging dimension | 590×590×300mm |
| Net weight | 1.7 kg |
| Gross weight | 19kg |
Features
Applications
Standard Accessories
12 V auto adapter
Card reader
User manual
Outlet charger
Extra batteries
USB connector
USB adapter
Waterproof transportation box
Ask Expert
FAQ for XRF Gold Analyzer NXGA-100
1: How fast does the XRF Gold Analyzer NXGA-100 provide results?
The detection time ranges from just 1 to 60 seconds, depending on the sample and required precision. This means you can get quick results when time is critical, or take longer measurements for more detailed analysis.
2: How does the XRF Gold Analyzer NXGA-100 ensure safety during operation?
The XRF Gold Analyzer includes multiple safety features like automatic shut-off of the X-ray tube when not in use and standard radiation shields. These precautions help protect the user and ensure safe operation in any setting.
3: Can the XRF Gold Analyzer NXGA-100 store and transfer data easily?
The XRF Gold Analyzer supports data storage with up to 32GB extended memory and includes built-in GPS, WiFi, and Bluetooth for seamless data management. Data can also be quickly transferred via a waterproof mini-USB port to a desktop computer.
4: How many elements can be analyzed at the same time?
The XRF Gold Analyzer can simultaneously analyze up to 40 elements, which means you don’t have to wait to test each element separately. This saves time and improves efficiency during complex sample analysis.
5: What is the best way to clean the touchscreen and XRF Gold Analyzer surface?
Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution to gently wipe the touchscreen and exterior. Avoid abrasive materials or harsh chemicals to prevent damage.
6: How long does the battery last during typical use?
The battery life of an XRF analyzer typically lasts between 6 to 8 hours of continuous use, depending on the model and settings. This allows for a full day of fieldwork without frequent recharging, ensuring consistent productivity during extended testing sessions.
7: Can the XRF analyzer store and export data?
Our XRF analyzer has built-in data storage to save test results directly on the device. It also supports easy data export through USB, Bluetooth, or Wi-Fi, enabling quick transfer to computers or cloud systems for detailed analysis and record keeping.
8: How durable is the XRF analyzer in tough environments?
The XRF analyzer is constructed with rugged materials designed to withstand harsh conditions such as dust, moisture, and rough handling, ensuring reliable performance even in challenging field environments.
9: How do I protect the XRF analyzer during storage?
Store the XRF analyzer in a clean, dry place away from extreme temperatures and humidity. Using a protective case during storage and transport can prevent physical damage and extend its lifespan.
Labnics XRF Analyzers enable accurate detection of metals and elements in seconds. They offer non-destructive testing, allowing analysis without damage or sample preparation. These units detect elements ranging from magnesium to uranium, supporting versatile applications. They feature intuitive touchscreens and simple controls for easy operation. Our XRF analyzers provide long battery life, ideal for extended field use without frequent recharging.
