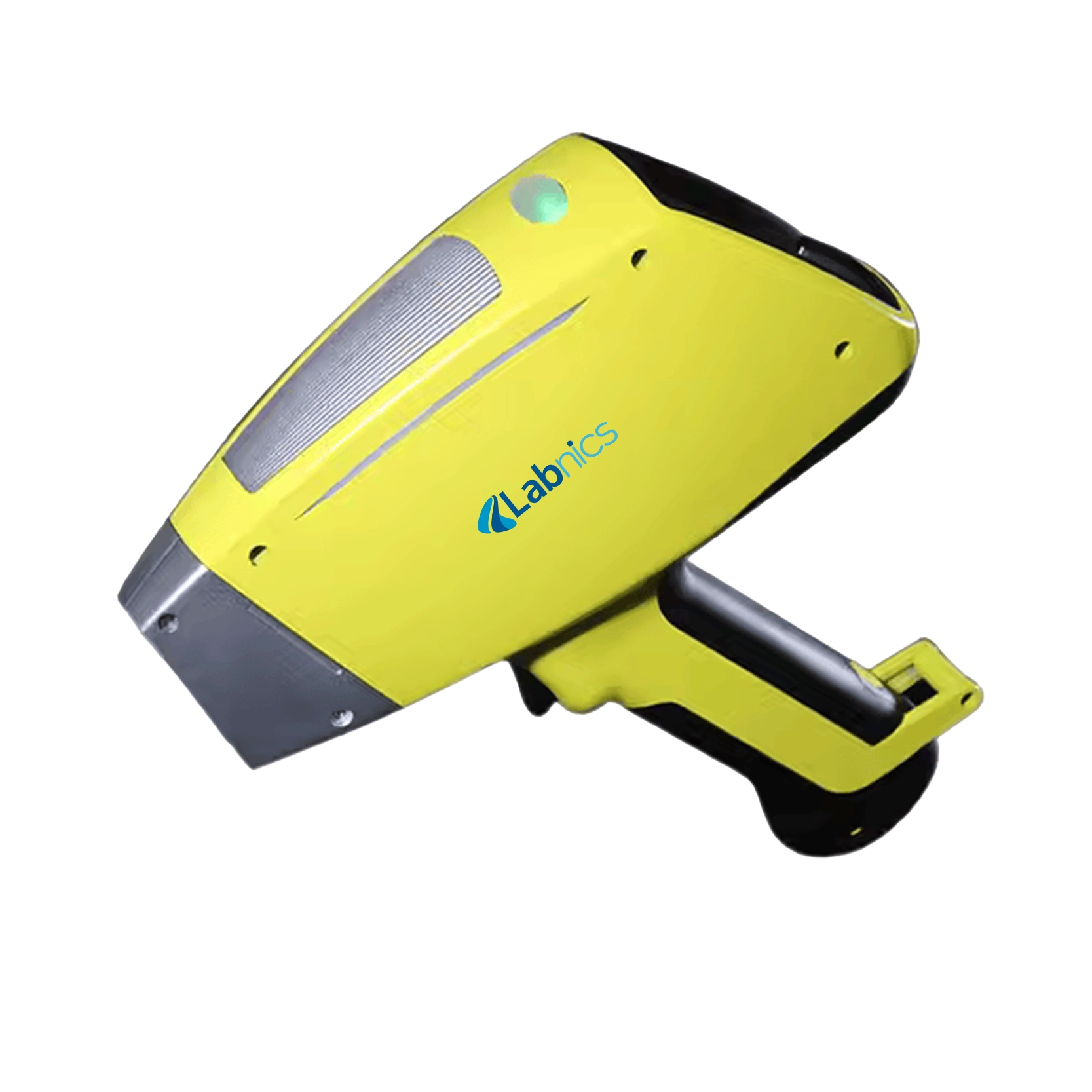

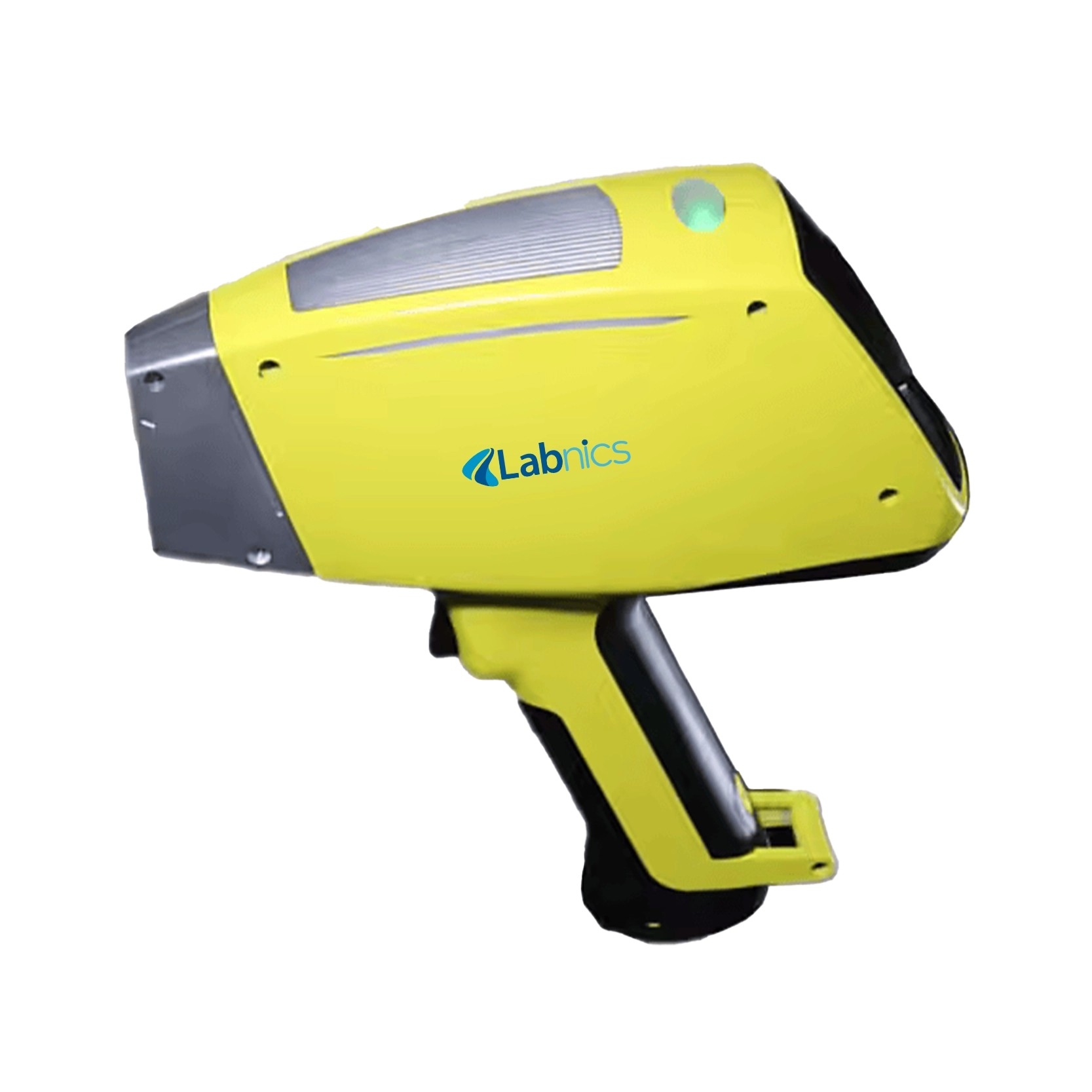

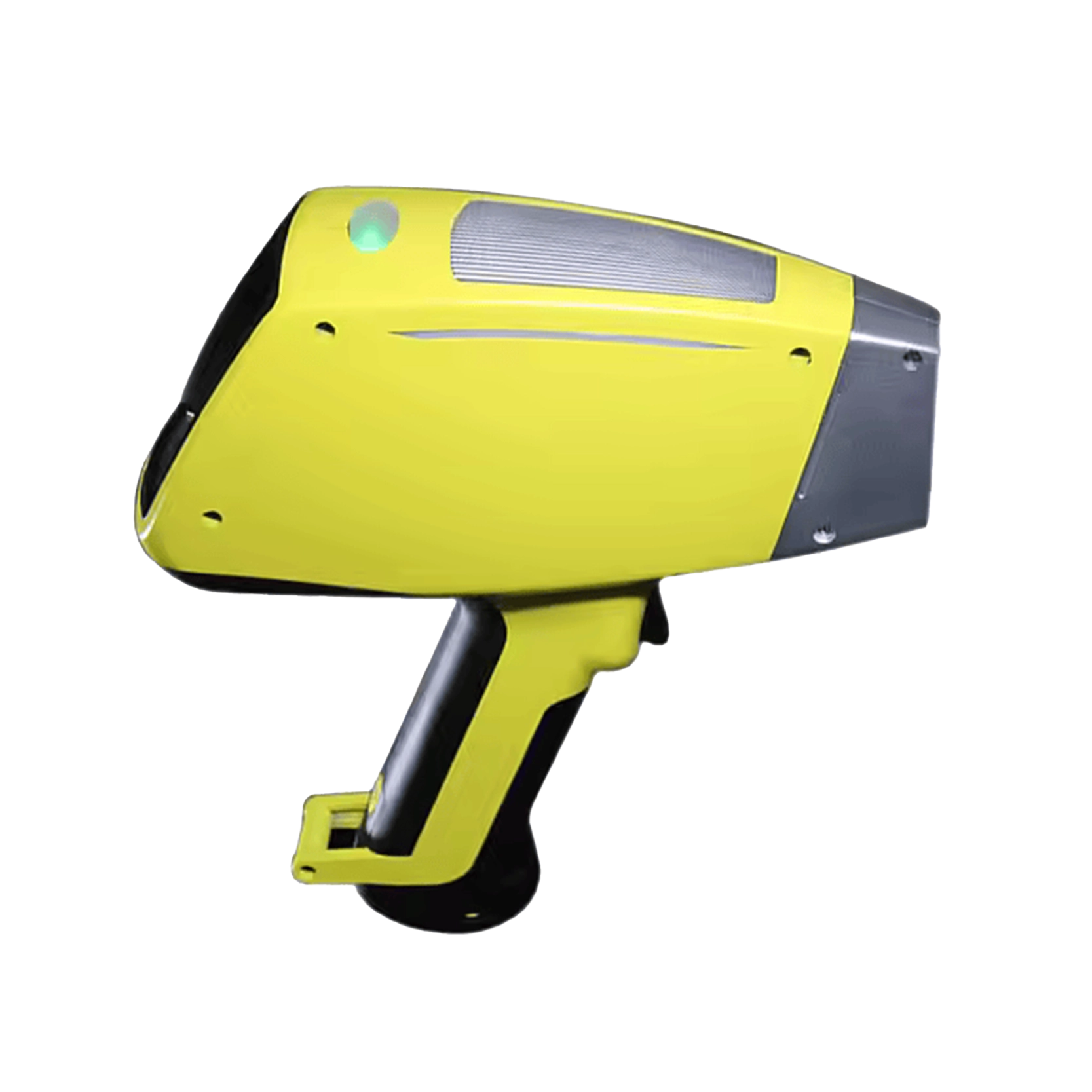

Portable XRF Spectrometer NXRF-101

Portable XRF Spectrometer NXRF-101 is capable of analyzing all elements from Magnesium to Uranium for comprehensive elemental analysis. It provides adjustable tube pressure and flow for precise control of X-ray emission. This unit improves light element detection using an ultra-short optical path for better excitation. It enables the detection of lower concentrations, achieving enhanced sensitivity. Our spectrometer is equipped with a 4.3-inch touchscreen display for intuitive operation.

---

$30,500.00

Buy Now Catalog

Specifications

Analysis method	X-ray fluorescence
Detection Range	All elements from Mg to U
Standard Analysis Range	Mg, Al, Si, P, S, Cl, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Hf, Ta, W, Au, Hg, Pb, Bi Special elements can be added
Testing Speed	Standard sample testing in 80 seconds
Excitation Source	Up to 50KV/200μA Target: Ag (standard) Au, W, Rh (optional)
Operating Temperature	0°C to 40°C (working environment)
Detector	SDD detector
Display System	Industrial resistive touch screen, 4.3-inch size
Data Processing	Professional operating system, multiple languages, customizable reports (EXCEL, PDF)
Connectivity	USB, Bluetooth, Wi-Fi, remote setup and repair
Memory	32GB
Heat Dissipation	T-shaped radiator, no need to wait for cooling
Safety	Built-in double beam technology, automatic sample sensing, radiation protection shield
Protection	Waterproof, dust-proof, shockproof suitcase
Battery Monitoring	Real-time battery monitoring, spare battery capacity check
Standby Function	Automatic standby and recovery after pick-up
Environmental Sensors	Temperature, humidity, and other sensing capabilities
Radiation Safety	Low power X-ray tube, radiation shielding, conforms to radiation protection standards
Customized Report	Add logos, addresses, test results, spectrum, etc.
Element Analysis Mode	Available for ore types (e.g., iron ore, copper, gold, etc.)
X-ray Tube Radiation	Low power (4W), mini collimator to reduce radiation
Power supply	Intelligent battery with MSBUS for real-time monitoring 8-Hour Battery Life
Dimensions (L × W × H)	254 × 79 × 280 mm
Packaging Dimensions	530 × 230 × 450 mm
Net Weight	1.6 kg (with battery)
Gross Weight	8kg

Features

• Automatic display brightness adjustment
• Power saving mode
• High-performance X-ray tube
• Temperature and humidity limit alarm
• High-speed processing chip
• Spare battery capacity check

Applications

• Portable XRF Spectrometer NXRF-101 is used for precise elemental analysis across different materials. It is commonly used in mining, environmental testing, metallurgy, and materials science.
